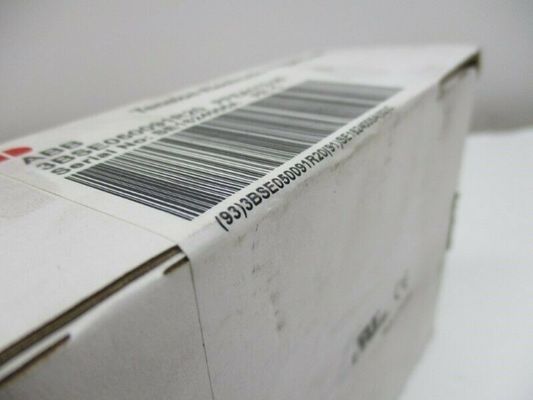

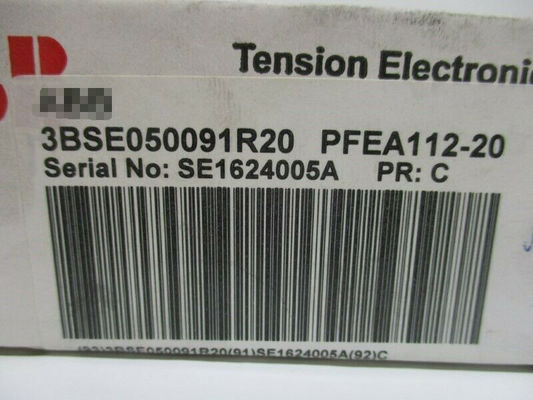

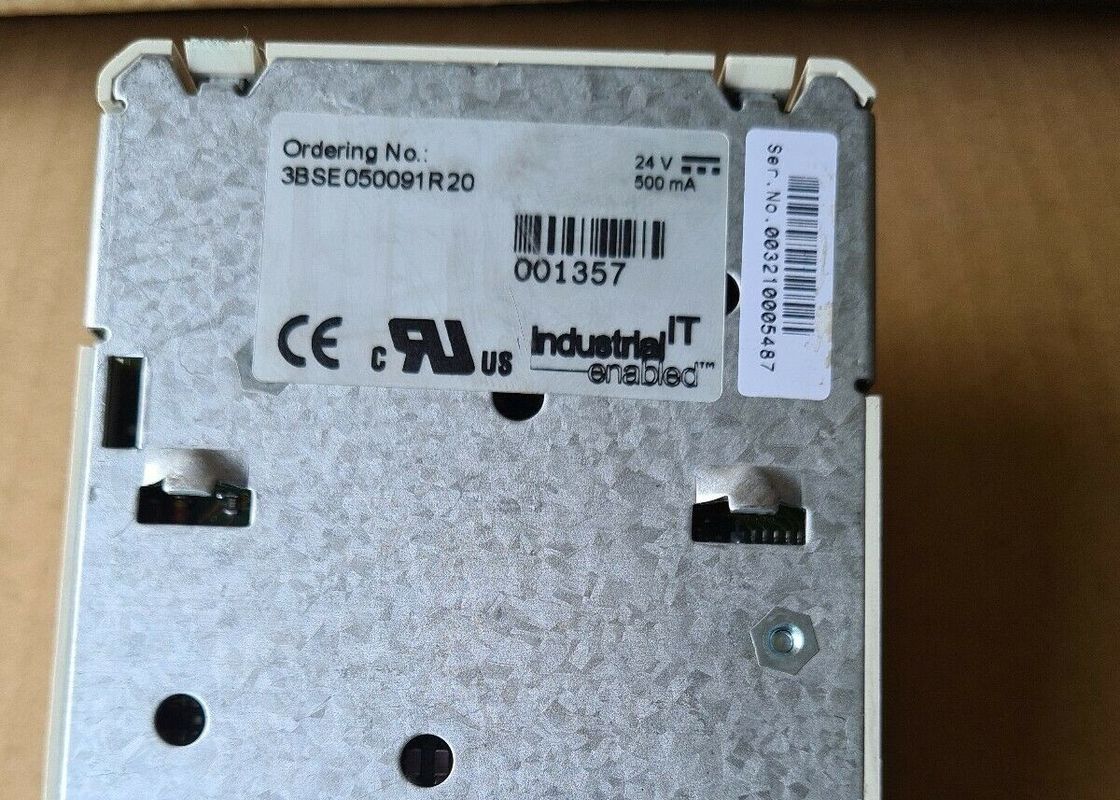

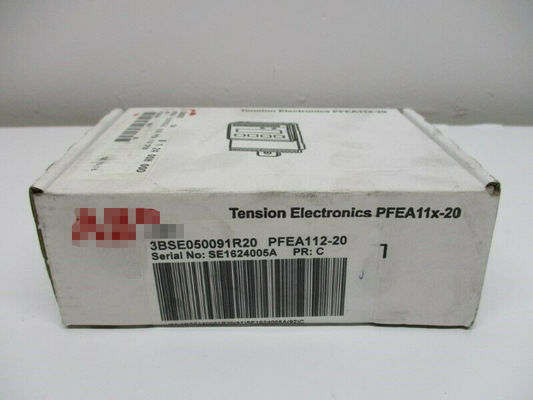

ABB 3BSE050091R20 PFEA112-20 2 Load Cells Input Voltage And Current Output A+B

ABB 3BSE050091R20 PFEA112-20 2 Load Cells Input Voltage And Current Output A+B

More information:
Simulation can be set to ON or OFF.
If simulation is set to ON, the parameters PercentOfFnomA and PercentOfFnomB will be displayed. Percent Of FnomB is not shown if Single side A has been selected in ObjectType and PercentOfFnomA is not shown if Single side B has been selected in ObjectType.

The parameter PercentOf Fnom can be set between –100 and +200 in steps of one. When simulation is set to ON, it replaces the measured value from the load cells. The value +100 means that the value is the same as load cell loaded to Fnom.

Zero set can not be used when simulation is activated. When simulation is set to ON, the red status led is lit and on the display the message “Simulation” is shown. If “ok” is pressed, the message is moved to the bottom of the Operator menu in the same way as failure and warning messages.

Presenting the ABB PFEA112-20 3BSE050091R20 tension control module—a precision-crafted solution developed specifically to meet the demands of the most challenging industrial environments. This high-performance module features a compact yet durable design, which is optimized to deliver exceptional tension control in mission-critical processes.

The module offers a flexible operating voltage range of 230 VAC ± 10%, ensuring seamless compatibility with a variety of industrial configurations and thereby enhancing operational flexibility. It also boasts an output frequency capacity of up to 20 kHz, delivering unmatched performance that enables precise adjustments to fulfill the unique requirements of different applications.

Validated through rigorous testing and aligned with global standards, the PFEA112-20 3BSE050091R20 complies with ISO 9001 and holds CE certification. These credentials serve as a guarantee of the module’s quality, safety, and reliability. As part of the well-regarded PFEA112-20 series, this module builds on the series’ reputation for superior performance in tension management solutions.

Engineered with efficiency as a core focus, the module incorporates cutting-edge technology to minimize power consumption—all without sacrificing performance. Its lightweight build simplifies integration into existing systems, helping to reduce downtime and maximize overall productivity.

To support optimal performance and extend the module’s service life, the ABB PFEA112-20 3BSE050091R20 is accompanied by comprehensive support services. These include installation guidance, routine maintenance recommendations, and access to an extensive selection of accessories and replacement parts. This dedication to customer satisfaction distinguishes ABB, ensuring that valued clients can operate with confidence.
