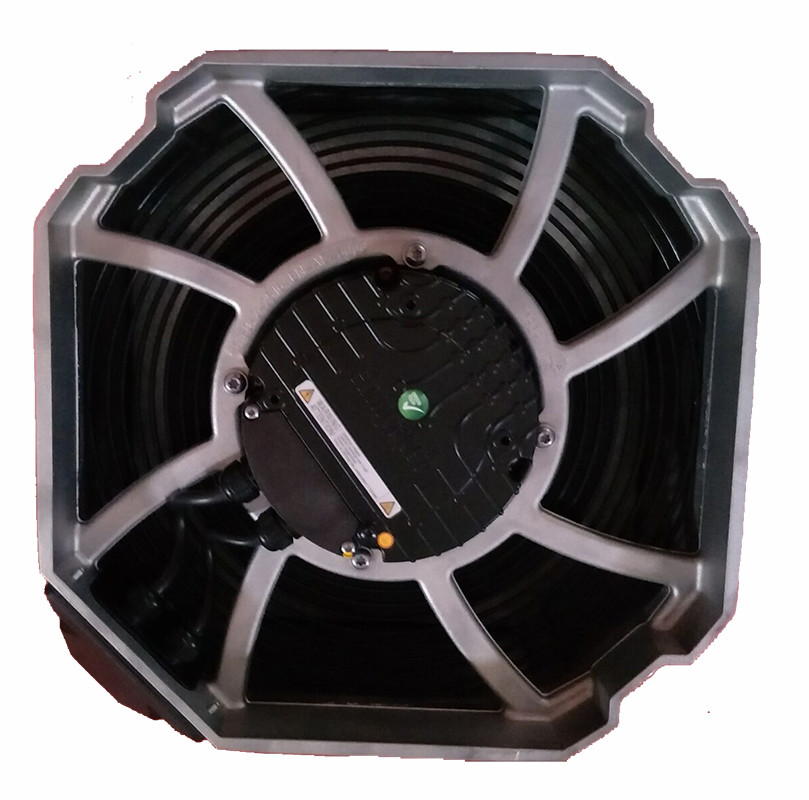

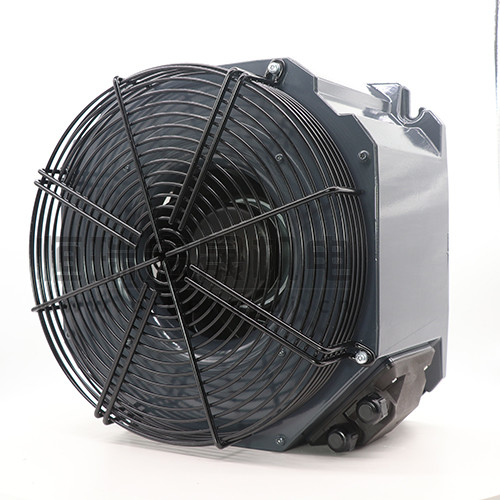

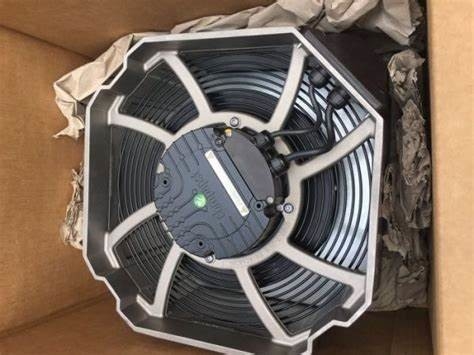

400VAC 1.15A Redundant Power Supply Module K3G250-RR17-H9 German Ebmpapst

Ebmpapst Fan Preferential supply of K3G250-RR17-H9 German ebmpapst fan 1PH8 fan

Nominal data
Type K3G250-RR17-J3
Motor M3G084-DF
Phase 3~
Nominal voltage 400VAC
Nominal voltage range VAC 380 .. 480
Frequency Hz 50/60
Method of obtaining data ml
Status prelim.
Speed (rpm) min-1 4250
Power consumption W 730
Current draw 1.15A
Min. ambient temperature °C -25
Max. ambient temperature °C 60

Technical description
Weight 0.001 kg
Size 250 mm
Motor size 84
Rotor surface Painted black
Electronics housing material Die-cast aluminum
Impeller material PA plastic
Support plate material Sheet steel, galvanized
Support bracket material Die-cast aluminum
Inlet nozzle material Sheet steel, galvanized
Guard grille material Steel, coated with pebble gray plastic (RAL 7032)
Number of blades 6
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP55
Insulation class "F"
Moisture (F) / Environmental (H)
protection class
H1
Max. permitted ambient temp.
for motor (transport/storage)
+80 °C
Min. permitted ambient temp. for
motor (transport/storage)
-40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Electrical hookup Connector with cable
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 61800-5-1; CE
Approval UL 1004-7 + 60730; EAC; CSA C22.2 No. 77 + CAN/CSA-E60730-1

Detailed ImagesCentrifugal fansCentrifugal fans from ebm-papst are available with forward- or backward-curved blades. The low-noise centrifugal fans with forward-curved blades are also supplied with a scroll housing. The centrifugal fans with backward-curved blades are designed as free-wheeling fans and do not require a scroll housing. For the centrifugal fans with external rotor motors, the motor is positioned in the impeller, resulting in optimum cooling of the motor as well as an especially compact design. The entire product line is available in both AC and GreenTech EC technology.Our serviceQuality assurance is the premise: brand new original authentic, ebm-papst original factory custom.Price concessions are the basis: as an Priscilla-level authorized agent, we have a more affordable price for your reference.Enthusiasm is the attitude: every customer is a boon to us, we will be full of passion and hospitality.Good selection plan : the technician can provide you with a more perfect fan solution, avoiding the wrong selection of the fan, thus you will no longer worry about the selection of the fan.mpact design. The entire product line is available in both AC and GreenTech EC technology.Application field
