Product Details:
Payment & Shipping Terms:
|

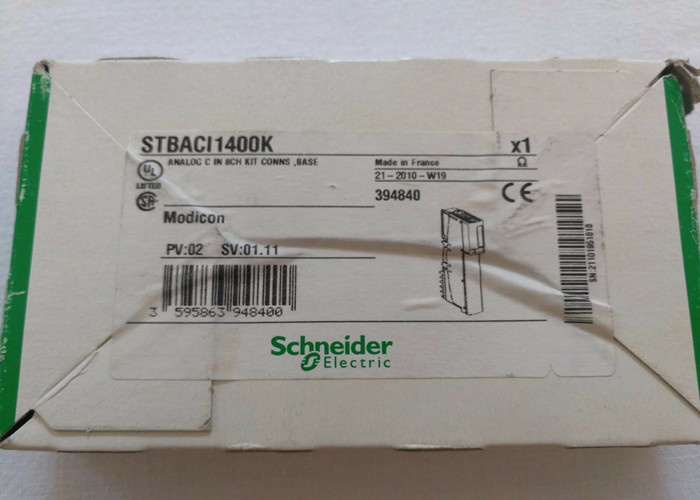

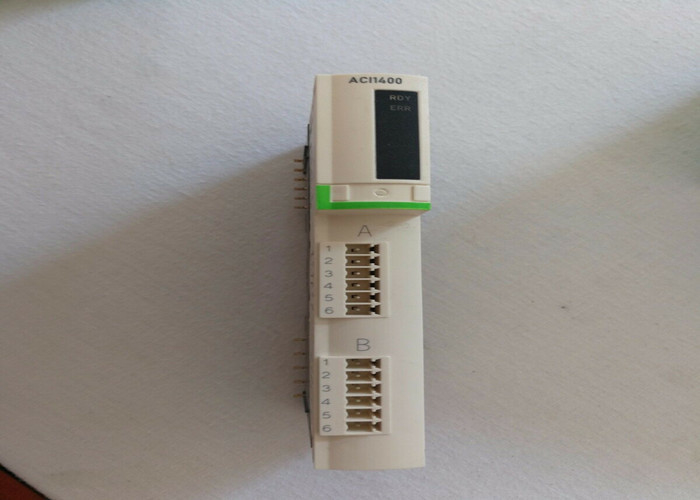

| Brand: | Schneider | Model: | STBACI1400K |
|---|---|---|---|
| Palce Of Origin: | FR | Series: | Quantum CPUs |
| Marking: | CE | Checks: | Process Control |
| Clock Frequency: | 166 MHz | Weight: | 2bl |
| High Light: | 166MHz Redundant Power Supply Module,8CH Redundant Power Supply Module,STBACI1400K Schneider Modicon Module |
||
Redundant Power Supply Module Modicon Schneider 140-CPU-651-50 140CPU65150 QUANTUM PROCESSOR
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Clock frequency: | 66 MHz |
| Number of slots: | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network |
| 31744 inputs, 31744 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Analogue I/O number: | 500 inputs, 500 outputs - distributed - per network |
| 1984 inputs,1984 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Application specific I/O: | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local |
| 4 (AS-Interface) - remote | |
| 2 (Profibus DP) - local | |
| 2 (Modbus) - RS232/485 Modbus/ASCII | |
| 2 (Modbus Plus) - local | |
| 2 (Ethernet TCP/IP) - local | |
| 2 (AS-Interface) - distributed | |
| 1 (USB) | |
| Integrated connection type: | 1 Modbus Plus |
| 2 Modbus | |
| Checks: | Process control |
| Memory description: | Internal RAM 548 kB |
| Switch function: | Slide switch communication port : ASCII/RTU/Memory |
| Slide switch memory port/off | |
| Application structure: | No auxiliary task |
| 64 interrupt tasks | |
| 64 I/O interrupt tasks | |
| 16 timer interrupt tasks | |
| 1 periodic fast task | |
| 1 cyclic/periodic master task |
Unity Processor Modicon Quantum - 548 Kb - 66 Mhz
Quantum | 140CPU31110 | Modicon | 140 CPU 311 10 | Processor 400K RAM
Unity processor Modicon Quantum - 548 kB - 66MHz Integrated connection type 1 Modbus Plus 2 Modbus Checks Process control Memory description Internal RAM 548 kB Switch function Slide switch communication port : ASCII/RTU/Memory Slide switch memory port/off Application structure No auxiliary task 64 interrupt tasks 64 I/O interrupt tasks 16 timer interrupt tasks 1 periodic fast task 1 cyclic/periodic master task Execution time per instruction 0.12...0.585 μs on word 0.12...0.585 μs Boolean 0.1...0.27 μs on fixed-point arithmetic 0.1...0.27 μs floating points Execution time for 1 K instruction 2.49 65 % Boolean and 35 % numerical 1.86 100 % Boolean System overhead 1 ms - master task 0.2 ms - fast task Bus current requirement 1800 mA Local signalling 1 LED red for communications error on the Modbus Plus port (ERROR A) 1 LED red for battery needs replacing or is not present (BAT LOW) 1 LED orange for write-protected memory (memory port) 1 LED green for CPU has passed the power-up diagnostic tests (READY) 1 LED green for CPU has been started and is solving logic (RUN) 1 LED green for communications are active on the Modbus port (Modbus) 1 LED green for communications are active on the Modbus Plus port (Modbus Plus) Electrical connection 2 female connectors, connector type: SUB-D 9 for connecting to the Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network.
