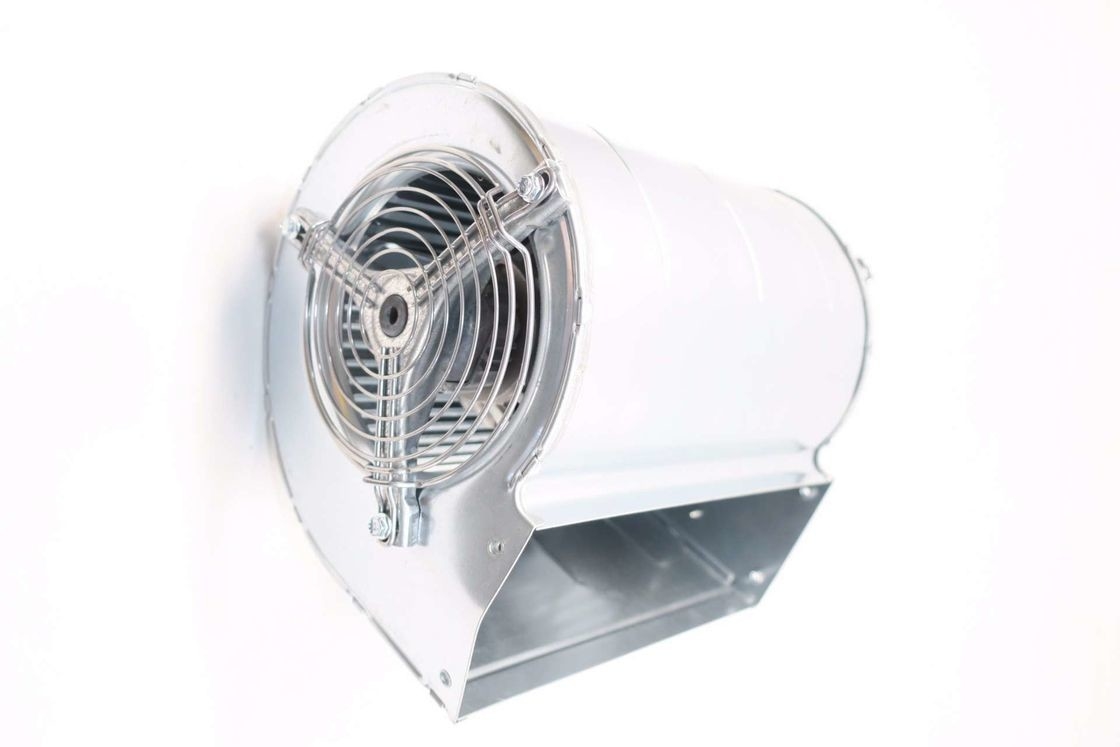

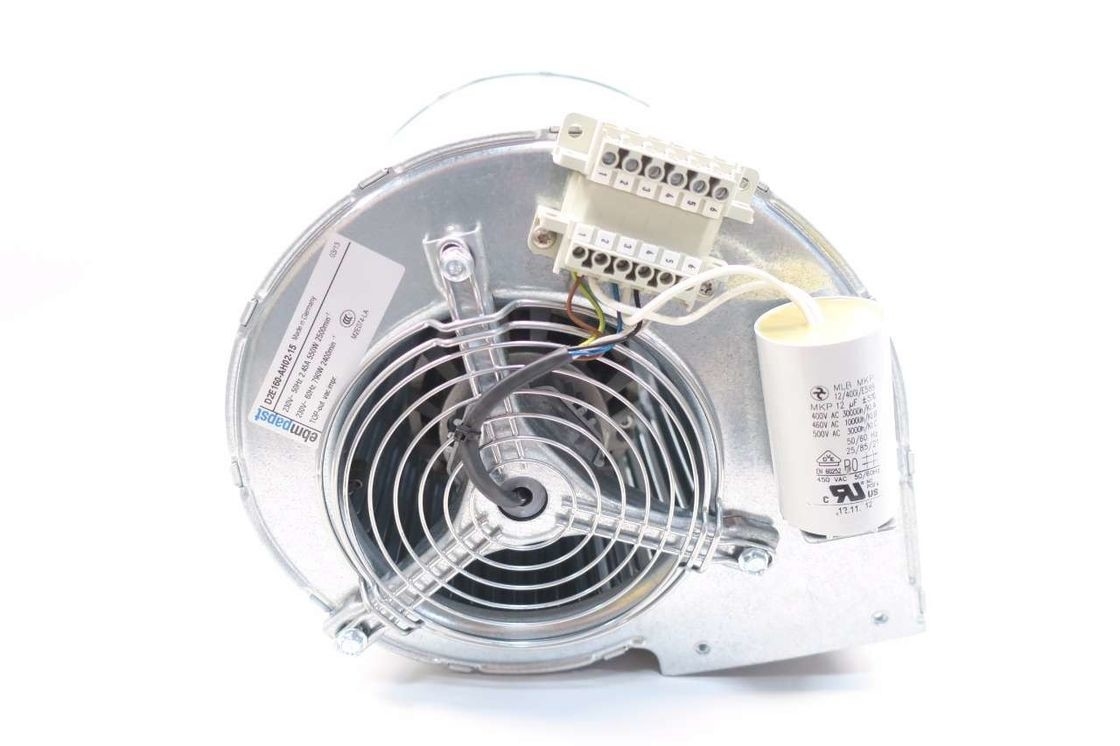

D2E160-AH02-15 Centrifugal AC Fans EBM-PAPST For ABB VFD ACS800

: Large Image : D2E160-AH02-15 Centrifugal AC Fans EBM-PAPST For ABB VFD ACS800

Product Details:

Brand Name:	EBM-PAPST
Model Number:	D2E160-AH02-15

Contact Now

Detailed Product Description

Brand1:	EBM-PAPST	Brand2:	ABB
Model 1:	D2E160-AH02-15	Model 2:	D2E160-AH02-15
Net Weight (lb):	9.000 Lb	Packaging Dimension:	30,00 X 30,00 X 18,00
Highlight:	ABB VFD Centrifugal AC Fans , ACS800 Centrifugal AC Fans , ABB VFD AC Centrifugal Blower

EBM-PAPST D2E160-AH02-15 AC Fans AC Centrifugal Blower for ABB VFD ACS800

Technical description

Weight 9.7 kg

Size 160mm

Motor size 74

Rotor surface Painted black

Impeller material Sheet steel, galvanized

Housing material Sheet steel, galvanized

Guard grille material Steel, phosphated and coated with whitealuminum plastic (RAL 9006)

Motor suspension Motor vibration-damped on both sides

Direction of rotation Counterclockwise, viewed toward rotor

Degree of protection IP00

Insulation class "F"

Moisture (F) /

Environmental (H)

protection class

F2-1

Installation position Shaft horizontal

Condensation

drainage holes

None, open rotor

Mode S1

Motor bearing Ball bearing

Touch current

according to IEC

60990 (measuring

circuit Fig. 4, TN

system)

< 0.75 mA

Electrical hookup Via terminal strip, capacitor connected

Motor protection Thermal overload protector (TOP) with

basic insulation

with cable Axial

Pollution degree 2

Protection class I (with cust

Information on surface quality

The surfaces of the products conform to the generally applicable industrial standard. The surface quality may change during the production period. This has no effect on strength, dimensional stability and dimensional accuracy.

The color pigments in the paints used perceptibly react to UV light over the course of time. This does not however in any way affect the

technical properties of the products. The product is to be protected against UV radiation to prevent the formation of patches and fading. Changes in color are not a reason for complaint and are not covered by the warranty.

NOTE

Current overshoots may occur if speed control is implemented by transformers or electronic voltage regulators (e.g. phase control). Depending on the type of installation of the device, noise and vibration may also occur in the case of phase control. Vibration can lead to bearing damage and thus premature failure.
