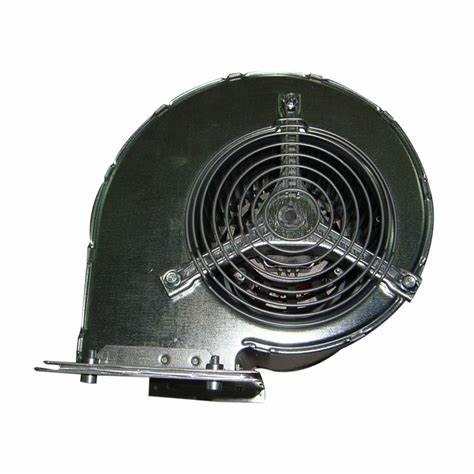

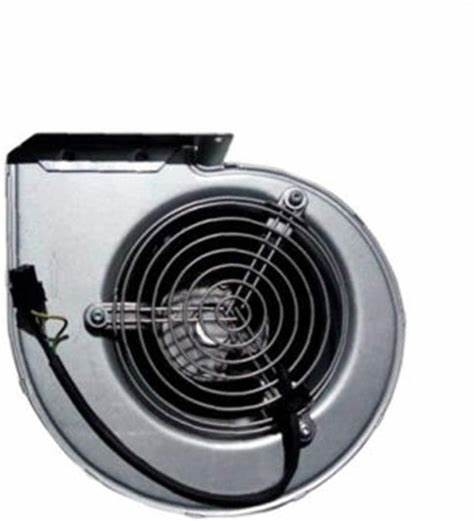

230VAC 345W Industrial Centrifugal Fan Ebmpapst D2D146-AA28-28 D2D146-AA02-22

: Large Image : 230VAC 345W Industrial Centrifugal Fan Ebmpapst D2D146-AA28-28 D2D146-AA02-22

Product Details:

Brand Name:	EBM-PAPST
Model Number:	D2D146-AA28-28

Contact Now

Detailed Product Description

Brand1:	EBM-PAPST	Brand2:	ABB
Model 1:	D2D146-AA28-28	Model 2:	D2D146-AA28-28
Net Weight (lb):	9.000 Lb	Packaging Dimension:	30,00 X 30,00 X 18,00
Highlight:	230VA Industrial Centrifugal Fan , 345W Industrial Centrifugal Fan , D2D146-AA28-28 AC Inverter Fan

Ebmpapst D2D146-AA28-28 D2D146-AA02-22 Centrifugal Fan 230VAC 345W Inverter Fan

Technical description
Motor M2D068-EC
Phase 3~
Nominal voltage / VAC 230
Frequency / Hz 50
Valid for approval/standard CE
Speed (rpm) / min-1 2050
Power consumption / W 345
Current draw / A 0.88
Min. back pressure / Pa 200
Min. ambient temperature / °C -25
Max. ambient temperature / °C 40
Starting current / A 1

Technical description:
Weight 4.8 kg
Size 146 mm
Motor size 68
Rotor surface Painted black
Impeller material Sheet steel, painted black
Housing material Sheet steel, galvanized
Guard grille material Steel, coated with gray plastic (RAL 9006)
Motor suspension Motor mounted with brackets on one side
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent
Insulation class "F"
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Hybrid bearing
Touch current according to IEC 60990 < 0.75 mA
Electrical hookup Connector with cable
Motor protection Thermal overload protector (TOP) with basic insulation
with cable Variable
Protection class I
Conformity with standards EN 60335-1; CE
Approval CSA C22.2 No. 100; UL 1004-1

PACKAGE: FAN * 1PCS

Current ABB Code New descriptions Previous type New type code

10030820 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC01-39 D4E225-CC01-56

10030668 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC07-37 D4E225-CC07-37

68870674 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-43 G2E140-PI32-43

10032971 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-10 G2E140-PI32-10

68502926 LONG-LIFE FAN, RADIAL R2E225-BD40-21 R2E225-BD40-65

3AXD50000025440 LONG-LIFE FAN, RADIAL R3G190-RC05-03 R3G190-RC05-34

3AXD50000000592 LONG-LIFE FAN, RADIAL R3G225-RD05-03 R3G225-RH17-23

10005019 LONG-LIFE FAN, AXIAL W2E143-AA09-01 W2E143-AA09-93

59023373 LONG-LIFE FAN, AXIAL W2E143-AA15-01 W2E143-AA15-94

10012171 LONG-LIFE FAN, AXIAL W2E200-HH38-06 W2E200-HH38-06

10032300 LONG-LIFE FAN, AXIAL W2E200-HH86-14 W2E200-HH86-14

3AUA0000125508 LONG-LIFE FAN, AXIAL W2E250-HL06-21 W2E250-HL06-21

3AXD50000025970 LONG-LIFE FAN, AXIAL W2E250-HJ32-01 W2E250-JH32-18

3AXD50000000514 LONG-LIFE FAN, RADIAL R2E225-RA92-17 R2E225-RA92-17

3AXD50000004019 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-16 D2D160-CE02-16

3AXD50000042302 LONG-LIFE FAN, CENTRIFUGAL RF3D-146-180 K506 DSF-2326 D3G146-AB06-10

64337891 LONG-LIFE FAN, CENTRIFUGAL D2E146-AP47-79 D2E146-AZ03-F9

3AUA0000059428 LONG-LIFE FAN, CENTRIFUGAL D3G146-AH50-16 D3G146-AH50-16

68281334 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-12 D2D160-CE02-12

64650424 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-11 D2D160-CE02-11

3AUA0000083491 LONG-LIFE FAN, AXIAL 2410ML-05W-B69-EQ3 2410ML-05W-B69-EQB

3AUA0000088115 LONG-LIFE FAN, AXIAL 2410ML-05W-B79-EQ2 2410ML-05W-B79-EQ4

3AXD50000003619 LONG-LIFE FAN, AXIAL MPN 06025MA-24Q-FT-02 MPN 06025MA-24Q-FT-02

3AUA0000085511 LONG-LIFE FAN, AXIAL D1751M24B8CP332 D1751M24B8CP332

3AUA0000077628 LONG-LIFE FAN, AXIAL D1751S24B8CP353 D1751S24B8CP353

3AUA0000123668 LONG-LIFE FAN, AXIAL KIT 06025SA-24R-BU-D1 06025SA-24R-BU-D2

3AUA0000123669 LONG-LIFE FAN, AXIAL KIT 3115RL-05W-B66-EQ2 3115RL-05W-B66-EQ5

3AUA0000123670 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B46-EQ1 3615RL-05W-B46-EQ1

3AUA0000123674 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B76-EQ2 3615RL-05W-B76-EQ3

3AUA0000123676 LONG-LIFE FAN, AXIAL KIT 4715VL-05W-B76-EQ2 4715VL-05W-B76-EQ3

68625114 LONG-LIFE FAN, RADIAL R2E190RA5016 R2E190-RA50-90

3AXD50000036608 LONG-LIFE FAN, RADIAL KIT R8I CONTROLLED FAN 175 MM FAN ASSEMBLY

3AXD50000028422 LONG-LIFE FAN, AXIAL R8I PCB FAN PCB FAN

3AXD50000179343 LONG-LIFE FAN, RADIAL KIT R4E355-RM03-05 R3G355-RB03-10

3AXD50000422975 LONG-LIFE FAN, CENTRIFUGAL KIT R2E225-RA92-17 R3G225-RE07-25

Where Used (as part of "kit")

Identifier Description Type

3AXD50000260447

ACS800 DSU MODULE FAN KIT 2; PREVENTIVE

MAINTENANCE KIT

Kit

PM6Y800DSU2D43

ACS800-X07-0790_1050-3; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSU2D45

ACS800-X07-0990_1310-5; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSU2D47

ACS800-X07-1370_1810-7; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSU3D43 ACS800-X07-1580-3; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU3D45 ACS800-X07-1970-5; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU3D47 ACS800-X07-2720-7; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU4D43 ACS800-X07-2100-3; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU4D45 ACS800-X07-2630-5; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU4D47 ACS800-X07-3630-7; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU5D43 ACS800-X07-2630-3; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU5D45 ACS800-X07-3290-5; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSU5D47 ACS800-X07-4540-7; PREV.MAINT. KIT, 6 YEARS Kit

PM6Y800DSUD33

ACS800-307-0200_0280-3; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSUD35

ACS800-307-0250_0350-5; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSUD37

ACS800-307-0340_0490-7; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSUD43

ACS800-X07-0400_0570-3; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSUD45

ACS800-X07-0490_0710-5; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y800DSUD47

N16ACS800-X07-0680_0980-7; PREV.MAINT. KIT,

6 YEARS

Kit

PM6Y80706103

ACS800-07-0610-3 IP21; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y80707507

ACS800-07-0750-7 IP21; PREV.MAINT. KIT, 6

YEARS

Kit

PM6Y80707605

ACS800-07-0760-5 IP21; PREV.MAINT. KIT, 6

YEARS
