EBMPAPST ABB AC Centrifugal Fan 160MM 230V D4E160-DA01-22 CCC

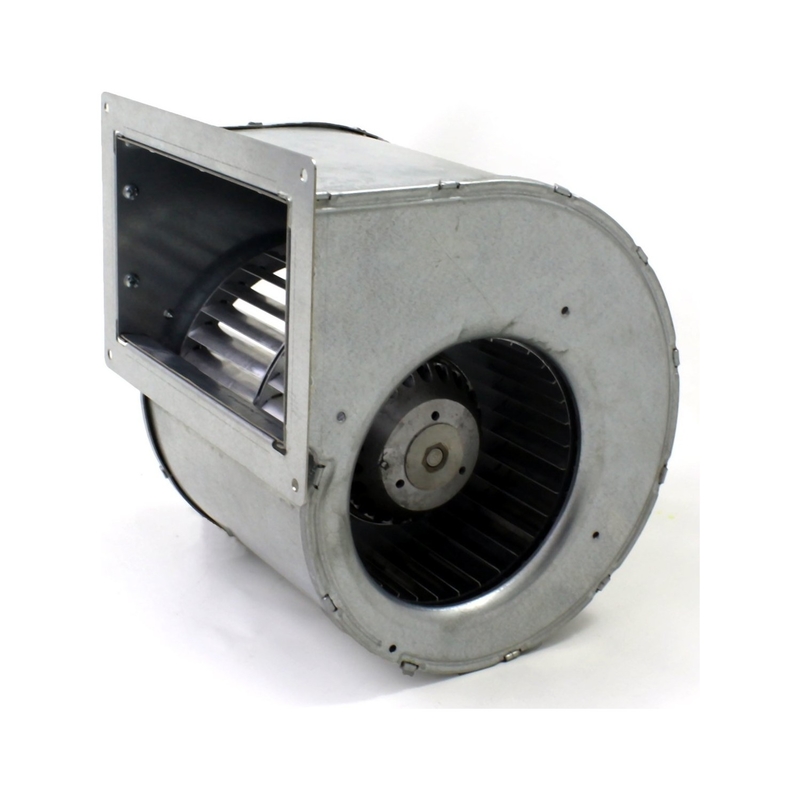

Large Image :  EBMPAPST ABB AC Centrifugal Fan 160MM 230V D4E160-DA01-22 CCC

Product Details:

Brand Name: EBMPAPST
Model Number: D4E160-DA01-22
Contact Now
Detailed Product Description
Brand1: EBM-PAPST Brand2: ABB
Model 1: D4E160-DA01-22 Model 2: D4E160-DA01-22
Net Weight (lb): 9.000 Lb Packaging Dimension: 30,00 X 30,00 X 18,00
Highlight:

ABB AC Centrifugal Fan

,

D4E160-DA01-22 AC Centrifugal Fan

,

CCC Industrial Centrifugal Fan

EBMPAPST AC entrifugal Fan 160MM, 230V Industrial FAN D4E160-DA01-22 in stock




Nominal data
Motor M4E068-DF
Phase 1~ 1~
Nominal voltage / VAC 230 230
Frequency / Hz 50 60
Method of obtaining
data
fa fa
Valid for approval/
standard
CE CE
Speed (rpm) / min-1 1200 1200
Power consumption / W 117 140
Current draw / A 0.51 0.62
Capacitor / µF 3 3
Capacitor voltage / VDB 450 450
Min. back pressure / Pa 0 0
Min. ambient
temperature / °C
-25 -25
Max. ambient
temperature / °C
60 40
Starting current / A 0.72 0.72



Technical description
Weight 4 kg
Motor size 68
Size 160 mm
Impeller material Sheet steel, galvanized
Housing material Sheet steel, galvanized
Motor suspension Motor mounted on brackets for one-sided vibration damping
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44 / installation- and position-dependent
Insulation class "B"
Moisture (F) / Environmental (H) protection class H0 - dry environment
Max. permitted ambient temp. for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for motor (transport/storage) - 40 °C
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) < 0,75 mA
Motor protection Thermal overload protector (TOP) internally connected
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1 / CE
Approval EAC / CCC




Current ABB Code New descriptions Previous type New type code
10030820 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC01-39 D4E225-CC01-56
10030668 LONG-LIFE FAN, CENTRIFUGAL D4E225-CC07-37 D4E225-CC07-37
68870674 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-43 G2E140-PI32-43
10032971 LONG-LIFE FAN, CENTRIFUGAL G2E140-PI32-10 G2E140-PI32-10
68502926 LONG-LIFE FAN, RADIAL R2E225-BD40-21 R2E225-BD40-65
3AXD50000025440 LONG-LIFE FAN, RADIAL R3G190-RC05-03 R3G190-RC05-34
3AXD50000000592 LONG-LIFE FAN, RADIAL R3G225-RD05-03 R3G225-RH17-23
10005019 LONG-LIFE FAN, AXIAL W2E143-AA09-01 W2E143-AA09-93
59023373 LONG-LIFE FAN, AXIAL W2E143-AA15-01 W2E143-AA15-94
10012171 LONG-LIFE FAN, AXIAL W2E200-HH38-06 W2E200-HH38-06
10032300 LONG-LIFE FAN, AXIAL W2E200-HH86-14 W2E200-HH86-14
3AUA0000125508 LONG-LIFE FAN, AXIAL W2E250-HL06-21 W2E250-HL06-21
3AXD50000025970 LONG-LIFE FAN, AXIAL W2E250-HJ32-01 W2E250-JH32-18
3AXD50000000514 LONG-LIFE FAN, RADIAL R2E225-RA92-17 R2E225-RA92-17
3AXD50000004019 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-16 D2D160-CE02-16
3AXD50000042302 LONG-LIFE FAN, CENTRIFUGAL RF3D-146-180 K506 DSF-2326 D3G146-AB06-10
64337891 LONG-LIFE FAN, CENTRIFUGAL D2E146-AP47-79 D2E146-AZ03-F9
3AUA0000059428 LONG-LIFE FAN, CENTRIFUGAL D3G146-AH50-16 D3G146-AH50-16
68281334 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-12 D2D160-CE02-12
64650424 LONG-LIFE FAN, CENTRIFUGAL D2D160-CE02-11 D2D160-CE02-11
3AUA0000083491 LONG-LIFE FAN, AXIAL 2410ML-05W-B69-EQ3 2410ML-05W-B69-EQB
3AUA0000088115 LONG-LIFE FAN, AXIAL 2410ML-05W-B79-EQ2 2410ML-05W-B79-EQ4
3AXD50000003619 LONG-LIFE FAN, AXIAL MPN 06025MA-24Q-FT-02 MPN 06025MA-24Q-FT-02
3AUA0000085511 LONG-LIFE FAN, AXIAL D1751M24B8CP332 D1751M24B8CP332
3AUA0000077628 LONG-LIFE FAN, AXIAL D1751S24B8CP353 D1751S24B8CP353
3AUA0000123668 LONG-LIFE FAN, AXIAL KIT 06025SA-24R-BU-D1 06025SA-24R-BU-D2
3AUA0000123669 LONG-LIFE FAN, AXIAL KIT 3115RL-05W-B66-EQ2 3115RL-05W-B66-EQ5
3AUA0000123670 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B46-EQ1 3615RL-05W-B46-EQ1
3AUA0000123674 LONG-LIFE FAN, AXIAL KIT 3615RL-05W-B76-EQ2 3615RL-05W-B76-EQ3
3AUA0000123676 LONG-LIFE FAN, AXIAL KIT 4715VL-05W-B76-EQ2 4715VL-05W-B76-EQ3
68625114 LONG-LIFE FAN, RADIAL R2E190RA5016 R2E190-RA50-90
3AXD50000036608 LONG-LIFE FAN, RADIAL KIT R8I CONTROLLED FAN 175 MM FAN ASSEMBLY
3AXD50000028422 LONG-LIFE FAN, AXIAL R8I PCB FAN PCB FAN
3AXD50000179343 LONG-LIFE FAN, RADIAL KIT R4E355-RM03-05 R3G355-RB03-10
3AXD50000422975 LONG-LIFE FAN, CENTRIFUGAL KIT R2E225-RA92-17 R3G225-RE07-25


















OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-
