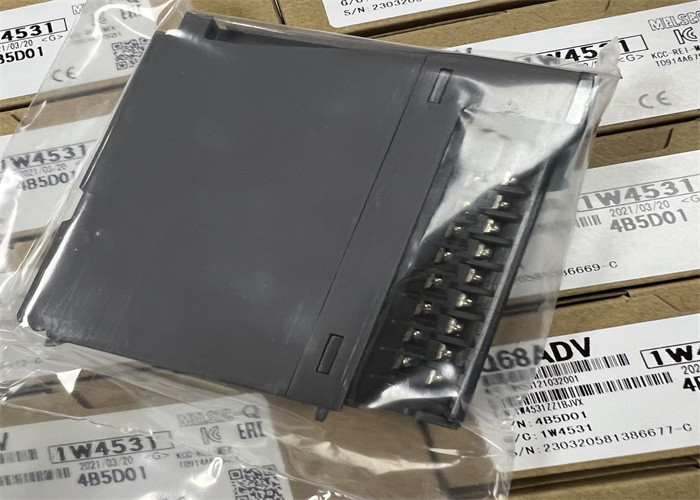

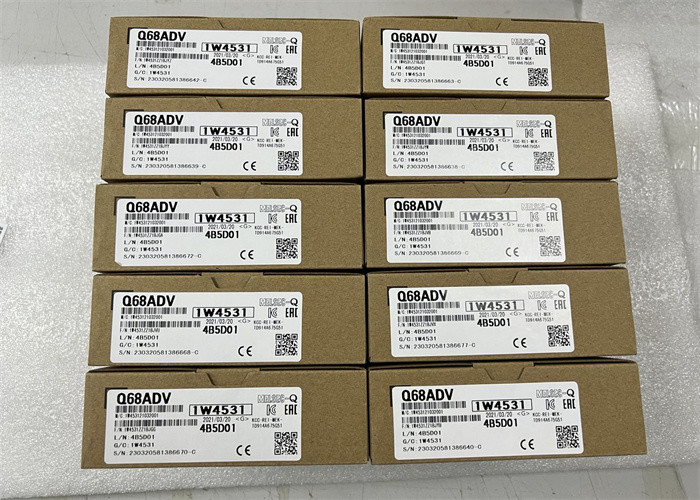

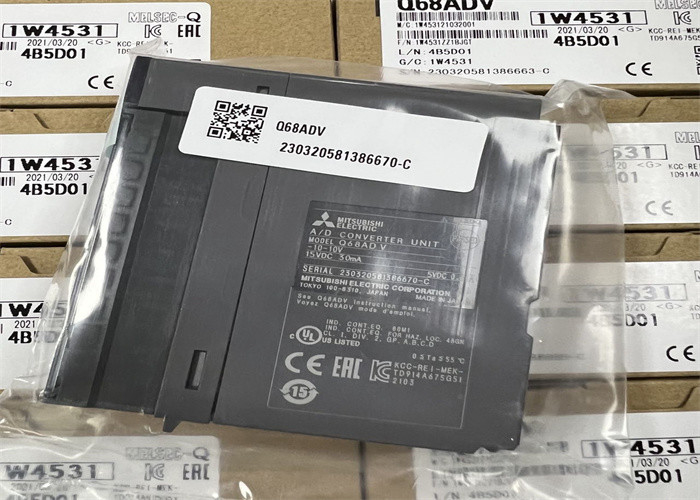

Q68ADV Mitsubishi PLC Power Supply Module 8 K Steps Program Capacity

specifications:

• Manufacturer: Mitsubishi Electric

• Product No : Q68ADV

• Product type : Analog To Digital Converter Module

• Analog input points: 8 points (8 channels)

• Analog input Voltage : –10 to 10 V DC (Input resistance value 1M )

• Digital output : 16-bit signed binary (normal resolution mode: –4096 to 4095, high resolution mode: –12288 to 12287, –16384 to 16383

• Conversion speed : 80 s/channel (When there is temperature drift, the time calculated by adding 160 s will be used regardless of the number of channels used)

• Absolute maximum input : Voltage : ± 15 V, Current : ± 30 mA

• Insulation method : Between the I/O terminal and programmable controller power supply : Photocoupler insulation Between channels : Non-insulated

• Dielectric withstand voltage : Between the I/O terminal and programmable controller power supply: 500VAC for 1 minute

• Insulation resistance : Between the I/O terminal and programmable controller power supply: 500VDC 20M or more

• I/O occupied points : 16 points (I/O assignment: Intelligent 16 points)

• Connection terminals : 18-point terminal block

• Applicable wire size : 0.3 to 0.75 mm2

• Applicable solderless terminal : R1.25-3 (A solderless terminal with sleeve cannot be used)

• Internal current consumption (5 VDC) : 0.64 A

• Weight : 0.19 Kg

• Shipping Weight : 1.5 Kg
