MHM-340-CBNS-0000 EMERSON MH Servo Motor 460VAC Metric Mounting Flange

Name: MHM-340-CBNS-0000 EMERSON MH Servo Motor 460VAC Metric Mounting Flange
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MHM-340-CBNS-0000
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	EMERSON
Certification:	CE
Model Number:	MHM-340-CBNS-0000

Detail Information

Place of Origin:

Japan

Brand Name:

EMERSON

Certification:

Model Number:

MHM-340-CBNS-0000

Brand:

Emerson

Country Of Origin:

Japan

Mounting:

Metric

Warranty:

1 Years

Voltage:

460 VAC

Series:

Control Techniques

Net Weight:

12.4 Lbs

Color:

White/Black/Grey

Highlight:

High Light

Highlight:

EMERSON MH servo motor 460VAC

industrial servo motor metric flange

MHM-340-CBNS servo motor 460V

Trading Information

Minimum Order Quantity:

Price:

Negotiation

Packaging Details:

New Original Box

Delivery Time:

3-5 working day

Payment Terms:

T/T

Supply Ability:

Product Description

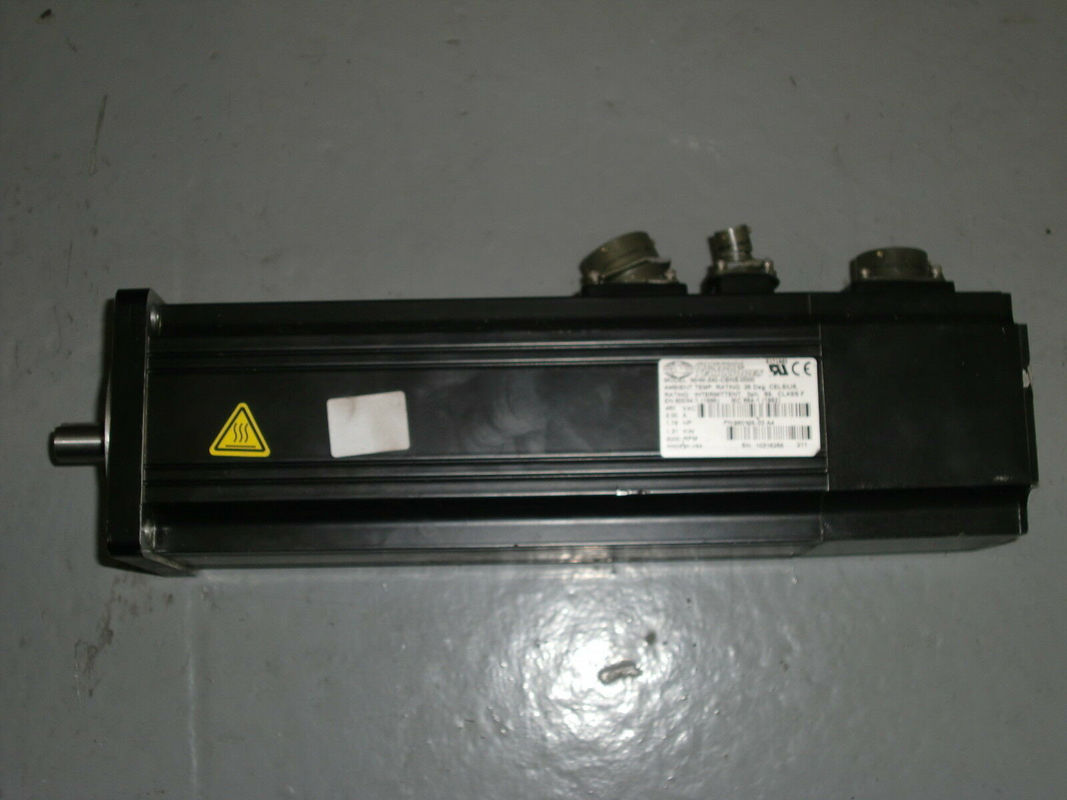

MHM-340-CBNS-0000 EMERSON MH Servo Motor 460VAC Metric Mounting Flange

Quick Details:

MHM-340-CBNS-0000
MH SERVO MOTOR
460VAC
3" FRAME
METRIC MOUNTING FLANGE
46 LBS-IN CONT. TORQUE
3000 RPM MAX SPEED
MS CONNECTORS
24VDC BRAKE

Description
Motors, MH Series
Item # MHM-340-CBNS-0000: MH 3-inch SERVO MOTOR with Metric Mounting

MH Series Details

IP65 Rating
Maximum operating speed of up to 4000 RPM
Available with both English and metric flanges
Optional brake configurations
Standard encoder resolution of 2048

The MH motor is a low-inertia model, ideally matched for operation with MDS systems using 460 VAC input. It effectively addresses applications with torque requirements ranging from 16 lb-in to 748 lb-in. Utilizing neodymium magnets, MH motors achieve an exceptional torque-to-inertia ratio, providing a size advantage over comparable motors from competing brands.

Specifications

Manufacturer Part Number: 960125-33
Manufacturer: Control Techniques
Product Series: MH
Family Series: Control Techniques Motors, MH Series
Description: MH 3-inch Servo Motor with Metric Mounting Flange, 46 lb-in Continuous Torque, MS Connectors, 480VAC, 3000 RPM Maximum
Voltage: 460 VAC
Maximum Speed: 3,000 RPM
Mounting: Metric
Encoder Type: Incremental
Encoder Bit Resolution: 2048
Brake: Included
Protection Rating: IP65
Approvals: CE, cUL Recognized
Net Weight: 12.4 lbs
Gross Weight: 12.4 lbs
