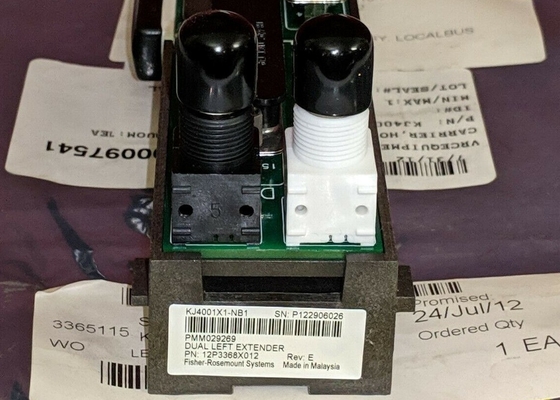

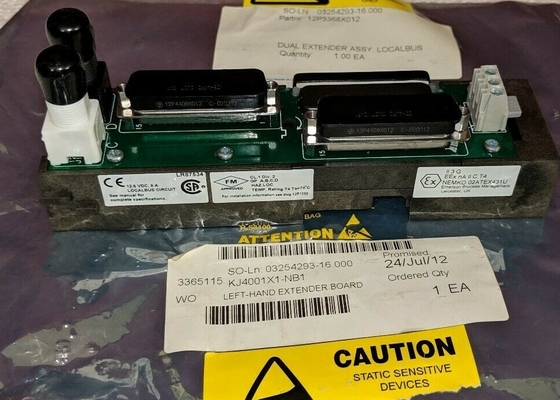

EMERSON KJ4001X1-NB1 Cable Extender Dual Left Extender 8 Amp 12.6 VDC Localbus
Product Details:
| Place of Origin: | USA |
| Brand Name: | EMERSON |
| Certification: | CE |
| Model Number: | KJ4001X1-NB1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5 working day |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Brand: | EMERSON | Country Of Origin: | USA |
|---|---|---|---|
| Model: | KJ4001X1-NB1 | Warranty: | 1 Years |
| Dimension: | 5.1 Cm X 17.8 Cm X 12.7 Cm | Weight: | 0.3 Kg |
| LocalBus Power: | 12 VDC (8A) | Montagehöhe: | 2,5 Bis Reichweite3 M |
| Highlight: | KJ4001X1-NB1 Cable Extender,Localbus Dual Left Extender,8 Amp Dual Left Extender |
||
Product Description
EMERSON KJ4001X1-NB1 Cable Extender Dual Left Extender 8 Amp 12.6 VDC Localbus
More information:
- Product type : Dual Left Cable Extender
- LocalBus power : 12 VDC (8A)
- Ambient temperature : -40 to 70°C
- Shock : 10g ½ sinewave for 11 msec
- Vibration
- 1mm peak to peak from 5 to 16Hz
- 0.5g from 16 to 150Hz
- Airborne contaminants : ISA-S71.04 –1985 airborne contaminants class G3
- Relative Humidity : 5 to 95% non-condensing IP20 rating
- IF you have any question,please contact me.
- Local Bus Power: 12 VDC, 8 A output
- Ambient Temperature: Operating range of -40°C to +70°C
- Shock Resistance: Withstands 10g half-sinewave shock for a duration of 11 milliseconds
- 1mm peak-to-peak vibration (frequency range: 2 Hz to 13.2 Hz)
- 0.7g vibration (frequency range: 13.2 Hz to 150 Hz)
- Airborne Contaminants: Compliant with ISA-S71.04 – 1985 Airborne Contaminants Class G3
- Relative Humidity: 5% to 95% (non-condensing environment)

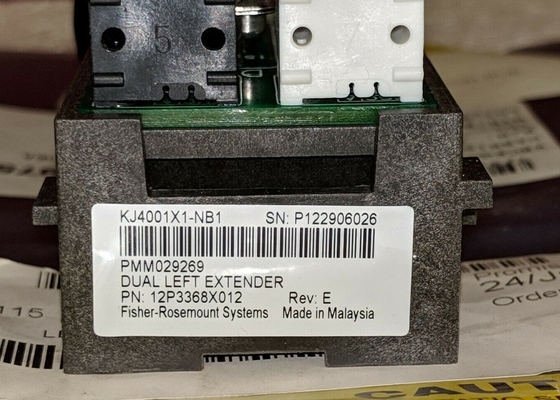

- Product Label: The product label provides key information, including the serial number, installation location, and manufacturing date.
- This product requires adherence to specific guidelines for installation, removal, and operation in hazardous areas.
- Refer to Document 12P2046 DeltaV™ Scalable Process System Zone 2 Installation Instructions for detailed procedures.
- Additional installation guidance is also available in the manual DeltaV™ M-Series Hardware Installation and Reference.
- Power Requirement: The unit must NOT be removed or inserted while the system power is active. Always de-energize the power supply before disconnecting any carriers or LocalBus Extender cables.
- Length Limitation: The combined length of any I/O carriers and LocalBus Extenders must not exceed 6.5 meters.
- Cabling Requirement: Interconnecting cables between enclosures must be installed within conduits.
This unit contains no components that can be serviced by the user. Under no circumstances should it be disassembled.
