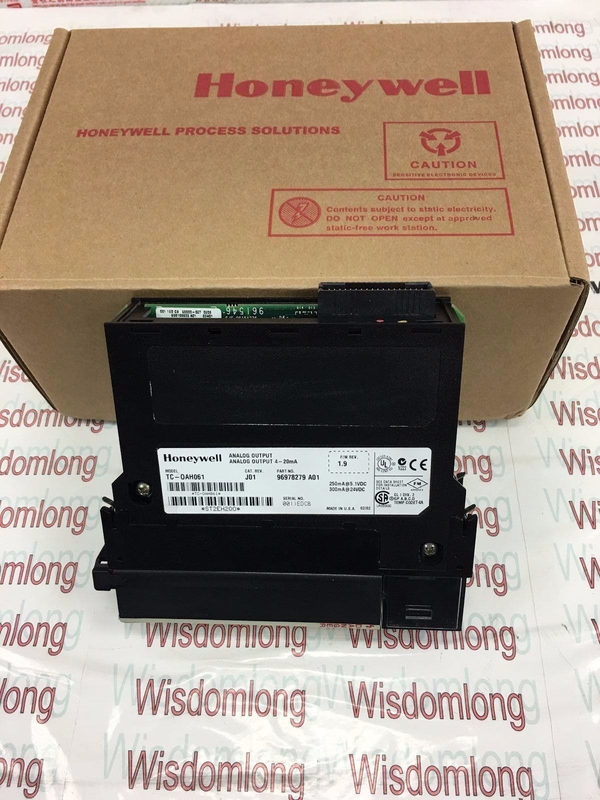

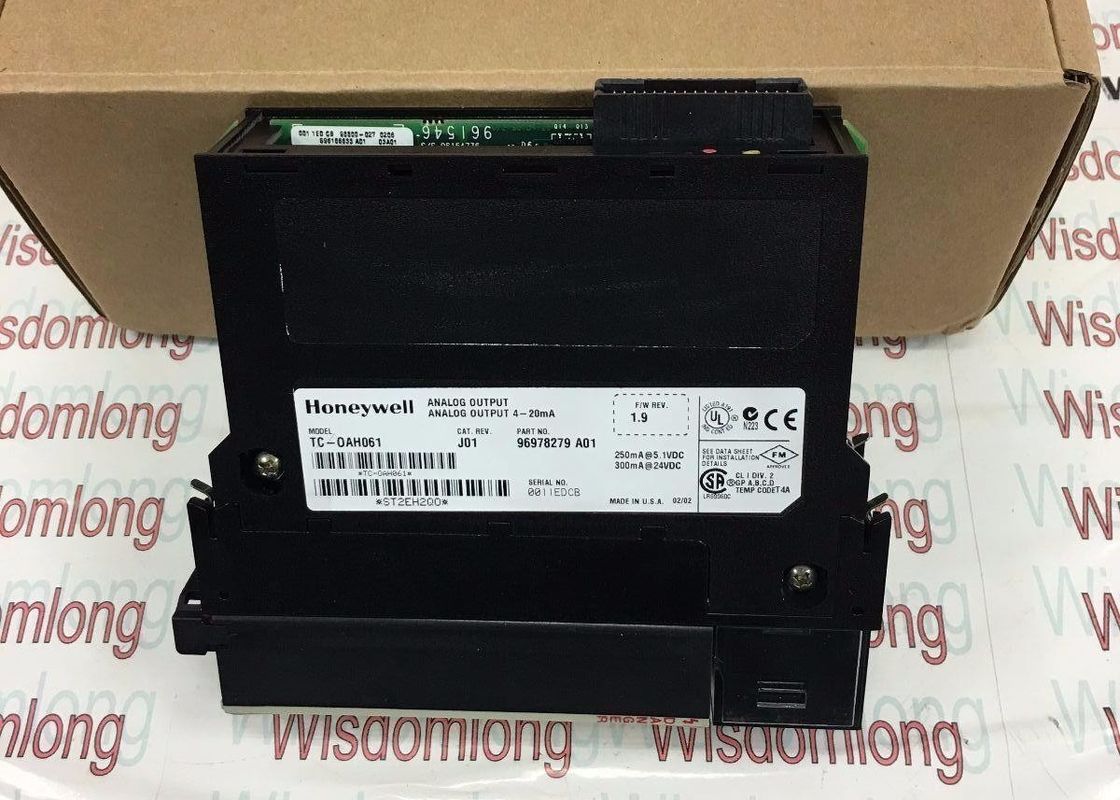

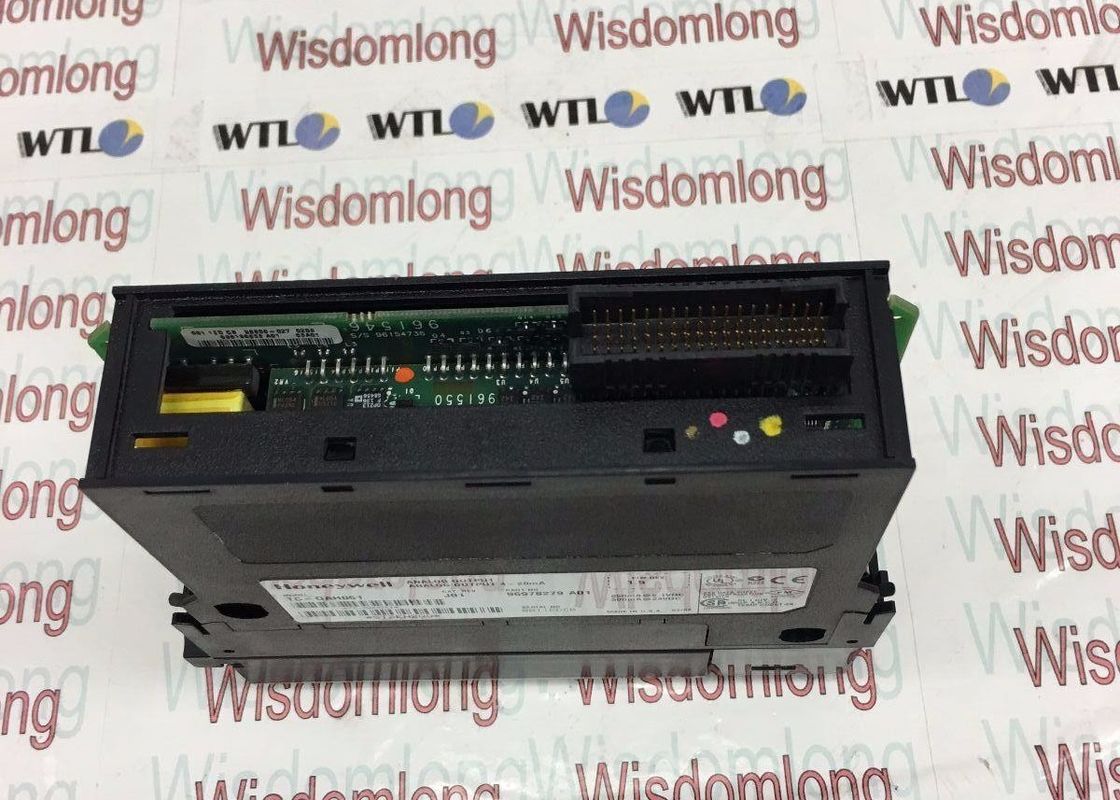

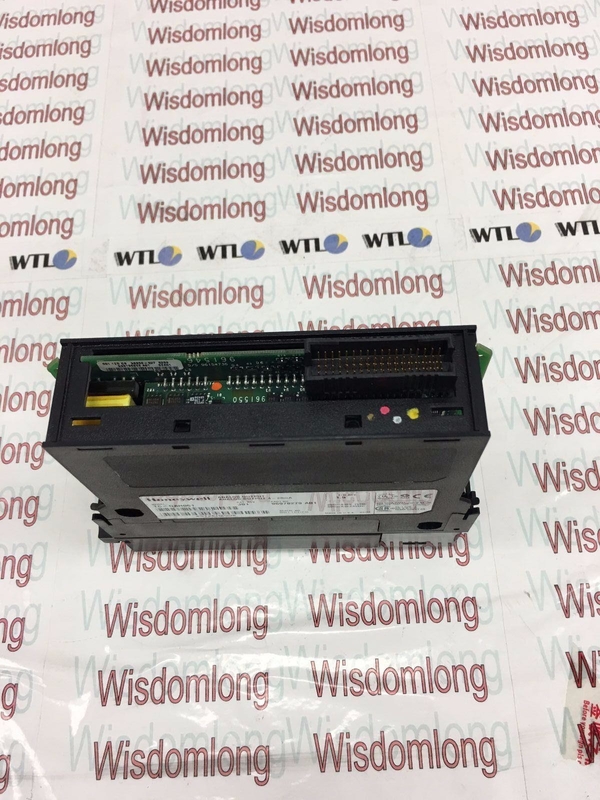

Honeywell TC-OAH061 Analog Output Module​

• Part Number: TC-OAH061​
• Manufacturer: Honeywell​

The Honeywell TC-OAH061 is a high-performance Analog Output Module, playing a key role in generating analog signals. It is essential for controlling various field devices in industrial control systems, such as actuators, valves, and variable speed drives.​

Key Features​

• Galvanic Isolation: Comes with 6 galvanically isolated channels, which ensure electrical separation between each output channel and the system. This isolation is effective in safeguarding against ground loops, electrical noise, and voltage spikes.​
• High-Resolution Output: Offers precise control through a 13-bit resolution within the 0 to 21.0 mA current range, guaranteeing accurate signal generation for connected field devices.​
• Robust Protection: Equipped with output overvoltage protection, rated for 24 VAC/VDC continuous, to shield the module from accidental voltage surges.​
• Superior RFI Immunity: Maintains high accuracy even in the presence of strong radio frequency interference (RFI). The error rate is less than 2.0% at 10 V/m across the 27 to 1000 MHz range.​
• Fast Update Rate: Boasts a 25 ms update rate for all channels, ensuring quick and responsive control loops that are ideal for real-time applications.​
• High Isolation Voltage: Tested to withstand 2546 V DC isolation for 1 second, providing strong protection between channels and the system, thus maintaining electrical safety and integrity.​
• Convenient Connection: Utilizes a TC-TBNH 20-position terminal block, enabling easy and secure wiring connections.​

Specifications​

• Product Type: Analog Output Module​
• Number of Points: 6 galvanically isolated channels​
• Output Current Range: 0 to 21.0 mA​
• Current Resolution: 13 bits across 21 mA​
• Output Overvoltage Protection: 24 VAC/VDC continuous​
• RFI Immunity: < 2.0% error at 10 V/m, 27-1000 MHz​
• Module Update Rate: 25 ms for all channels​
• Power Dissipation: 6.7 W max​
• Isolation Voltage: 2546 V DC for 1 second (channel to channel and user to system)​
• Connection Terminal Blocks: TC-TBNH, 20-position terminal block​
• Shipping Weight: 3 kg
