Product Details:
Payment & Shipping Terms:
|
| Pienin Tilauserä: | 1 Piece | Input Current: | 5 MA |
|---|---|---|---|
| Gross Weight: | 0.149 Kg | Country Of Origin: | Germany (DE) |
| Product Main Type: | CI592 | Output: | Transistor |
| Deliver Time: | 3-5 Working Day | Price: | Contact Us |
| Warranty: | One Year | Brand: | ABB |
| Highlight: | ABB Redundant Power Supply Module,240 DI Redundant Power Supply Module,240 DO Redundant Power Supply Module |
||

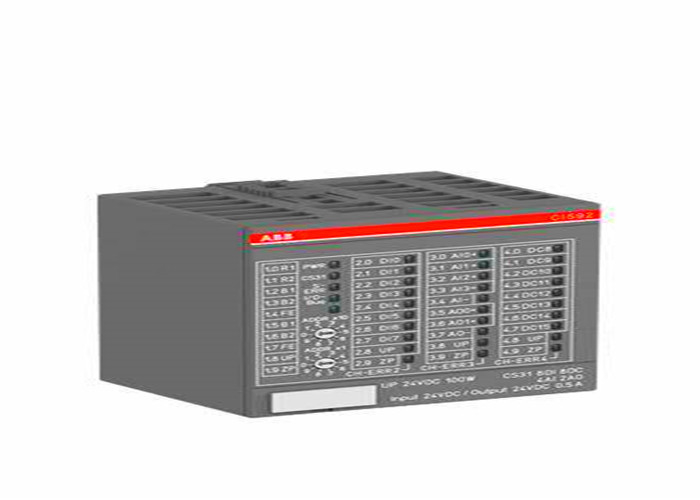

CI592-CS31 1SAP221200R0001 ABB CI592-CS31 4016779681087 0.149 kg CI592 24 V DC
| European Article Number | 4016779681087 |
| Produced in | - |
| Name | CI592-CS31 |
| ID | 1SAP221200R0001 |
| Dimensions | 54 mm x 76 mm x 68 mm |
| Weight | 0.15 kg |
| Сustoms Tariff Code | 85389091 |
| Digital I/Os Limit | 240 DI, 240 DO |
| Connections | Bus module with Onboard IO - 8DI / 8DO-T / 4AI / 2AO |
| Analog I/Os Limit | 32 AI, 32 AO |
| Outputs | 2 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, max. 2 current outputs, 11bit + sign |
| Input Voltage | 24 V DC |
| Nominal Nominal Current | 0.5 A |
| Nominal Output Voltage | 24 V DC |
| Fieldbus Interface | CS31 Slave |
| Power Supply | 24 V DC |
| Hardware Counters | 2 |
| Software | AC500 Control Builder PS501-PROG |
| Ingress Protection Rating | IP20 |
| Serial Port №2 | I/O-Bus |
| Digital Inputs DC 24V | 8 |
| Serial Port №1 | CS31, RS485 interface |
| Extra Functions | Integrated Fast counter |
| Mounting Style | Horizontal, Vertical possible with derating |
| Secondary Current Strength | 0.2 A |
| Digital Configurable I/Os | 8 |
| Nominal Voltage | 24 V DC |
| Hardware Counter Input Frequency Limit | 50 kHz |
| DIN Mounting | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Inputs | 4 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, 0 ... +10V, PT100, PT1000, NI1000, usable as DI, 11bit + sign |
The company with domestic and international numerous well-known brands supplier to build have extremely good relations of cooperation, in Japan, South Korea, southeast Asia, Africa, Europe and the United States, and formed a stable and efficient supply network. The agent and the products are widely used in machinery, equipment manufacturing, electric power, metallurgy, petrochemical, automobile manufacturing industry, paper making, chemical industry, medicine and aerospace industries.
OTHER SUPERIOR PRODUCTS of Wisdomlong Technology CO.,LTD
| Yasakawa Motor, Driver SG- |
| Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- |
| Emerson VE-,KJ- |
| Honeywell TC-,TK- |
| GE Modules IC - |
| Yokogawa transmitter EJA- |
