Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | STBDDO3705KS |
| Condition: | Brand New | Type: | QUANTUM PROCESSOR |

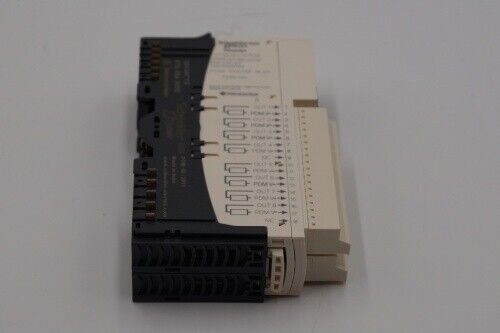

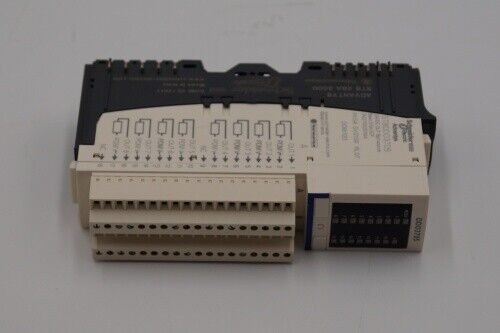

Part Number: STBDDO3705KS
Model: Basic Digital Output Kit
Manufacturer: Modicon
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Main Characteristics
Range of product: Modicon STB distributed I/O solution
Product or component type: Basic digital output kit
Kit composition:
STBDDO3705 module
STBXBA3000 base
STBXTS1180, 18-terminal screw type connector
Discrete output number: 16
Discrete output type: Solid state
Discrete output voltage: 24 V
Discrete output voltage type: DC
Specifications:
| Manufacturer: | Modicon Quantum |
| Series: | Quantum CPUs |
| Weight: | 2 lb |
| Clock frequency: | 66 MHz |
| Number of slots: | 10 |
| 16 | |
| 2 | |
| 4 | |
| 6 | |
| Number of racks: | 2 - local rack(s) |
| Number of distributed I/O station: | 63 station(s) - 1 rack(s) - 3 distributed network(s) |
| Number of remote I/O station: | 31 - 2 remote rack(s) |
| Discrete I/O number: | 8000 inputs, 8000 outputs - distributed - per network |
| 31744 inputs, 31744 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Analogue I/O number: | 500 inputs, 500 outputs - distributed - per network |
| 1984 inputs,1984 outputs - remote | |
| Unlimited (27 slots max) - local | |
| Application specific I/O: | Accurate time stamping |
| Counter | |
| High-speed interrupt inputs | |
| Serial link | |
| Number of optional modules: | 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections: | Unlimited (AS-Interface) - local |
| 4 (AS-Interface) - remote | |
| 2 (Profibus DP) - local | |
| 2 (Modbus) - RS232/485 Modbus/ASCII | |
| 2 (Modbus Plus) - local | |
| 2 (Ethernet TCP/IP) - local | |
| 2 (AS-Interface) - distributed | |
| 1 (USB) | |
| Integrated connection type: | 1 Modbus Plus |
| 2 Modbus | |
| Checks: | Process control |
| Memory description: | Internal RAM 548 kB |
| Switch function: | Slide switch communication port : ASCII/RTU/Memory |
| Slide switch memory port/off | |
| Application structure: | No auxiliary task |
| 64 interrupt tasks | |
| 64 I/O interrupt tasks | |
| 16 timer interrupt tasks | |
| 1 periodic fast task | |
| 1 cyclic/periodic master task |
|
Category |
18150 - QUANTUM CONTROLLERS,HSBY,COMM. |
|
|---|---|---|
|
Discount Schedule |
PC21 |
|
|
GTIN |
00785901663386 |
|
|
Nbr. of units in pkg. |
1 |
|
|
Package weight(Lbs) |
1.7 |
|
|
Returnability |
Y |
|
|
Country of origin |
FR |
|
Sustainable offer status |
Green Premium product |
|
|---|---|---|
|
RoHS (date code: YYWW) |
Compliant - since 0948 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity |
|
|
REACh |
|
|
|
Product environmental profile |
Available |
|
|
Product end of life instructions |
Available |
1 Primary ring, copper/fiber optic medium
3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.
4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)
5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)
6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)
7 Modicon™ STB Ethernet DIO (3) (4)
8 Connection to Ethernet DIO device cloud, copper medium only
9 Ethernet DIO device cloud (3)
10 Ethernet communication module 140NOE771
11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
