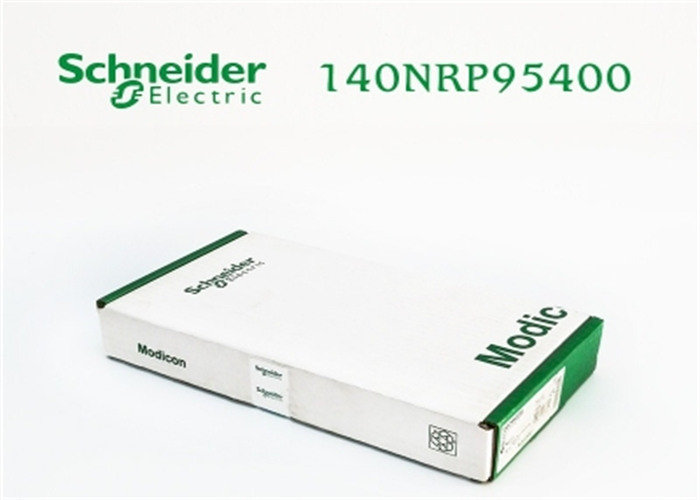

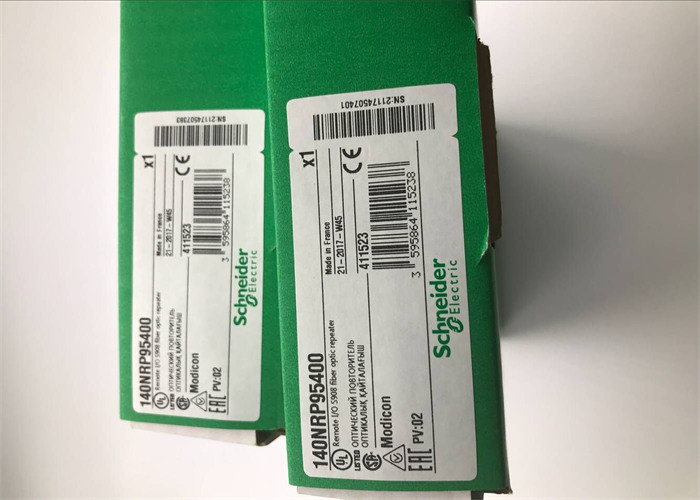

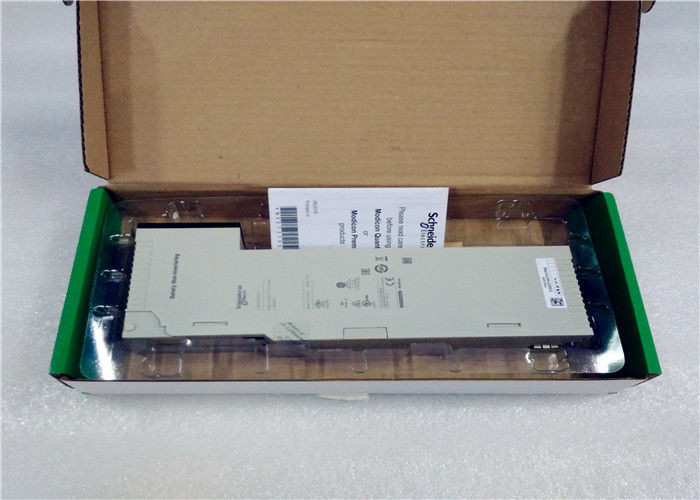

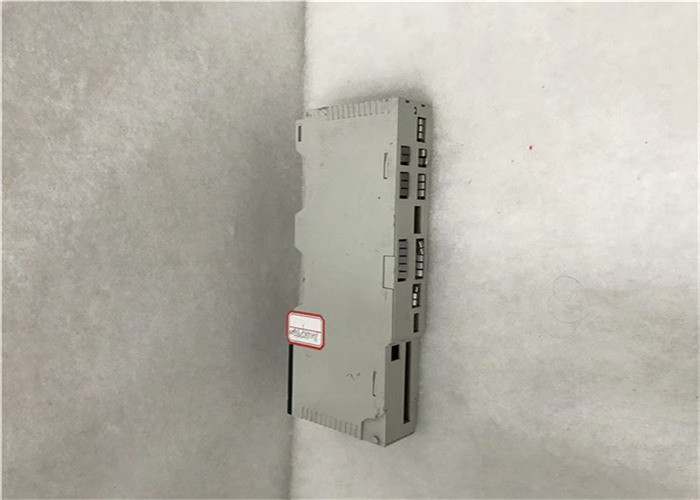

Schneider 140NRP95400 Modicon Remote I/O Fiber Optic RepeaterModicon Quantum PLC

Schneider 140NRP95400 Modicon Remote I/O Fiber Optic RepeaterModicon Quantum PLC

Quick Details:

• CHNEIDER ELECTRIC
• MODICON
• 140NRP95400
• MODULE
• REMOTE I/O
• S908
• FIBER OPTIC REPEATER
• One Year warrabty

Specifications

• Product Range: Modicon Quantum automation platform
• Product/Component Type: Fibre optic repeater
• Optic Fiber Type: Multi-mode

Complementary Details

• Bus Current Requirement: 700 mA
• Power Dissipation: 5 W
• Inrush Current: 1 A at 5 V DC
• Number of Ports: 2 fiber optic ST ports; 1 coaxial connector

Local Signaling (LED Indicators):

• 1 green LED: RDY (module status)
• 1 red LED: ERR (internal fault/module failure)
• 1 green LED: Coaxial communication status
• 2 green LEDs: Optical communication status
• 1 red LED: FAULT (error)
• 1 red LED: Activity detected
• Wavelength: 820 nm (0.000032284 in)

Optical Distance Between Two Transceivers:

• 6561.68 ft (2000 m) for 50/125 µm fiber (3.5 dBm)
• 9842.52 ft (3000 m) for 62.5/125 µm fiber (3.5 dBm)
• 9842.52 ft (3000 m) for 100/140 µm fiber (5 dBm)

Attenuation:

• -20…-13 dB for 50/125 µm fiber
• -16…-10 dB for 62.5/125 µm fiber
• -10.5…-4 dB for 100/140 µm fiber
• Rise/Fall Time: 20 ns
• Receiver Sensitivity: -30 dBm
• Dynamic Range: 20 dB
• Detected Silence: -36 dBm
• Marking: CE
• Material: PC (polycarbonate)
• AWG Gauge: AWG 14...AWG 1

Dimensions:

• Width: 1.59 in (40.34 mm)
• Height: 9.84 in (250 mm)
• Depth: 4.09 in (103.85 mm)
• Net Weight: 1.22 lb (US) (0.554 kg)

Environmental Specifications

• Operating Ambient Temperature: 32…140 °F (0…60 °C)
• Storage Ambient Temperature: -40…185 °F (-40…85 °C)
• Relative Humidity: 0…95%
• Operating Altitude: 0...6561.68 ft (0...2000 m)
• Compliant Standards: CSA C22.2 No. 142; UL 508; FM Class 1 Division 2

Ordering & Shipping Information

• Category: 18155 - QUANTUM I/O & POWER SUPPLIES
• Discount Schedule: PC21
• GTIN: 00785901358206
• Package Weight: 0.59 kg (1.31 lb (US))
