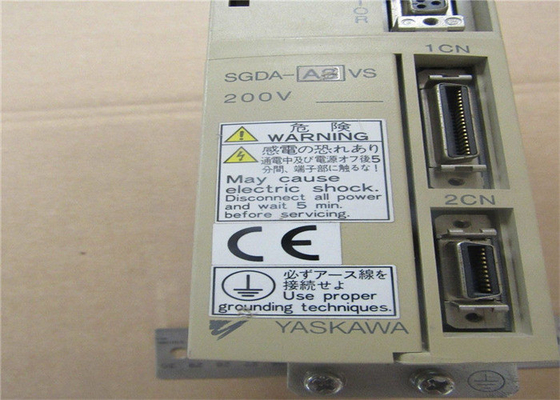

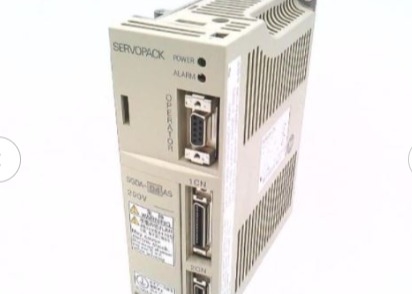

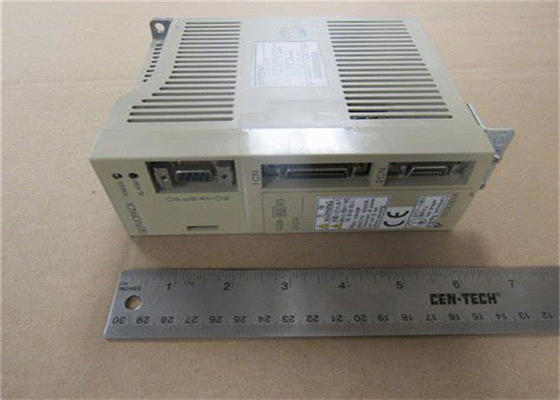

Yaskawa SGDA-A3VS AC SERVO AMPLIFIER 200-230V Optional CE 1.3/0.42A 30W

More information

• Description: The SGDA-A3VS is an AC servo drive manufactured by Yaskawa.
• Servo Amplifier Type: SGDA
• Rated Output: 30W (0.04HP)
• Supply Voltage: 200V (CE optional)
• Model: Speed/torque control (analog input)
• Factory-set Applicable Motor Type: SGM servomotor (blank)
• Modification Type: None

Additional Descriptions of SGDA-A3VS

Safety Module

• Maximum applicable motor capacity: 0.05kW
• Power supply voltage: Three-phase AC 200V
• Interface: MECHATROLINK-III communication command type (for rotary servo motors)
• Design sequence: B
• Hardware specification: Base mounting type (standard)
• Software matching: No matching (standard) – refer to SGD7S-2R8A20A datasheet PDF catalog
• Parameter matching: No matching (standard) – refer to SGD7S-2R8A20A
• Optional Module: Safety Module
• European EC standards: Complies with the integrated mechanical directive standard ISO 13849-1 EN and includes safety functions specified in IEC 61800-5-2.

When combined with the SGDV servo unit, it enables optimal safety design for mechanical systems.
Suitable for AC servo drives, featuring safety functions specified in the international standard IEC 61800-5-2 (a first in Japan) – refer to SGD7S-2R8A20A datasheet PDF catalog.
Facilitates easy implementation of optimal safety designs for mechanical systems.

Safety Functions

• Torque Off Safe (STO)
• Stop Safe 1 (SS1)
• Stop Safe 2 (SS2)
• Limited Speed Safely (SLS)
• Equipped with 2 safety functions that can be set (assigned). Additionally, parameters such as monitoring time can be adjusted – refer to SGD7S-2R8A20A datasheet PDF catalog.
• Using a servo unit integrated with a safety module simplifies and miniaturizes the system.

SGMCS Small-Capacity Direct Drive Servo Motor

• Rated torque: 17N·m
• Servo motor outer diameter: 290mm
• Serial encoder: 20-bit absolute type (1-circle absolute value) (standard)
• Design sequence: E model (denoting the servo motor’s outer diameter)
• Flange specifications: Face C, reverse load side (lead)
• Optional specifications: None
• Directly drives loads without a speed reducer, enabling smooth operation from low to high speeds (instantaneous maximum torque: 6 ~ 600N·m; maximum speed: 250 ~ 500r/min).
• High precision is achieved via a 20-bit high-resolution encoder.
• Features a hollow structure for easy wiring and piping.

Application Examples

• Semiconductor manufacturing equipment
• LCD circuit board manufacturing equipment
• Various inspection and testing equipment
• Electronic component packaging machines
• IC information processors
• IC inspection equipment
• Various automated machinery
• Robots

Small-Capacity Ratings and Specifications

• Rated time: Continuous
• Vibration level: V15
• Insulation resistance: ≥10MΩ at DC 500V
• Operating ambient temperature: 0 ~ 40°C
• Excitation type: Permanent magnet
• Installation method: Flange type
• Heat resistance class: A
• Insulation withstand voltage: AC 1500V for 1 minute – refer to SGD7S-2R8A20A datasheet PDF catalog
• Protection class: Fully enclosed, self-cooling (IP42, excluding the rotating part of the output shaft)
• Operating ambient humidity: 20 ~ 80% RH (non-condensing) – refer to SGD7S-2R8A20A datasheet PDF catalog
• Connection method: Direct connection
• Rotation direction: Counterclockwise (CCW) when viewed from the load side
