Panasonic Servo Motor MINAS A5 MSMD Series MSMD012G1S A4 Servo 100W

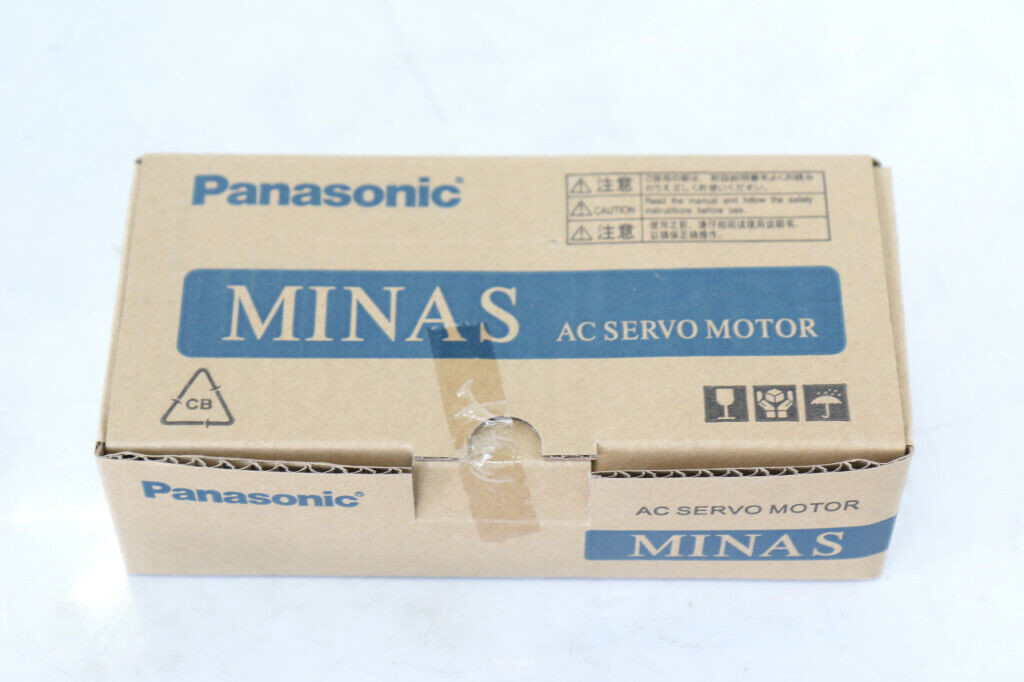

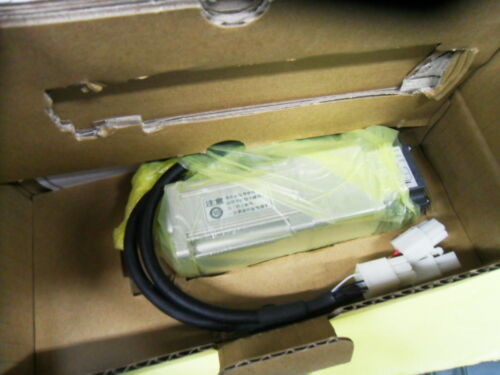

: Large Image : Panasonic Servo Motor MINAS A5 MSMD Series MSMD012G1S A4 Servo 100W

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MSMD012G1S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact
Packaging Details:	NEW AND ORIGINAL
Delivery Time:	3-5DAYS
Payment Terms:	T/T, Western Unionm,PAYPAL
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Panasonic	Model Number:	MSMD012G1S
Country Of Origin:	Japan	Type:	Industrial Servo Motor
Delivery Time:	2-3days	RATED REV:	3000RPM
RATED Freq:	200HZ	RATED Output:	0.4KW
Input:	106V 2.5A

Panasonic Servo Motor MINAS A5 MSMD Series MSMD012G1S A4 Servo 100W

Product Details

Item Specifications

Part Number MSMD012G1S

Details Low inertia, Lead wire type, IP65

Family Name MINAS A5

Series MSMD Series

Type Low inertia

Protection class IP65

About Enclosure Except rotating portion of output shaft and leadwire end.

Environmental Conditions For more details, please refer to the instruction manual.

Flange sq. dimension 38 mm sq.

Flange sq. dimension (Unit:mm) 38

Motor lead-out configuration Lead wire

Motor encoder connector Lead wire

Power supply capacity (kVA) 0.5

Voltage specifications 200 V

Rated output 100 W

Rated current (A (rms)) 1.1

Holding brake without

Mass (kg) 0.47

Oil seal without

Shaft Key-way, center tap

Rated torque (N ⋅ m) 0.32

Momentary Max. peak torque (N ⋅ m) 0.95

Max. current (A (o-p)) 4.7

Regenerative brake frequency (times/min) Without option :No limit

With option :No limit

Option (External regenerative resistor) Part No. : DV0P4281

About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.

Rated rotational speed (r/min) 3000

Rated rotational Max. speed (r/min) 5000

Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.051

Recommended moment of inertia ratio of the load and the rotor 30 times or less

About recommended moment of inertia ratio of the load and the rotor Please refer to the details of [Motor Specification Description] ,Note: 3.

Rotary encoder: specifications 20-bit Incremental system

Rotary encoder: Resolution 1048576

During assembly: Radial load P-direction (N) 147

During assembly: Thrust load A-direction (N) 88

During assembly: Thrust load B-direction (N) 117.6

During operation: Radial load P-direction (N) 68.6

During operation: Thrust load A, B-direction (N) 58.8

About permissible load For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft".

MSDA3A3A1A	MSDA5A3A1A	MSDA013A1A
MSDA023A1A	MSDA043A1A	MSDA083A1A
MDDA103A1A	MDDA153A1A	MDDA203A1A
MDDA253A1A	MDDA303A1A	MDDA353A1A
MSDA403A1A	MSDA503A1A	MSD023A1XXV
MSDA083A1XXV	MSD043A1X	MSDA043D1A
MQDA043A1A	MUDS043A1A	MUDS023A1A
MUDS083A1A	MUMS082A1E0S	MUDS083A1M
MUMA012P1T	MUMA022P1T	MUMA042P1T
MUMA042P1S	MUMA012P1S	MUMA022P1S
MUMS082P1S	MSDA043A1XXV	MSDA013A1XXV
MKDET1505P	MLDET2310P	MUMA082P1T
MLDET2510P	MKDET1310P	MUMS042A1AOS
MSM041A211	MQMA042A1E	MSMA022P1A
MSM042P1B	MSM042AJB	MSM011P1N
MQMA022S2P	MSM012AJA	MSM012P1F
MDMA152S1C	MSM042AJA	MQMA012C2P
MSMA022A1B	MSM021DJE	MSD043A1X
MSD043A1XX	MSM042A1A	MSM5AZA1B
MUMS012C2U1S	MUMS012A1F0S	MSMZ082A1B
MSD013A1XX	MSM012A1A	MSMA012C1A
MSDA013D1A	MSMA5AZS1A	MQMA012P1B
MSMD042P1T	MUMS022A1B0S	MFM082A1C
MQMA042A1E	MSMA022C1A	MSMA022C1E
