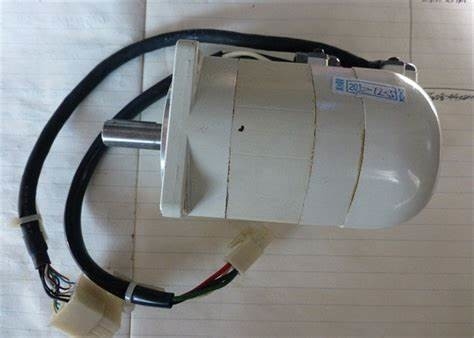

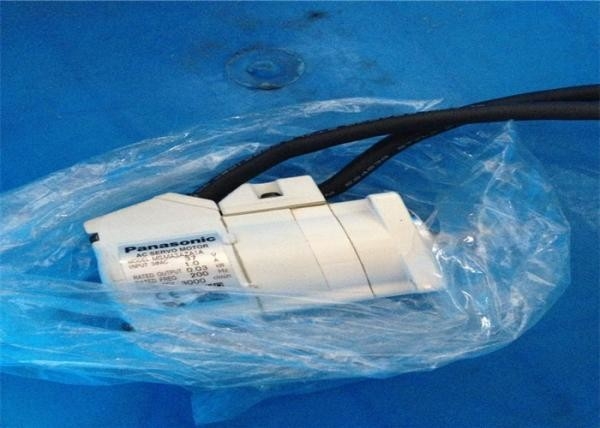

Panasonic Industrial Control System Industrial Servo Motor MSMA3AZS1A
Item Specifications
Input power 100 V Main circuit Single phase 100 V ＋10 ％－15 ％ ～120 V ＋10 ％－15 ％ 50 Hz / 60 Hz
Control circuit Single phase 100 V ＋10 ％－15 ％ ～120 V ＋10 ％－15 ％ 50 Hz / 60 Hz
200 V Main circuit A-frame to
D-frame Single/3-phase 200 V ＋10 ％－15 ％ ～240 V ＋10 ％－15 ％ 50 Hz / 60 Hz
E-frame,
F-frame Single/3-phase 200 V ＋10 ％－15 ％ ～240 V ＋10 ％－15 ％ 50 Hz / 60 Hz
Control
circuit A-frame to
D-frame Single phase 200 V ＋10 ％－15 ％ ～240 V ＋10 ％－15 ％ 50 Hz / 60 Hz
E-frame,
F-frame Single phase 200 V ＋10 ％－15 ％ ～240 V ＋10 ％－15 ％ 50 Hz / 60 Hz
Environment temperature Ambient temperature: 0 ˚C to 55 ˚C (free from freezing)
Storage temperature: –20 ˚C to 65 ˚C
(Max.temperature guarantee: 80 ˚C for 72 hours free from condensation*1)
humidity Both operating and storage : 20 % to 85 %RH (free from condensation*1)
Altitude Lower than 1000 m
Vibration 5.88 m/s2 or less, 10 Hz to 60 Hz
Control method IGBT PWM Sinusoidal wave drive
Encoder feedback 23-bit (8388608 resolution) absolute encoder, 7-wire serial
* When using the product as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Instead, set the parameter Pr0.15 to [1] (default).
External scale feedback A/B phase, initialization signal defferential input.
Manufacturers that support serial communication scale:
Fagor Automation S.Coop., Magnescale Co., Ltd., Mitutoyo Corporation Nidec Sankyo Corporation, Renishaw plc
Parallel I/O connector Control signal Input General purpose 10 inputs
The function of general-purpose input is selected by parameters.
Output General purpose 6 outputs
The function of general-purpose output is selected by parameters.
Analog signal Input 3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs)
Output 2 outputs (Analog monitor: 2 output)
Pulse signal Input 2 inputs (Photo-coupler input, Line receiver input)
Both open collector and line driver interface can be connected.
High speed line driver interface can be connected.
Output 4 outputs ( Line driver: 3 output, open collector: 1 output)
Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal.
Communication
function USB USB interface to connect to computers for parameter setting or status monitoring.
RS232 1:1 communication
RS485 1: n communication (max 31)
Safety function A dedicated connector is provided for Functional Safety.
Front panel (1) 5 keys
(2) LED (6-digit)
Regeneration A-frame, B,-frame: no built-in regenerative resistor (external resistor only)
C-frame to F-frame: Built-in regenerative resistor (external resistor is also enabled.)
Dynamic brake A-frame to F-frame: Built-in
Control mode Switching among the following 7 mode is enabled,
(1) Position control
(2) Speed control
(3) Toque control
(4) Position/Speed control
(5) Position/Torque control
(6) Speed/Torque control
(7) Full-closed control
High performance (same as MINAS A5 standard drives) sMultifunctional sAttractive price-performance ratio sDesigned exclusively for positioning control s20 bits/revolution; 1.04 million pulses per revolution sMax. speed: 6000rpm sLow cogging torque sNew design; innovative core; high-precision encoder sIP67 degree of protection for all MSME-type motors M
The following are some of the drive models, both new and used are stocked:
MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E
