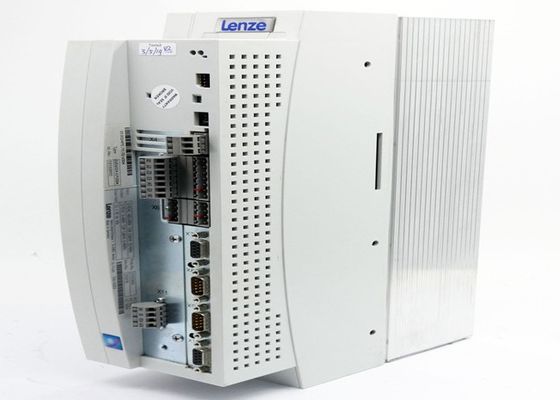

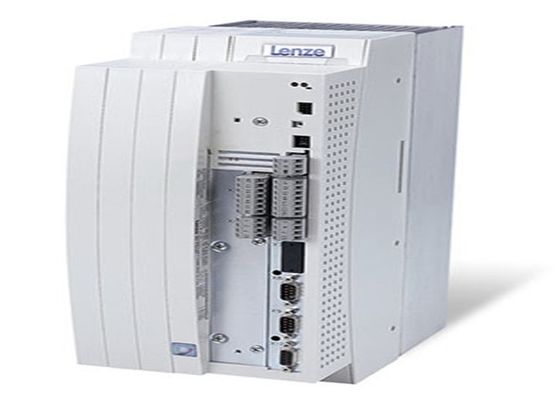

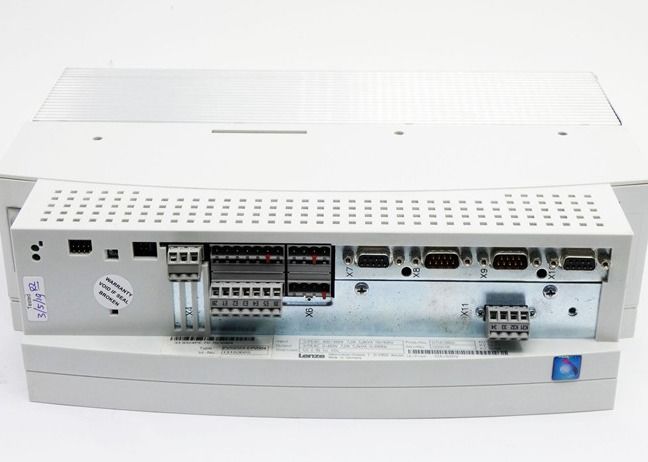

Lenze EVS9324-EPV004 Servo Controller 9300 SERIES 400 / 480VAC 3.0 KW 4 HP
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Lenze |
| Certification: | CE |
| Model Number: | EVS9324-EPV004 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5 working day |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Country Of Origin: | Germany | Model: | EVS9324-EPV004 |
|---|---|---|---|
| Brand: | Lenze | Category: | Servo Products |
| Subcategory: | Servo Drive/Servo Control | Warranty: | One Year |
| Weight: | 11.00 Lbs | Design: | Built-In Unit |
| Highlight: | EVS9324-EPV004 Servo Controller,480VAC Lenze Servo Controller,Safe Standstill Lenze Servo Controller |
||
Product Description
Lenze EVS9324-EPV004 Servo Controller 9300 SERIES 400 / 480VAC 3.0 KW 4 HP
Quick Detail
- EVS9324-EPV004
- DISCONTINUED BY MANUFACTURER
- SERVO CONTROLLER
- 9300 SERIES
- 400/480 VAC
- 3.0 KW (4 HP)
- BUILT-IN UNIT
- SERVO POSITION CONTROLLER
- SAFE STANDSTILL
The Lenze EVS9324-EPV004 belongs to the 9300 Series and serves as a dedicated position controller. It leverages an advanced vector control technology to enable precise regulation of the motor it is connected to, ensuring high control accuracy during operation. For optimal performance, this unit necessitates a 3-phase power input. In terms of output capabilities, it delivers a rated power of 3 kilowatts—equivalent to 4 horsepower—and is designed to operate with a supply voltage ranging from 400 to 480 Volts AC.
Capable of handling an output voltage of up to 480 Volts AC, the EVS9324-EPV004 also accommodates an input frequency of 50 to 60 Hertz. It is equipped with an LED display that provides real-time visibility of key operational parameters, allowing users to monitor the device’s status conveniently. Additionally, the controller features an IP20 protection rating, which offers moderate defense against solid debris and dust. This level of protection makes it well-suited for deployment in indoor settings.
To ensure reliable operation, the EVS9324-EPV004 requires an ambient temperature range of -10 to 60°C during use. For storage purposes (when the device is not in operation), it can be kept in environments with temperatures ranging from -25 to 60°C. The unit also exhibits resilience to voltage fluctuations, with a permissible input voltage range of 320 to 528 Volts AC.
A notable safety feature of this servo controller is its integrated safe standstill function, which significantly boosts operational safety during its use. Designed for panel mounting, the module can be securely installed in control cabinets—an arrangement that not only ensures stability but also optimizes space utilization.
