GE FANUCIC693ALG220 LITHIUM BATTERY SERIES 90-30 PLCS CAPACITY OF 1200 MAH
Technical Specifications for IC693ALG220
Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Manufacturer GE Fanuc
Part Number IC693ALG220
Part Number IC693ALG220
Series Series 90-30
Input signals: +/-10 VDC
Module Type Input Module
Product Description Analog input module
Number of Inputs 4
Converter Resolution: 12-bit
No of Channels Four (4)
Product Type channel analog voltage module
Input signals -10 to +10 VDC
Digital resolution 5 mV/20 µA, (1 LSB = 5 mV)
Digital Resolution 12 bits, typical
Absolute Accuracy Typical: +/-10 mV/40 µA Maximum is +/-30 mV/160 µA
Compatible Components PLCs
Power consumption 27 mA from +5 volt bus on the backplane; 98 mA from the isolated +24 volt backplane bus
Analog resolution 5 mV/20 µA, (1 LSB = 5 mV)
Voltage Range â10 to +10 Volts
Linearity < 1 Least Significant Bit
Isolation 1500 VAC
Mounting Location I/O slot of Series 90-30 Baseplate
Update Rate 4 ms
Cross-Channel Rejection > 80 db
Calibration Factory Calibrated
Input Filter Response 17 Hz
Absolute Accuracy Typical: ±10 mV/40 µA over operating temperature; Maximum: ±30 mV/160 µA over operating temperature.
Input Filter Response 17 Hz
Bus Current draw 27 mA from +5 volt bus on the backplane; 98 mA from the isolated +24 volt backplane bus
Product Lifecycle Status Discontinued/Obsolete

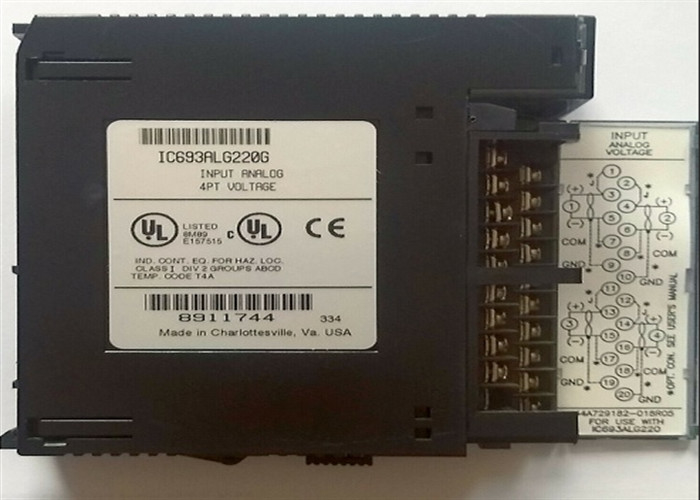

The IC693ALG220 is a Series 90-30 module that is formerly manufactured by GE Fanuc, currently under Emerson Automation. This module mainly functions as analog input module, compatible with input signal range of - 10 VDC to + 10 VDC. This module is optionally compatible with 0-20 mA signals which can be enabled by installing a 250 Ohm to the module’s user terminal connector.
The IC693ALG220 is installed with Analog to Digital Converter (ADC) with conversion resolution of 12 bits for voltage input; 10 bits for current input which can be increased to 11 bit with the use of a precision resistor. Each channel of the module has individual update rate of 4 ms while the module is powered by the 24VDC provided by the PLC power supply. It has a backplane current consumption of 27 mA from +5 volt bus on the backplane and 98 mA from the isolated +24 volt backplane bus. It is mounted to any available I/O slot of the 5 or 10 slot Series 90-30 baseplate and occupies a single slot of the rack.
The IC693ALG220 has typical absolute accuracy of +/-10 mV/40 µA while the maximum is +/-30 mV/160 µA over operating temperature. It has linearity of # 1 Least Significant Bit (LSB), input filter response of 17 Hz, module isolation of 1500 volts between field side and logic side, cross channel rejection of > 80 db and input impedance of > 9 Megohms in voltage mode and 250 ohms when operating at current mode.
The IC693ALG220 module is an analog input module by GE Fanuc, which is part of the Series 90-30. This input module, which is a component of programmable logic controller (PLC), comes with 4 input channels. Each channel can easily convert an analog signal to a digital signal, according to the user application requirements. Additionally, the GE Fanuc IC693ALG220 CAV input module allows the users to convert input signals ranging from -10 to +10 Volts. The conversion speed for every channel is around 1 millisecond. Thus, the IC693ALG220 input module provides an update rate for around 4 milliseconds for any channel at a time. The converted signal has resolution of 12 bits binary.
The GE Fanuc IC693ALG220 input module comes equipped with a limited current input mode, as well as a jumper on each channel’s user terminal connector. Users can use the jumper to connect an internal 250 ohm shunt resistor to the circuit. This shunt resister allows for an input range of -40 to +40 milliamps. However, it is essential for the users to monitor the input current constantly to prevent the input resistor from self-heating, because this could affect the current accuracy negatively. The main power supply of the GE Fanuc IC693ALG220 CAV input module is an isolated +24 Volts DC power supply, which is supplied through a PLC power supply. The voltage is sent through a regulator/inverter to produce the required voltage for the IC693ALG220 module to operate. The IC693ALG220 input module comes with an LED which shows the users its operation status.
