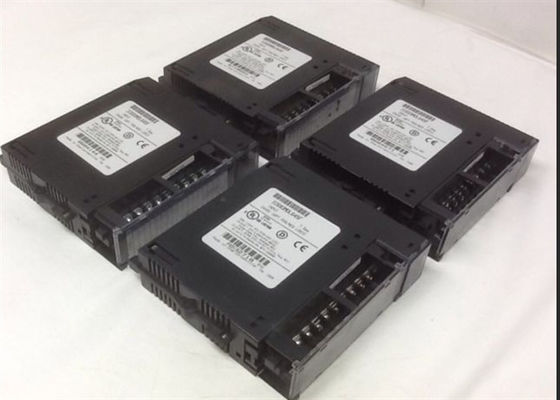

GE FANUC IC693ALG391 SERIES 90-30 PLC ANALOG OUTPUT MODULE PROVIDING 0-20 MA

GE FANUC IC693ALG391 SERIES 90-30 PLC ANALOG OUTPUT MODULE PROVIDING 0-20 MA

Technical Specifications for IC693ALG391

Brand GE Fanuc
Analog output signal 0-20 mA / 4-20 mA; 1-5VDC / 0-5 VDC
Manufacturer GE Fanuc (Formerly); Emerson Automation (Current)
Series Series 90-30
Channel update rate 5 ms
Series Series 90-30
Part Number IC694ALG391
Analog output resolution 4 to 20 mA 4µA (1 LSB = 4µA); 0 to 20 mA 5µA (1 LSB = 5µA); 1 to 5 V 1 mV (1 LSB = 1 mV); 0 to 5 V 1.25 mV (1 LSB = 1.25 mV)
Output signals 0-20 mA / 4-20 mA
Product Description Analog output module
No of Channels Two (2) output channels
Analog output accuracy: 4 to 20 mA 8µA at 25oC (77oF); 0 to 20 mA 10µA at 25oC (77oF); 1 to 5 V 50 mV at 25oC (77oF); 0 to 5 V 50 mV at 25oC (77oF)
Digital Resolution 12 bits, typical
Range 4-20 mA, 0-20 mA
Current draw 30 mA @ 5 VDC; 215 mA @ 24 VDC (backplane or user provided)
Analog resolution 4 to 20 mA 4µA (1 LSB = 4µA); 0 to 20 mA 5µA (1 LSB = 5µA); 1 to 5 V 1 mV (1 LSB = 1 mV); 0 to 5 V 1.25 mV (1 LSB = 1.25 mV)
Supply Voltage (nominal) +24 VDC, from isolated +24 VDC on backplane or user supplied voltage source, and +5 VDC from backplane
External Supply Voltage Range 20 to 30 VDC (24 VDC typical)

External Supply Voltage Range 20 to 30 VDC
Update Rate 5 msec
Isolation 1500 VAC
Status indicators Module OK
Update Rate 5 ms all channels
Calibration Factory Calibrated to 4µA per count
Module width 1-slot
Resolution at 4-20 mA 4 microamps
Absolute Accuracy 4 to 20 mA ±8µA at 25degrees C (77degrees F); 0 to 20 mA ±10µA at 25degrees C (77degrees F); 1 to 5 V ±50 mV at 25degrees C (77degrees F); 0 to 5 V ±50 mV at 25degrees C (77degrees F)
Isolation, Field to logic side 1500 VAC for 1 minute
Product Lifecycle Status Discontinued
Bus Current draw 30 mA from +5V supply; 215 mA from Isolated +24 VDC backplane supply or user supply
Resolution at 0-20 mA 5 microamps
Product Lifecycle Status Discontinued/Obsolete
Maximum Compliance Voltage 25 Volts

Internal Power Consumption 30 mA at 5 VDC, 215 mA at 24 VDC Isolated
Product Lifecycle Status* Discontinued/Obsolete

About IC693ALG391

The IC694ALG391 is an analog output module formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. This module is a single slot module featuring Two (2) analog output channels that generates voltage and current output signals such as 0-20 mA / 4-20 mA and 1-5VDC / 0-5 VDC electrical signals. This module comes with specific resolutions particularly 4µA (1 LSB = 4µA) at 4-20 mA; 5µA (1 LSB = 5µA) at 0-20 mA; 1 mV (1 LSB = 1 mV) at 1 to 5 VDC and 1.25 mV (1 LSB = 1.25 mV) at 0-5 VDC. This module is used particularly to actuate modulating control devices such as control valves, louvers, dampers, Variable Frequency Drive (VFD), and similar devices. It may also be used for retransmitting signals and interfacing to panel meters, data loggers, and other receiving elements. The IC694ALG391 is installed to any I/O mounting location of a 5-slot and 10-slot baseplate. It has a single Module OK status indicator depicting the operational state of the module. The module’s absolute accuracy are 8µA at an operating temperature of 25oC (77oF) when configured for 4 to 20 mA; 10µA at 25oC (77oF) for 0 to 20 mA configuration; 50 mV at 25oC (77oF) for 1 to 5 V operation and 50 mV at 25oC (77oF) operating at 0 to 5 V. The IC694ALG391 has an internal power consumption of 30 mA from the +5V supply and 215 mA from the isolated +24 VDC backplane supply or user-provided power source.

The IC693ALG391 is a Series 90-30 PLC, analog output module providing 0-20 mA / 4-20 mA current output signal and 1-5VDC / 0-5 VDC voltage output signals. This module is formerly manufactured by GE Fanuc Automation, now under Emerson Automation. The module has Two (2) analog output channels with resolution of 4µA (1 LSB = 4µA) at 4-20mA; 5µA (1 LSB = 5µA) at 0 to 20 mA; 1 mV (1 LSB = 1 mV) at 1 to 5 V; 1.25 mV (1 LSB = 1.25 mV) at 0 to 5 V with backplane current draw of 30 mA from +5V supply and 215 mA from Isolated +24 VDC backplane supply or user supply.
