Technical Specifications for IC693CPU351

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Part Number IC693CPU351
Product Description Modular CPU
Product type CPU module
User memory 240 Kbytes
Processor type 80386EX
Compatibility GE Fanuc 90-30 PLCs
Clock speed 25 Megahertz
Typical scan rate 0.22 ms per 1K of Boolean logic
Serial ports 3
Processor speeds 25 MHz
Voltage input 5 Volts DC
Expandable Yes

Current input 890 milliamps
No. of extension baseplates Seven (7) expansion baseplate; Seven (7) Remote I/O baseplate
Operating temperature 0 to 60 degrees Celsius
Discrete Input Points - %I 2048
Key switch Yes
Discrete Output Points - %Q 2048
Analog Inputs - %AI 32,640 (max)
Analog Outputs - %AQ 32,640 (max)
Built-in Serial Ports PLC power supply Port: Supports SNP slave and SNP-X slave protocols; Port 1 and 2: RTU slave, SNP/SNPX master/slave
Timers / Counters >2000
Interrupts No
Shift register Yes
Current load: 890 mA
Bus voltage: +5VDC

About IC693CPU351

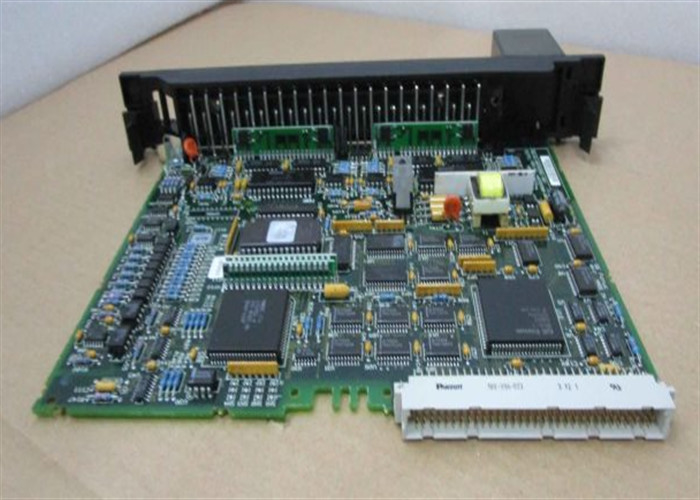

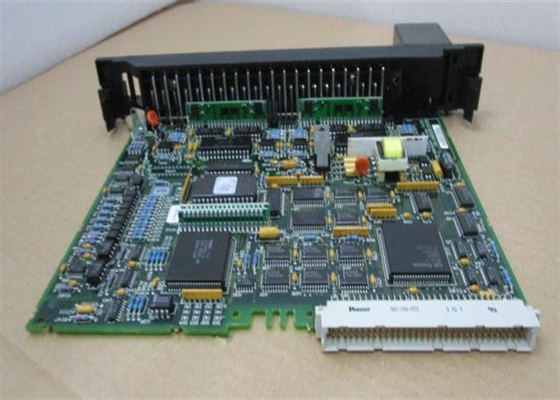

The GE Fanuc 90-30 module with catalog number IC693CPU351 is part of the modular CPU sub-category. This CPU is designed for applications that require higher complexity, faster processing speed and support for large quantity of I/O. This module is a single-slot CPU module that is designed to be mounted to a 5-slot or 10-slot CPU baseplate.

The IC693CPU351 supports a large quantity of I/O specifically, 2048 Discrete Input points (%I); 2048 Discrete output points (%Q) and analog I/O words that varies depending on the software used however, the maximum configurable analog I/O is 32, 640 Words, each. Other internal register quantities available to this CPU are 1280 bits of binary global memory; 4096 bits of memory coils; 256 bits of temporary output coils; 128 bits of system status references; maximum of 32640 words of register memory and 28000 Words of system registers which can be used for reference table viewing only.

This modular CPU is configurable to communicate and perform I/O data exchange between I/O expansion or Remote I/O baseplates. Specifically, Seven (7) and / or I/O expansion or remote I.O baseplates. For communication with visualization systems such as Human Machine Interface (HMI) or Supervisory Control and Data Acquisition System (SCADA) and other automation devices, the IC693CPU351 is provided with Three (3) Serial ports. One (1) serial port is located on the power supply connectors supporting SNP/SNPX slave while Ports 1 and 2 supports RTU slave, SNP / SNPX master/slave protocols. Installation of communication modules is also supported by this modular CPU.

The GE Fanuc IC693CPU351 CPU is a modular CPU module. The IC693CPU351 CPU is developed for use in Series 90-30 programmable logic controller (PLC) systems. The clock speed of the CPU is 25 Megahertz. The processor type is an 80386EX processor. The IC693CPU351 CPU is part of the GE350 to 364 CPU series which were developed to meet needs of customers that required faster processing speed, increased memory size. The IC693CPU351 CPU is supported by the Logicmaster 90- 30, microprogramming and configuration software that is release version 6.0 and later and the control programming and configuration software that is release version 2.0 and later. The user memory on the IC693CPU351 CPU is 240 KB (supported by the CPU firmware that is release 9.0 and later). For firmware prior to release 9.0, the CPU module memory size is 80 KB.

The IC693CPU351 CPU does not support an embedded Ethernet port but there are 3 built-in serial ports on the CPU module. Optional communications modules available for the IC693CPU351 CPU include the Profibus, GBC, Ethernet, GCM and GCM+ modules. Floating-point math functions are supported by the IC693CPU351 CPU. A key switch is also provided on the IC693CPU351 CPU. A sequential event recorder is also available on the module. The internal coils on the module are rated at 4096 bits and the output (temporary) coils are rated at 256 bits. The power requirements of the IC693CPU351 CPU is 5 Volts DC voltage and 890 milliamps of current. A battery-backed clock and override are available on the IC693CPU351 CPU. The operating temperature range is 32 to 140 degrees Fahrenheit.
