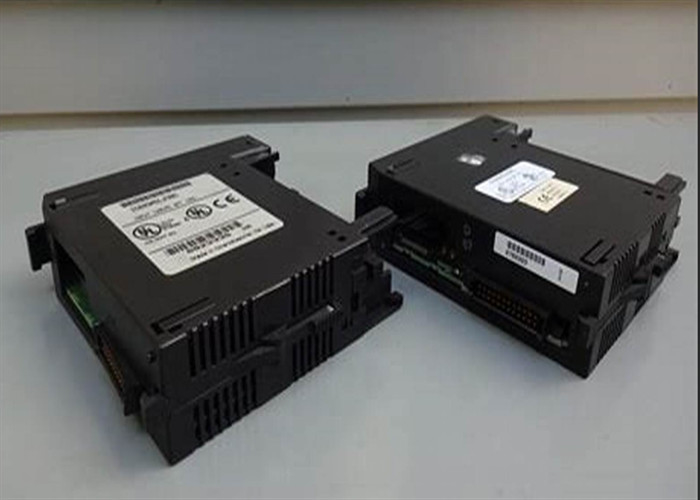

GE FANUC IC693MDL230 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE

GE FANUC IC693MDL230 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE

Technical Specifications for IC693MDL230

Brand GE Fanuc
Series Series 90-30
Part Number IC693MDL230Â
Brand GE Intelligent Platforms/GE Fanuc
Product Type  Isolated Input Module
Voltage 120 V AC
Inputs 8

Frequency 50/60 Hertz
Input Current at a Rated Speed 14.5 mA
Isolation between field side and logic side 1500 V RMS
AC Power Yes
DC Power No
Compatible with Programmable Logic Controllers
LED Indicators 8

About IC693MDL230

The GE Fanuc IC693MDL230 module is an isolated input module manufactured as part of Series 90-30. It has a 120 Volts AC voltage rating and is designed to work with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. The module comes with one common power input terminal that provides power for all 8 of the input points. All the points are isolated, and the input circuits are reactive inputs. With its input characteristics, this module is compatible with various input devices. For instance, the users can run this module by using pushbuttons, limit switches, or electronic proximity switches. However, the users must supply the external power source for the module to be able to operate these devices. This module uses the AC power because DC sources of power do not work with it.

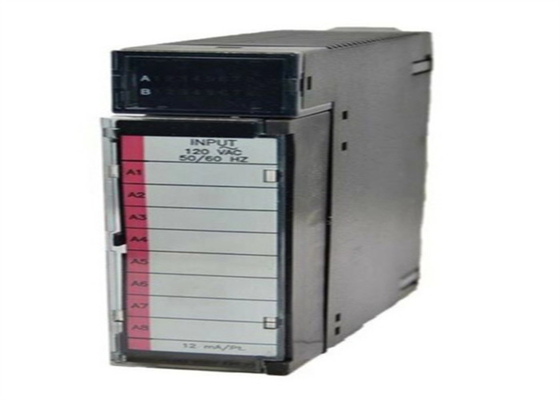

The IC693MDL230 module comes with an LED block on top of the unit that hosts one row of 8 LED points that show the status of each of the 8 input points. These LED indicators turn green when the module is in normal operation and red when there is a system fault. This module has a hinged door with a door card that can slip through the gap whenever the door closes. The outer surface of this card can record the circuit identification information. The card comes with red edge striping which means that the module is a high voltage device. The operators can install the IC693MDL230 AC isolated input module in any of the baseplates I/O slots in the Series 90-30 Programmable Logic Controller system that hosts it.
