Product Details:
Payment & Shipping Terms:
|
| Brand: | GE | Model: | IC693MDL634 |
|---|---|---|---|
| Lead Time: | 5-7 Days | Country Of Origin: | USA |
| Price: | Contect Me | Packing: | New In Origin Box |
Brand GE Fanuc
Series Series 90-30
Part Number IC693MDL634
Brand GE Intelligent Platforms/GE Fanuc
Product Line Series 90-30
Product Type Input Module
Rated Voltage 24 V DC
Input Voltage Range 0 to 30 V DC
Inputs 8
Isolation between field side and logic side 1500 V
Typical Input Current at Voltage Rating 7 mA
On-State Voltage 11.5 to 30 V DC
Off-State Voltage 0 to 5 V DC
On-State Current 3.2 mA min.
Off-State Current 1.1 mA max.

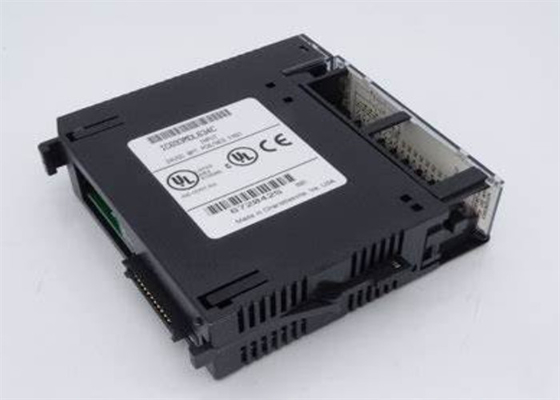

The GE Fanuc IC693MDL634 module is an input module with a voltage rating of 24 Volts DC. It is manufactured as part of the Series 90-30 product line of Programmable Logic Controllers or PLCs manufactured by the GE Intelligent Platforms/GE Fanuc Company. This module features one group of 8 input points as well as a single common power input terminal. The configuration of the GE Fanuc IC693MDL634 module allows for the use of both negative and positive logic characteristics. Some of these input characteristics are best used for a variety of input devices supplied by the users, for instance, pushbuttons and limit switches. When current goes through the input points, the input status table results in a logic level of 1. The power used to run field devices can be supplied by the operators, but an isolated output power of +24 Volts DC can work as a source of power for limited DC inputs.
The GE Fanuc IC693MDL634 input module comes with an input voltage range from 0 to 30 Volts DC, and 7 milliamps of average input current rating at the rated voltage. This module also features an on-state voltage range of 11.5 to 30 Volts DC, with a 0 to 5 Volts DC off-state voltage range. It comes with an on-state current of 3.2 milliamps at a minimum and an off-state current of 1.1 milliamps at maximum. The IC693MDL634 module features LED light indicators that show the "ON" and "OFF" status for each of the 8 input points. There is an insert that separates the inside and outside surfaces of the GE Fanuc IC693MDL634 module’s hinged door and it can be identified by the blue-colored left edge that signals when the module has low voltage.
