Technical Specifications for IC693MDL732

Brand GE Fanuc
Series Series 90-30
Part Number IC693MDL732
Product type Digital I/O
Compatibility GE Fanuc 90-30 PLCs
Rated voltage 12 / 24 Volts DC

Peak input current 50 milliamps
Supply voltage 5 Volts DC
Output points 8
Peak output per point 0.5 Amps
Inrush current 4.78 Amps
Product Lifecycle Status* Discontinued/Obsolete

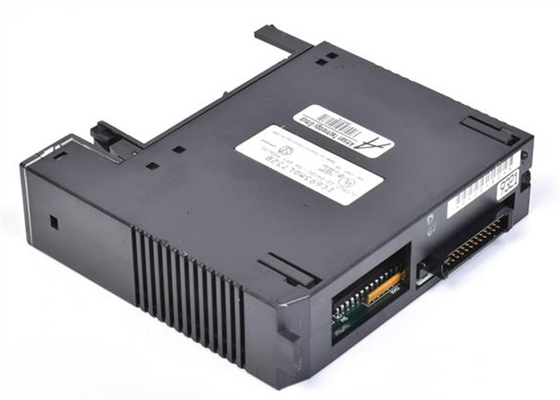

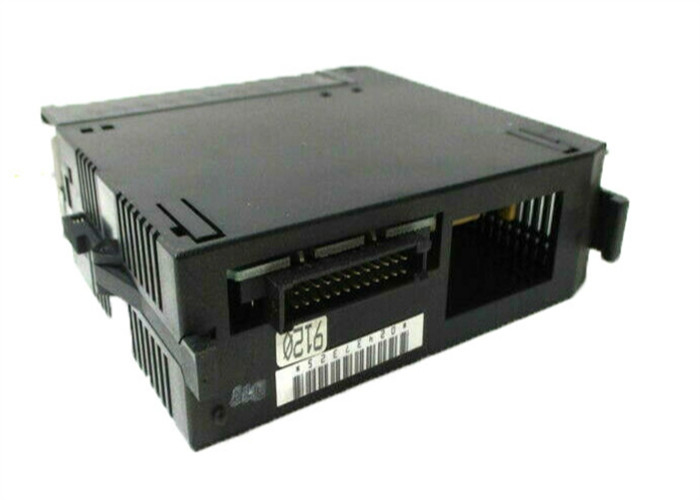

About IC693MDL732

the GE Fanuc IC693MDL732 molule is a positve Iogic I/O module for Series 90-30OLCs.The programmable and versatile Series 90-30 PLCs can be assembled from a wide variety of modular components.The basic PLC components are baseplates,power supplies,CPUs,I/O modules,and cables.The IC693MDL732 module is a discrete output module.GE Fanuc also provides several other types of I/O modules including analog input/output modules and analog/digital combination modules.There are 8 outputs on the IC693MDL732 mpdule.The output current per point can go up to a maximum of 0.5 Amps.The peak output current per common is 2 Amps.The power requirements of the IC693MDL732 module is 50 milliamps of current when all the outputs are on.The module is designed for 5 Volts DC input voltage.

The IC693MDL732 module's inrush current is 4.78 Amps for 10 milliseconds.The output voltage drop is 1 Volt(maximum).The maximum off-state leakage is 1 milliamp.The maximum "on response time is 2 milliseconds and the maximum "off" response time is 2 milliseconds.The rated voltage for the module is 12 to 24 Volt DC.The IC693MDL732 module is designed for positive logic characteristics.The output device is connected between the negative power bus and the output module.The module output characteristics are compatible with a wide range of user-supplied load devices including motor starters,indicators and solenoids.The power for field devices is user-supplied,LED indicators which provide the on and off status of each of the module points are locateda at the top of the module.No fuses are available on the IC693MDL732 module.
