Ge Fanuc IC693MDL751 6-Point I/O Module Brand New In Original

Ge Fanuc IC693MDL751 6-Point I/O Module Brand New In Original

Technical Specifications for IC693MDL751

Brand GE Fanuc
Series Series 90-30
Part Number IC693MDL751
Product type Digital I/O
Compatibility GE Fanuc 90-30 PLCs
Output points 32

Output connector 50-point Honda
Output voltage range 12 to 24 Volts DC
Module current draw 21 milliamps
Output point peak output current 0.3 Amps
Common peak current output 2 Amps
Product Lifecycle Status* Discontinued/Obsolete

About IC693MDL751

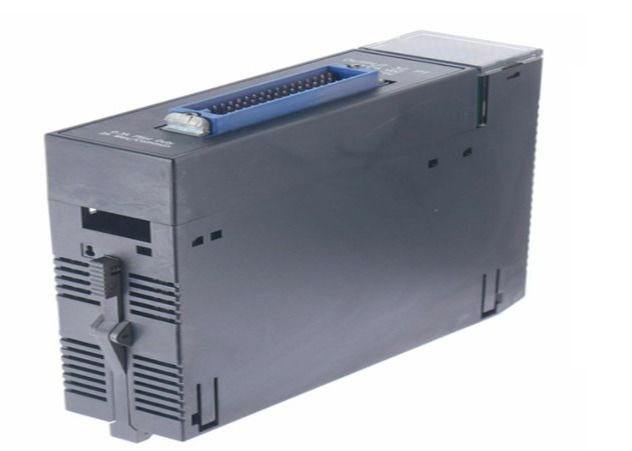

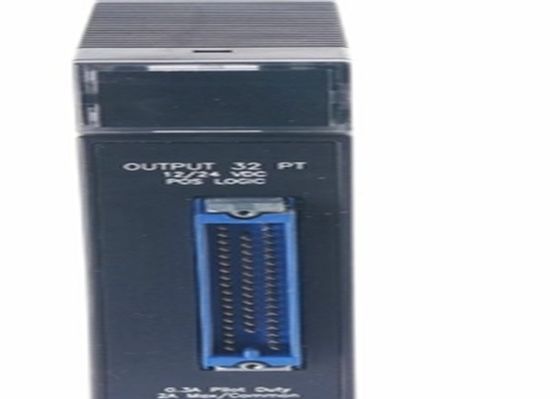

The GE Fanuc IC693MDL751 positive logic output module is a 12/24 Volts DC rated positive logic output module with 32 output points. A 50-pin male Honda connector located on the front of module connects the module outputs to user devices. Wiring to field devices can be made either through the direct method which uses cables with a mating female connector on the module end and tinned wires on the device end or through terminal blocks. For the terminal block method, a 3-foot cable and a 6-foot cable are available for connecting the 50-pin module connector to a DIN-rail-mounted terminal block assembly. These extension cables are wired pin-to-pin. GE Fanuc recommends the use of terminal blocks for connecting field wiring to the 50-pin I/O modules. The use of a connector interface provides a convenient method for terminating the field wiring on the modules.

The IC693MDL751 positive logic output module can be used with the GE Fanuc Series 90-30 PLCs. It provides 4 groups of 8 output points each. The output voltage range is 12 to 24 Volts DC (+20%, 15%). The current drawn by the IC693MDL751 positive logic output module is 21 milliamps when all the outputs are on. The "per output" and "per common" peak current output ratings are 0.3 Amps and 2 Amps, respectively. Up to 1500 Volts of isolation is available between the logic and field sides of the module. The off-state leakage and output voltage drop ratings for the IC693MDL751 positive logic output module are 0.1 milliamps and 0.24 Volts DC, respectively. The IC693MDL751 positive logic output module has positive logic characteristics. The IC693MDL751 positive logic output module is connected between the module output and the negative power bus. Indicators and solenoids are some of the devices which can be used with the IC693MDL751 positive logic output module.
