Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Country Of Origin: | Japan |
|---|---|---|---|
| Condition: | New Original | Warranty: | 1 Years |
| Deliver Time: | 3 -5working Day | Series: | Ovation |
| Highlight: | 460V Ac Servo Motor Drive,1326AB-B515E-21-X51 Industrial Servo Motor,Industrial Servo Motor With 1326 Series |
||

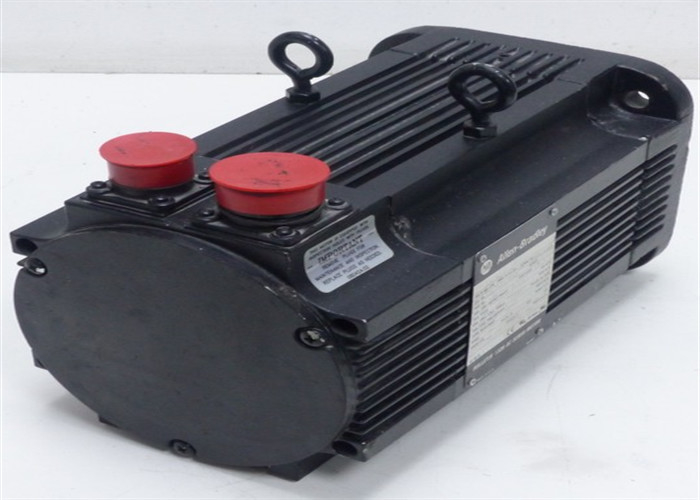

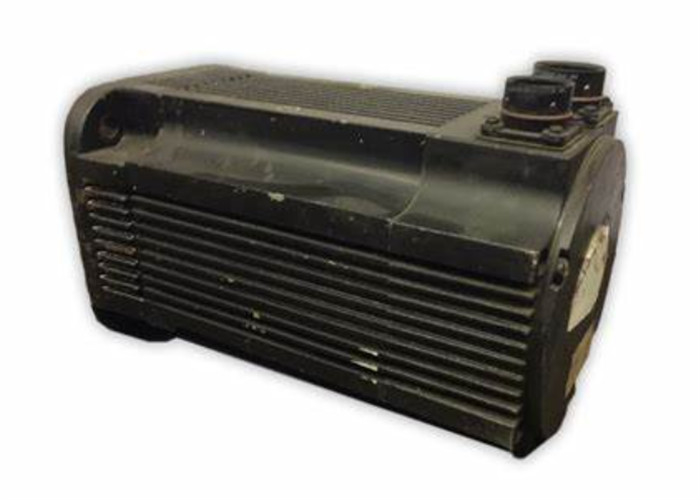

AB 1326AB-B515E-21-X51 SERIES SERVO MOTOR WITH 1326 SERIES
Technical Specifications for 1326AB-B515E-21-X51
Brand Allen-Bradley / Rockwell Automation
Series 1326 Motors
Part Number 1326AB-B515E-21-X51
Description Servo Motor
Voltage 460 Volts AC
Bolt Center 149 millimeters
Magnetic Stack 5
Operating Speed 3000 RPM
Temperature 0-40 degrees Celsius
Stall Torque 7.7 Nm
Rated Output 2.3 kW
Peak stall current 18.3 Amperes
Inductance 28.57 mH
Product Lifecycle Status* Discontinued/Obsolete
About 1326AB-B515E-21-X51
The 1326AB-B515E-21-X51 servo motor is a 460 Volts AC servo motor by Allen-Bradley. It is compact in size and is strongly built in order to withstand harsh industrial environmental conditions. The servo motor comes with encoder mounting adapter, shaft oil seal kits, and a holding brake. It is equipped with a standard resolver-based feedback for precision control. These brushless servo motors have synchronous operation and offer high performance. The servo motor has a specially designed housing which can help reduce the motor length and improve the torque ratings. The 1326AB-B515E-21-X51 servo motor is a 3-phase device and it is certified with various environmental and industrial standards. It has also been listed with UL insulation standards. The servo motor can generate 100% continuous output torque at a stall. The motor has a diameter frame of 149 millimeters and it includes 5 magnetic stacks. The operating speed of the servo motor is 3000 RPM with regular loading conditions.
The 1326AB-B515E-21-X51 servo motor offers a continuous output along with optimal torque performance. The resolver-based feedback makes it easy to make quick decisions and to adjust the servo motor in an industrial setting. The magnets of the servo motor are made up of rare earth metals. The aluminum housing of the servo motor makes it easy to dissipate the heat easily from the servo motor. The 1326AB-B515E-21-X51 servo motor is equipped with an integrated holding brake. The holding brake has a spring mechanism and it gets activated upon the removal of power. The servo motor is also equipped with the standard MIL-spec connectors.
