Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Country Of Origin: | Japan |
|---|---|---|---|
| Condition: | New Original | Warranty: | 1 Years |
| Deliver Time: | 3 -5working Day | Series: | Ovation |
| Price: | Consult Customer Service | Color: | White/Black/Grey |
| High Light: | 1326AB-B720E-21-K7L,AC Servo Motor With Holding Brake,1326AB-B720E-21-K7L AC Servo Motor |
||

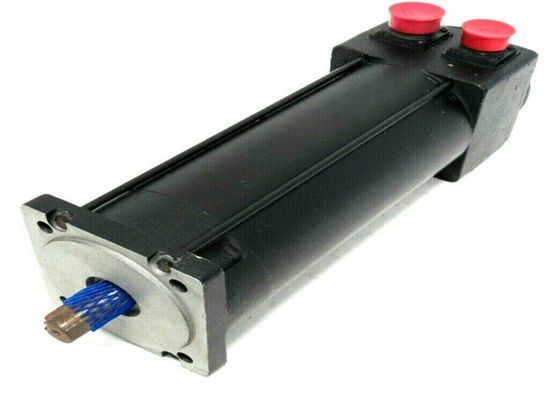

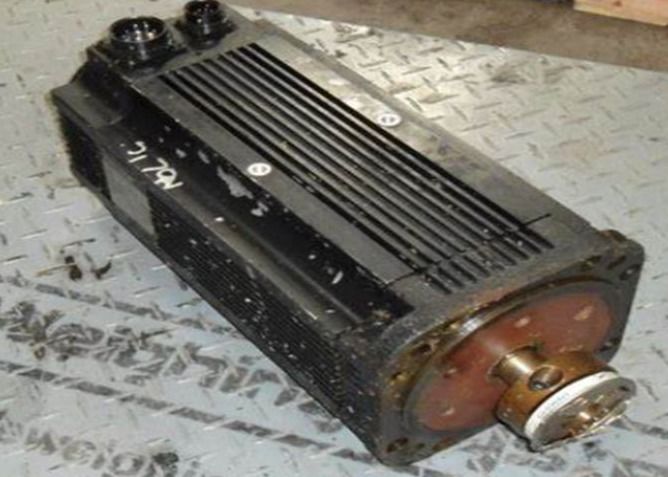

AB 1326AB-B720E-21-K7L AC SERVO MOTOR EQUIPPED WITH A DC HOLDING BRAKE
Technical Specifications for 1326AB-B720E-21-K7L
Manufacturer Rockwell Automation
Flange and Shaft Series IEC Metric Flange with Keyway
Motor Rated Torque 30.9 Nm
Motor Rated Output 6.8 kW
System Continuous Torque 30.9 Nm
System Peak Stall Torque 88.1 Nm
Standard Option 41 Nm Holding Brake w/ 24V DC Coil with IP67 Environmental Rating
Product Lifecycle Status* Discontinued/Obsolete
About 1326AB-B720E-21-K7L
The Allen-Bradley 1326AB-B720E-21-K7L is a Servo Motor that belongs to the 1326AB Torque Plus Series. It is a three-phase, brushless motor with a 194mm millimeter frame diameter and a 215 millimeter bolt center). The voltage rating for this synchronous servo motor is 460 Volts AC. It is particularly engineered to increase constant torque rating and reduce motor length. It helps satisfy the strict demands of high-level motion systems. This efficient servo motor also comes with an IEC Metric Flange with Keyway feature. The 1326AB 460 Volts Torque Plus AC Servo Motors (including the 1326AB-B720E-21-K7L) are UL Listed insulation motors. They reach speeds of up to 7250 RPM and have a relentless torque capability from 2.3 to 53 N-m. The high-performance servo motors under this series are meant to be used with the Allen-Bradley 1394 Motion Control System, Ultra3000 Digital Servo Drives, and Kinetix 6000 Servo Drives. For an improved heat transfer, each of the servo motors features an extruded aluminum housing.
This series also has multiple feedback options including Rugged, brushless resolver and Absolute multi-turn and single-turn encoder. They also feature a three-phase sinusoidal wound stator field and a special flux profile permanent magnets. These features are used for smooth operation and increased servo response. The motor speed rating for 1326AB-B720E-21-K7L is 3500 RPM while its motor output rating is 6.8 kW. It has a 30.9 N-m system of continuous torque and 88.1 N-m system peak stall torque rating. This servo motor also has a holding brake with 24V DC coil and IP67 environmental rating (standard option). The 1326AB-B720E-21-K7L, as well as the other torque plus servo motors, can be installed vertically or at an angle with the shaft elevated or lowered.
The company with domestic and international numerous well-known brands supplier to build have extremely good relations of cooperation, in Japan, South Korea, southeast Asia, Africa, Europe and the United States, and formed a stable and efficient supply network. The agent and the products are widely used in machinery, equipment manufacturing, electric power, metallurgy, petrochemical, automobile manufacturing industry, paper making, chemical industry, medicine and aerospace industries.
OTHER SUPERIOR PRODUCTS of Wisdomlong Technology CO.,LTD
| Yasakawa Motor, Driver SG- |
| Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- |
| Emerson VE-,KJ- |
| Honeywell TC-,TK- |
| GE Modules IC - |
| Yokogawa transmitter EJA- |
