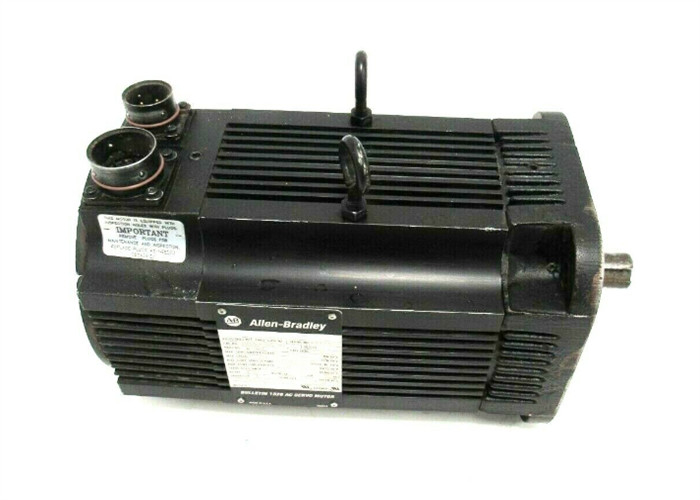

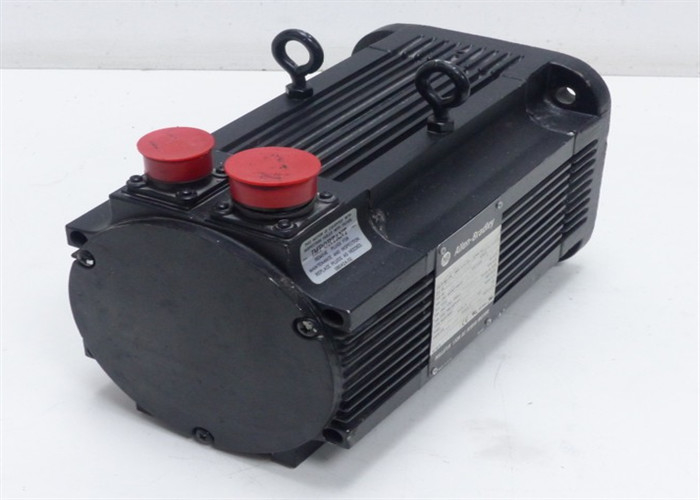

AB 1326AB-B515E-M2K5L SERVO MOTOR OPERATES BRUSHLESS AC SERVO MOTOR
Technical Specifications for 1326AB-B515E-M2K5L
Brand Allen-Bradley / Rockwell Automation
Series 1326 Motors
Part Number 1326AB-B515E-M2K5L
Type of device Brushless AC servo motor
Voltage 380-460 Volts AC
Type of Voltage Three-phase
Frequency 50-60 Hertz
Output current 2.9 Killowatts
Continuout stall current 4.5 to 6.7 Amps
Peak stall current 9.0 to 18.3 Amps
Housing IP 65
Speed 3000 to 4000 RPM
Frame diameter 149 millimeters
Controller 1391 series
Feedback Multi-turn resolution encoder
Product Lifecycle Status* Discontinued/Obsolete
About 1326AB-B515E-M2K5L
The 1326AB-B515E-M2K5L servo motor is a brushless servo motor that is designed and manufactured by Allen-Bradley. It has been introduced as part of the 1326 device series and it is suitable to be used with the Allen-Bradley 1391 series of AC servo controllers. This controller comes with an IP 65 rated enclosure that provides sufficient protection against the entrance of solid particles and against liquids. When it is used with a shaft seal option, there is a high risk of losing protection. The Allen-Bradley 1326AB-B515E-M2K5L brushless servo motor features a sinusoidal wound stator field. This specific model comes with a frame diameter of 149 millimeters. This motor is able to operate at a speed range of 3000 to 4000 RPM.
The Allen-Bradley 1326AB-B515E-M2K5L brushless servo motor includes an additional feature that consists of a holding brake with a 24 Volts DC coil of 120 pounds on an inch. This motor also has multi-turn high-resolution feedback that does not require batteries and provides position feedback within several revolutions. Some of the functions of this brushless servo motor are to provide accurate position feedback, eliminate the need for onboard electronics, and withstand harsh operating conditions such as high temperatures and humidity levels and different levels of shock and vibrations. The Allen-Bradley 1326AB-B515E-M2K5L brushless servo motor operates with a voltage of 380 to 460 Volts AC. The rated speed of the motor is affected by this voltage. It also has a continuous stall current of 4.5 to 6.7 Amps and a peak stall current of 9.0 to 18.3 Amps.
