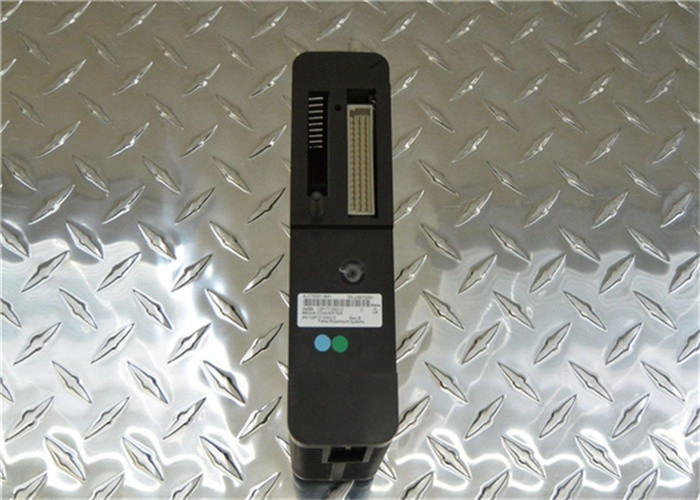

Emerson Redundant Power Supply Module KJ1700X1-BA1 New Original
Product Details:
| Place of Origin: | USA |
| Brand Name: | Emerson |
| Certification: | CE |
| Model Number: | KJ1700X1-BA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | New in Original Box |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Brand: | Emerson | Model Number: | KJ1700X1-BA1 VE6006 |
|---|---|---|---|
| Type: | Power Supply Module | Place Of Origin: | USA |
| Input Voltage: | 4-20mA | Warranty: | 1 Year |
| Highlight: | Emerson redundant power supply module,KJ1700X1-BA1 power supply module,original redundant power supply module |
||
Product Description
Emerson Redundant Power Supply Module KJ1700X1-BA1 New Original
Description:
| Place Of Origin:: | US | Brand Name:: | Emerson |
| Model Number:: | KJ1700X1-BA1 VE6006 | Quality:: | 100% New And Origin |
| Warranty: | 1 Year | Input: | 4-20mA |
| LocalBus Power Rating: | 12VDC.300mA Max | Ambient Temprerature: | 60°C Max |
| High Light: |
analog interface module , diode redundancy module |
||
Quick Details:
- Place of Origin: California,United States
- Model Number: KJ1700X1-BA1 VE6006 12P1710X012
- Brand Name: Emerson
- Quality: 100% new and origin
- Service: one year warranty
- Terms of quote: Ex-Work
Emerson Fisher-Rosemount
KJ1700X1-BA1 VE6006 12P1710X012
System Power Supply
24VDC
Delta V
KJ1700X1-BA1 VE6006 12P1710X012
System Power Supply
24VDC
Delta V
Environmental Specifications
| Ambient Temperature | -40 to 70℃ |
| Shock | 10g ½ Sinewave for 11 msec |
| Vibration |
1mm Peak to Peak from 5 to 16Hz;
0.5g from 16 to 150Hz
|
| Airborne Contaminants |
ISA-S71.04–1985 Airborne
Contaminants Class G3
|
| Relative Humidity | 5 to 95% Non-Condensing IP 20 Rating |
I/O Card Redundancy
Redundant I/O cards are available for critical applications. The same card can be used in simplex or redundant applications.When installed on a two-wide redundant terminal block, the cards are recognized as a redundant pair by the controller. The controller scans each card and determines which card is acting
as the active interface. When a fault is detected, the system automatically switches to the standby I/O card.
DeltaV Control modules reference simplex and redundant I/O channels identically and there is no special configuration required to take advantage of redundancy.
Switchover of a redundant I/O card is completed within two scans of the I/O bus. Make-before-break contacts ensure digital field instruments remain powered and the process is undisturbed. Analog output signals are briefly driven by both cards for < 5 ms during switchover of the card.
Hardware Alerts automatically report hardware integrity errors for both the primary and secondary cards. Any event that causes a switchover is also reported automatically through the system hardware alerts and is logged in the Event Chronicle.
Events that can cause a switchover include.
- Hardware failure within the active card.
- Communications failure between the active card and the controller.
- Detection of a fault in the field wiring
A switchover may also be initiated from the diagnostics explorer, and the health and status of both cards and their channels are available in the diagnostics explorer.
The system automatically commissions a new standby card. In safe areas, failed cards can be replaced under power. In hazardous areas, appropriate installation procedures must be followed.
Ordering Information
Analog Input Cards and Termination Blocks
| Description | Model Number |
| 8 Channels 4-20 mA, HART Standard I/O Termination Block | VE4003S2B1 |
| Redundant Standard I/O Termination Block | VE4033S2B1 |
| Fused I/O Termination Block | VE4003S2B2 |
| 4-wire I/O Termination Block | VE4003S2B3 |
| 16-Pin Mass Termination Block | VE4003S2B4 |
| 24-Pin Mass Termination Block | VE4003S2B5 |
| 16 Channels 4-20 mA, HART Standard I/O Termination Block | VE4003S2B6 |
| 4-wire I/O Termination Block 16 Channels 4-20 ma, HART, Plus Card | VE4003S2B7 |
| 16-Channel 2-Wire AI Terminal Block for Series 2 Plus | VE4003S2B9 |
| 16-Channel 4-Wire AI Terminal Block for Series 2 Plus | VE4003S2B10 |
| Redundant 16-Channel 2- & 4-Wire AI Terminal Block for Series 2 Plus | VE4033S2B10 |
| 8 Channels Thermocouple,mV Standard I/O Termination Block | VE4003S4B1 |
| Cold Junction Compensated (CJC) Termination Block | VE4003S5B1 |
|
Analog Input Card: 8 Channels RTD Resistant Temperature Device (RTD) Termination Block |
VE4003S6B1 |
|
Isolated Input Card
Isolated Input Terminal Block
|
VE4003S7B1 |
| Standard I/O Termination Block | VE4005S2B1 |
| Redundant Standard I/O Termination Block | VE4035S2B1 |
| Fused I/O Termination Block | VE4005S2B2 |
| 16-Pin Mass Termination Block | VE4005S2B3 |
| 16-Channel AO Terminal Block for Series 2 Plus | VE4005S2B4 |
| Redundant 16-Channel AO Terminal Block for Series 2 Plus | VE4035S2B4 |
| Standard I/O Termination Block | VE4001S2T1B1 |
| Fused I/O Termination Block | VE4001S2T1B2 |
| Standard I/O Termination Block | VE4001S2T2B1 |
| Redundant Standard I/O Termination Block | VE4031S2T2B1 |
| Fused I/O Termination Block | VE4001S2T2B2 |
| 16-Pin Mass Termination Block | VE4001S2T1B3 |
| 16-Pin Mass Termination Block | VE4001S2T2B3 |
| Standard Termination Block | VE4001S2T2B4 |
| 40-pin Mass Termination Block | VE4001S2T2B5 |
| Redundant32-Channel DI Terminal Block for Series 2 Plus | VE4031S2T2B6 |
| 40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS) | VE4001S2T2B7 |
| 40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards* | VE4051S2T2B7 |
| Redundant 40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS) | VE4031S2T2B7 |
| Redundant 40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards * | VE4081S2T2B7 |
| Standard I/O Termination Block | VE4001S3T1B1 |
| Fused I/O Termination Block | VE4001S3T1B2 |
| Standard I/O Termination Block | VE4001S3T2B1 |
| Fused I/O Termination Block | VE4001S3T2B2 |
| Discrete 32 Channel Terminal Block | VE4015 |
| Discrete 32-Channel Terminal Block | VE4001S5T2B4 |
| 40-pin Mass Terminal Block | VE4001S5T2B5 |
| Standard I/O Termination Block | VE4002S1T1B1 |
| Fused I/O Termination Block | VE4002S1T1B2 |
| 16-Pin Mass Termination Block | VE4002S1T1B3 |
| Standard I/O Termination Block | VE4002S1T2B1 |
| Redundant Standard I/O Termination Block | VE4032S1T2B1 |
| Fused I/O Termination Block | VE4002S1T2B2 |
| 16-Pin Mass Termination Block | VE4002S1T2B3 |
| 10-Pin Mass Termination Block | VE4002S1T2B4 |
| Standard I/O Termination Block | VE4002S1T2B5 |
| 40-Pin Mass Termination Block | VE4002S1T2B6 |
