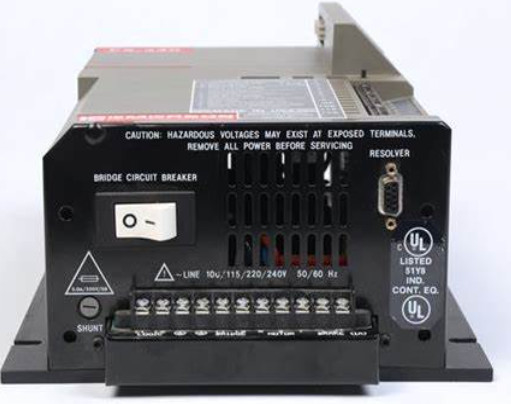

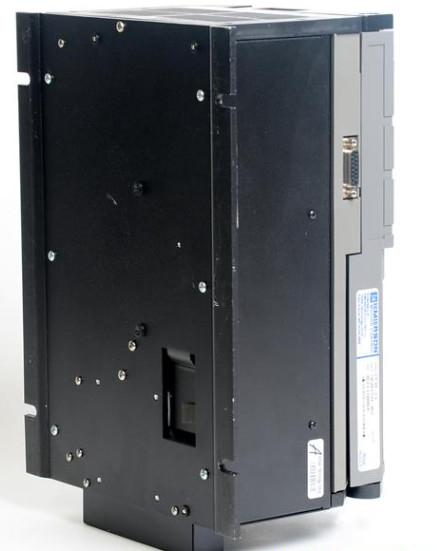

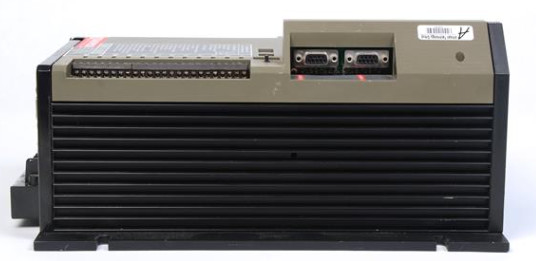

Emerson Brand New FX-340 Power Supply Application Module Original

Emerson Brand New FX-340 Power Supply Application Module Original

Description:

FX-340 Configuration:
• Suggested Line Amps: 15
• RMS Motor Torque: 40 lb-in (4.51 Nm)
• Peak Motor Torque: 80 lb-in (9.04 Nm)
• Maximum Motor Speed: 3000 RPM

Input Voltage: 100/115/220/240V (50/60Hz)

FX-340 Part Number: 960133-01

Features:
8 Input and 4 Output Lines
Linear or Modified Sine Motion Profiles
LED Display for Operating and Diagnostic Status
Auxiliary Logic Supply Provision


The Emerson Motion Control FX Series Brushless Positioning Servo Drive Systems are designed to provide trouble-free solutions for a wide variety of industrial automation applications.

Each FX Positioning Servo Drive System integrates the position control, I/O, feedback, servo amplifier and power supply in one housing.The drive design allows the unit to operate on a wide range of voltage sources without needing expensive isolation transformers.

Models in the FX Drive Series provide up to 1000 lb-in of continuous torque. FX Amplifiers providing 8 to 120 lb-in continuous torque are UL Listed, Canadian UL Listed and CE Certified. These amplifiers are also designed to meet IEC801 specifications for noise immunity.
