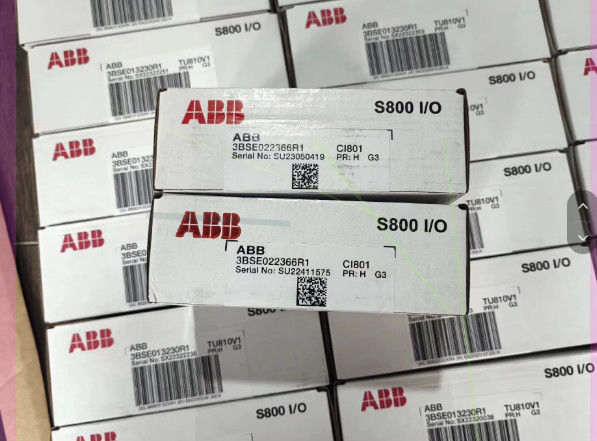

CI801+3BSE022366R1 ABB AC800 I O Fieldbus Communication Interface Module

CI801+3BSE022366R1 ABB AC800 I O Fieldbus Communication Interface Module

CI801 (order number: 3BSE022366R1) is an industrial communication interface module launched by ABB, which is part of the AC 800M control system and S800 I/O system. It is mainly used for data acquisition, transmission, and communication control in the field of industrial automation.

CI801+3BSE022366R1 Overview of Core Information:

• Brand and Model: ABB CI801, Material Code 3BSE022366R1

• System: ABB 800xA Control System/S800 I/O System

• Product Type: Configurable PROFIBUS DP Communication Interface Module (Slave Mode)

• Main purpose: To achieve high-speed data exchange between controllers and devices such as PLCs, DCS, frequency converters, intelligent instruments

CI801+3BSE022366R1 Overview  Key technical parameters:

• Communication protocol: PROFIBUS DP (slave mode)
• Communication speed: 9.6 kbps to 12 Mbps (auto adapt)
• Interface type: RS-485 (compliant with PROFIBUS DP standard)
• Working voltage: 24 V DC (usually powered by the controller backplane)
• Power consumption: ≤ 5 W
• Working temperature: 0 ° C to 60 ° C
• Protection level: IP20 (to be installed inside the control cabinet)
• Data exchange capability: Supports up to 244 bytes of input/output data
• Diagnostic function: equipped with LED indicator lights (power, communication, error)
• Configuration method: configured through ABB 800xA engineering tool, supporting hot configuration operation, HART transmission, OSP (online parameter setting)
• Redundancy support: Supports redundant configuration (needs to be used in pairs and enabled with 220 Ω terminal resistors at both ends of the bus)
• Installation features: Supports hot plugging, plug and play, easy to maintain and upgrade
