EPCIFICATIONS

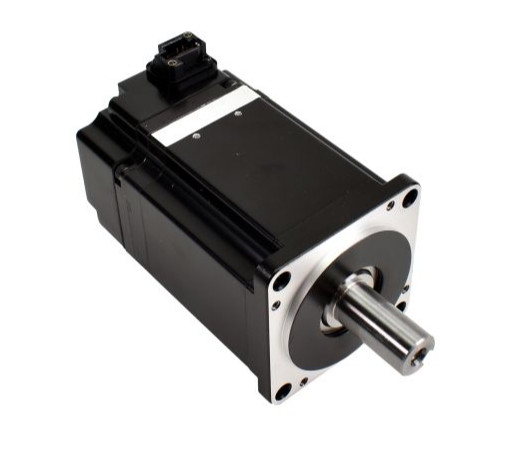

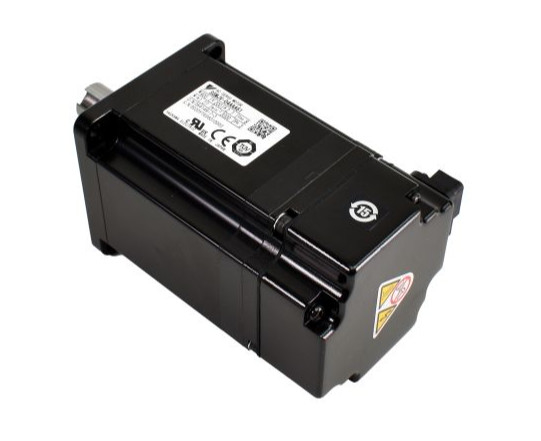

Brand Name : Yaskawa
Model Number : SGMJV-04AAA61
Type : Servo Motor
Frequency : 50/60Hz
Output Power : 50W
Protect Feature : Explosion-proof
Phase : Single-phase
Certification : CE
AC Voltage : 208-230 / 240 V
Place of Origin : Japan
Efficiency : IE 1
output : 400
output : 50
voltage : 240
voltage : 230
phase : 1
power supply : AC
protect feature : Explosion proof
Storage and Transportation
• Do not store or install the product in the following locations.
Failure to observe this caution may result in fire, electric shock, or damage to the equipment.
• Locations subject to direct sunlight
• Locations subject to temperatures outside the range specified in the storage/installation temperature condi-
tions
• Locations subject to humidity outside the range specified in the storage/installation humidity conditions
• Locations subject to condensation as the result of extreme changes in temperature
• Locations subject to corrosive or flammable gases
• Locations subject to dust, salts, or iron dust
• Locations subject to exposure to water, oil, or chemicals
• Locations subject to shock or vibration
• Do not hold the product by the cables, motor shaft, or encoder while transporting it.
Failure to observe this caution may result in injury or malfunction.
• Do not place any load exceeding the limit specified on the packing box.
Failure to observe this caution may result in injury or malfunction.
• If disinfectants or insecticides must be used to treat packing materials such as wooden frames, pal-
lets, or plywood, the packing materials must be treated before the product is packaged, and meth-
ods other than fumigation must be used.
Example: Heat treatment, where materials are kiln-dried to a core temperature of 56
minutes or more.
If the electronic products, which include stand-alone products and products installed in machines, are packed
with fumigated wooden materials, the electrical components may be greatly damaged by the gases or fumes
resulting from the fumigation process. In particular, disinfectants containing halogen, which includes chlo-
rine, fluorine, bromine, or iodine can contribute to the erosion of the capacitors
