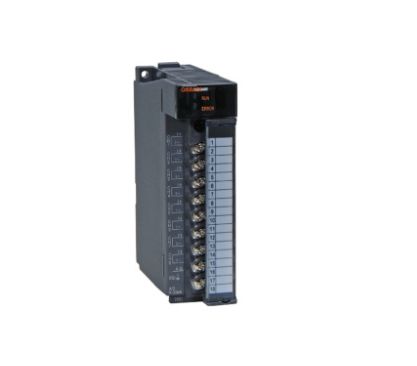

Q68ADI | Mitsubishi Electric | Q Series A/D Input Module
- Manufacturer : Mitsubishi Electric
- Product type :Q Series A/D Input Module
- Analog input : - mA/+20mA
- Resolution : 16 bits binary
- Connection terminal : ALll modules are fitted with a terminal block with 18 screw terminal
- External power consumption (5 VDC) : 640mA
- Dimensions (LxWxH) : 9cm x 2.74cm x 9.8cm
The ideal servo family for motion control.
Fast response, high speed, and high accuracy.
• 6 different designs provide a complete range of servo motors to meet the power, speed and performance required per each application.
• Peak torque 300% of nominal during 3 seconds
• Automatic motor recognition by servo drive
• IP67 and shaft oil seal available • High resolution encoders • Absolute multiturn encoder solution • Compact design and robust construction Ratings
• 230 VAC from 30 W to 1.5k W (rated torque from 0.09 to 4.77 Nm) • 400 VAC from 300 W to 55 kW (rated torque from 0.95 Nm to 350 Nm)
Note: The symbols ABC... show the recommended sequence to select the servo motor and cables Servo motor
A Select motor from families SGMAH, SGMPH, SGMGH, SGMUH, SGMSH, SGMBH using motor tables in next pages.
Servo drive
Note: Choosing Sigma-II drive or XtraDrive affects to the encoder cable needed. B Refer to Sigma-II servo drive or XtraDrive chapter for detailed drive specifications and selection of drive accessories.
