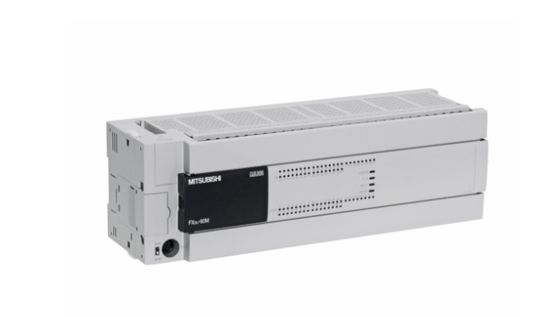

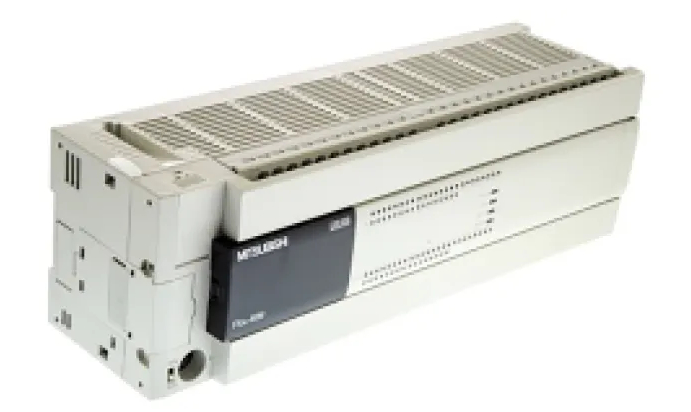

PLC FX3U-80MR/DS MELSEC-F FX3U Series Sequencer CPU
-
| Series |
MELSEC-F SERIES |
| Type |
FX3U |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Program Memory |
64K STEPS |
| Program Memory Unit |
RAM |
| Integrated Digital Inputs |
40 |
| Integrated Digital Outputs |
40 |
| Output Type |
RELAY |
| Local I/O Points |
256 |
| Local + Remote I/O Points |
384 |
| Expandable |
YES |
| Cycle Time LD (ns) |
65 |
| Cycle Time MOV (ns) |
642 |
| USB |
OPTION |
| RS-422 |
1 |
| Power Consumption (W) |
45 |
| Buffer Battery |
YES |
| Protection Class |
IP10 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
The ideal servo family for motion control.
Fast response, high speed, and high accuracy.
• 6 different designs provide a complete range of servo motors to meet the power, speed and performance required per each application.
• Peak torque 300% of nominal during 3 seconds
• Automatic motor recognition by servo drive
• IP67 and shaft oil seal available • High resolution encoders • Absolute multiturn encoder solution • Compact design and robust construction Ratings
• 230 VAC from 30 W to 1.5k W (rated torque from 0.09 to 4.77 Nm) • 400 VAC from 300 W to 55 kW (rated torque from 0.95 Nm to 350 Nm)
Note: The symbols ABC... show the recommended sequence to select the servo motor and cables Servo motor
A Select motor from families SGMAH, SGMPH, SGMGH, SGMUH, SGMSH, SGMBH using motor tables in next pages.
Servo drive
Note: Choosing Sigma-II drive or XtraDrive affects to the encoder cable needed. B Refer to Sigma-II servo drive or XtraDrive chapter for detailed drive specifications and selection of drive accessories.
