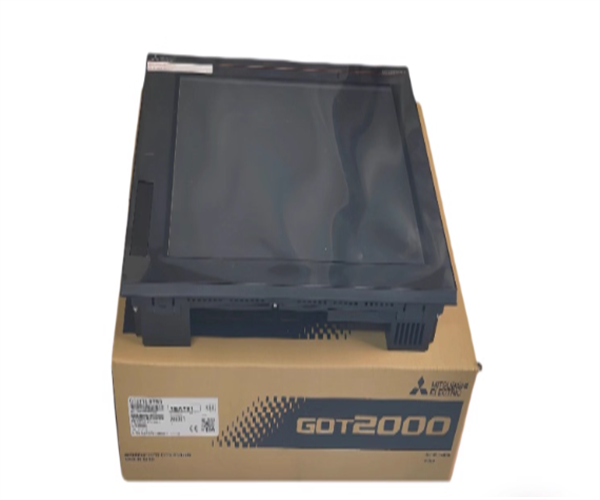

Mitsubishi GT2712-STBD Electric Automation HMI Display

Mitsubishi GT2712-STBD Electric Automation HMI Display

Description of GT2712-STBD

• Mounting type	Panel surface mount	Monitor Screen	[TFT] TFT
  Monitor Screen Size(in)	00034:12.1	Maximum Compatible Resolution	800 x 600
  Color Display	Color (65536 colors)	Main unit frame	Black
  Input Voltage	24 V DC	Ladder editing function	None
  Language switching function	None	Protective structure	Present
  Representative Standard	CE / UL / cUL	Height(mm)	246
  Width(mm)	316	Depth(mm)	52
  Communication Interface	RS-422/485 / RS-232 / Ethernet / SD Memory Card / USB (device) / USB (host)	User memory capacity	(ROM)57MB/(RAM)128MB
  Protective function (environmental resistance) details	IP2X (inside the panel) / IP67F (Front part)	Key Size	Minimum 2 x 2 dots (per key)
  Rear interface connector	Available	Standard	EAC, KC
