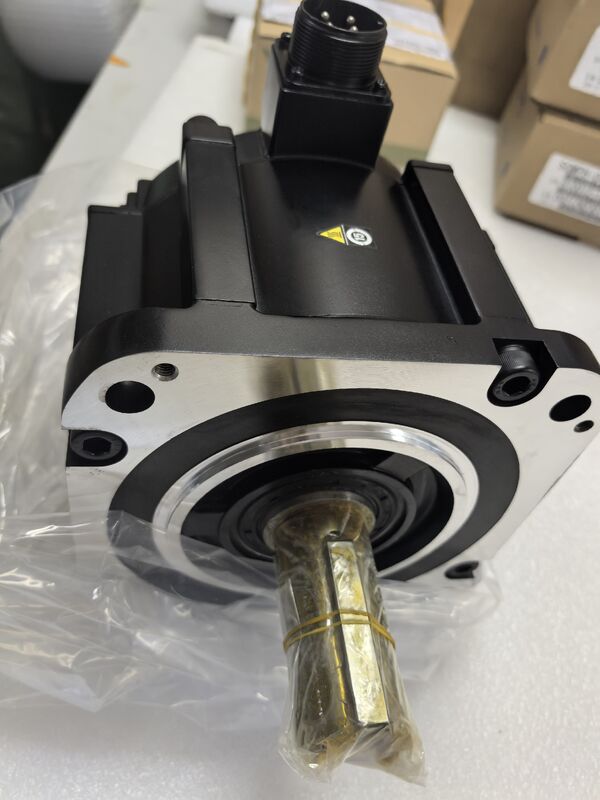

SGM7G-44AFC61 YASKAWA 200V 3PHA 4.4KW Sigma-7AC Servo Motor
The Yaskawa servo motor SGM7G-44AFC61 is a high-performance medium-inertia servo motor from the Sigma-7AC series, with a rated power of 4.4 kW, 24-bit high-resolution encoder installed, high efficiency, low heat generation, downsizing by up to 20%, medium inertia, low speed, high torque suitable for industrial automation applications requiring high power and precision.
SGM7G-44AFC61 Main Features:
- Model: SGM7G-44AFC61
- Brand: Yaskawa
- Input power supply: 200 V
- Rated output: 4.4 kW
- Shaft end: Straight with key and tap
- Encoder resolution: 24 bit
- Encoder type: Incremental
- Options: Without options
- Height: 224 mm
- Width: 180 mm
- Depth: 263 mm
- Weight: 17.5 kg
- Allowable Load Moment of Inertia: 5 Times
- Rated torque: 28.4 Nm
- Instantaneous maximum torque: 71.6 Nm
- Rated Motor Speed: 1500 1/min
- Maximum motor speed: 3000 1/min
- Motor Moment of Inertia: 67.5 x10⁻⁴ kg·m²
- Flange Dimension (LC): 180 mm
- Flange Diameter (LA): 200 mm
- Shaft End Diameter (S): 35 mm
- Shaft End Length (Q): 110 mm
SGM7G Rotary Servo Motor Product Model Reference:
SGM7G-03A7C61 SGM7G-03A7C6C SGM7G-03AFC61 SGM7G-03AFC6C
SGM7G-09A7C61 SGM7G-09A7C6C SGM7G-09AFC61 SGM7G-09AFC6C
SGM7G-13A7C61 SGM7G-13A7C6C SGM7G-13AFC61 SGM7G-13AFC6C
SGM7G-20A7C61 SGM7G-20A7C6C SGM7G-20AFC61 SGM7G-20AFC6C
SGM7G-30A7C61 SGM7G-30A7C6C SGM7G-30AFC61 SGM7G-30AFC6C
SGM7G-44A7C61 SGM7G-44A7C6C SGM7G-44AFC61 SGM7G-44AFC6C
SGM7G-1AA7C61 SGM7G-1AA7C6C SGM7G-1AAFC61 SGM7G-1AAFC6C
SGM7G-1EA7C61 SGM7G-1EA7C6C SGM7G-1EAFC61 SGM7G-1EAFC6C
