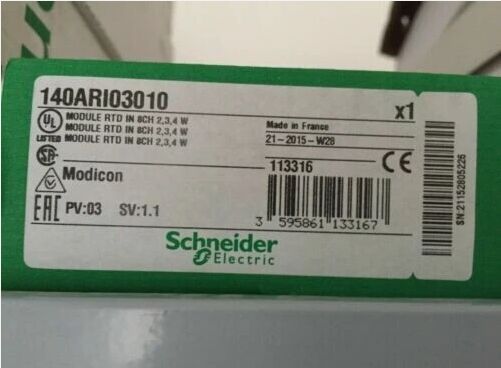

140ARI03010 Schneider Electric 140 series PLC Brand New
The Schneider 140ARI03010 is a module in the Schneider Electric 140 series Programmable Logic Controller (PLC). Specifically, this module serves as an analog input module, designed to receive and process continuous signals from industrial sensors or equipment (such as temperature, pressure, or flow) and convert them into digital signals for PLC processing.
140ARI03010 Main Feature:
- Range of product: Modicon Quantum automation platform
- Product or component type: Analogue input module
- Analogue input number: 8
- Input type: Differential
- Addressing requirement: 9 input words
- Analogue input type :
Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000
Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000
Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200
- Analogue input resolution: 13 bits
- Input impedance: >= 10 MOhm
- Absolute accuracy error: 0.1 °C
- Linearity error:
+/- 0.01 % full scale
+/- 0.5 °C
- Accuracy drift according to temperature:
+/- 0.5 °C at 77 °F (25 °C)
+/- 0.9 °C at 32...140 °F (0...60 °C)
- Isolation between channels and bus:
2500 V DC for 60 s
1780 V AC 47...63 Hz for 60 s
- Isolation between channels: 300 Vrms AC
- Update time:
1200 ms 3 wires
640 ms 2 wires/4 wires
Broken wire
Overtacking scale
- Marking: CE
- Local signalling:
1 LED green bus communication is present (Active)
1 LED red external fault
8 LEDs green channel is turned on
8 LEDs red channel fault
- Bus current requirement: 200 mA
- Power dissipation in W: 1 W
- Module format: Standard
- Product weight: 0.66 lb(US) (0.3 kg)
140ARI03010 Environment
CSA C22.2 No 142
UL 508
CUL
FM Class 1 Division 2
- resistance to electrostatic discharge:
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
- resistance to electromagnetic fields: 9.14 V/yd (10 V/m) 80...1000 MHz conforming to IEC 801-3
- ambient air temperature for operation: 32...140 °F (0...60 °C)
- ambient air temperature for storage: -40...185 °F (-40...85 °C)
- relative humidity: 95 % without condensation
- operating altitude: <= 16404.2 ft (5000 m)
