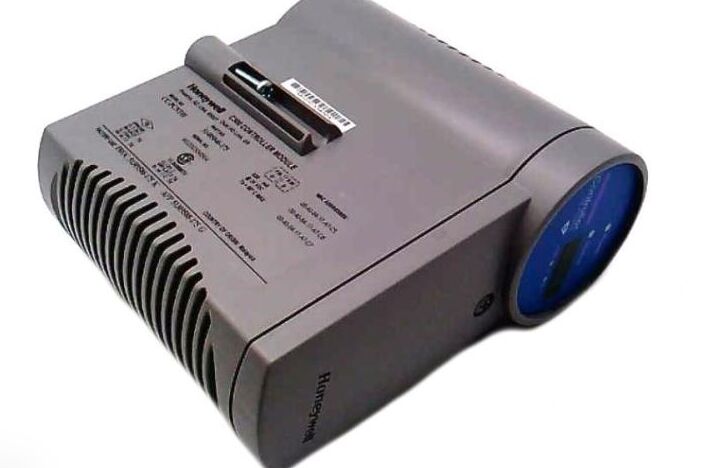

Honeywell CC-PCNT01 C300 Control Processor Module
Overview of CC-PCNT01:
The HONEYWELL CC-PCNT01 (Part No. 51405046-175) is a robust network interface module for Honeywell’s Experion PKS and C300 controller systems. It bridges communication between controllers and I/O Link devices, enabling fast, reliable data transfer. Designed for critical industrial applications, it ensures system redundancy, provides diagnostic indicators, and integrates seamlessly into Honeywell distributed control systems. The module mounts directly onto the Input Output Termination Assembly (IOTA) for easy installation.
Technical Specifications of CC-PCNT01
| Specification |
Details |
| Model Number |
CC-PCNT01 |
| Part Number |
51405046-175 |
| Type |
Network Interface Module (I/O Link Interface) |
| System Compatibility |
Honeywell C300 Controller, Experion PKS |
| Functionality |
Interfaces controller with I/O Link modules, supports high-speed data transfer |
| Communication Protocols |
Proprietary Honeywell I/O Link, redundant communication supported |
| Mounting |
Installed on Input Output Termination Assembly (IOTA) |
| Indicators |
LED status indicators for link activity, module health, and diagnostics |
| Housing |
Plastic |
| Supply Rating |
0.311A @ 24 VDC |
| Operating Temperature |
−20°C to +60°C |
| Humidity Tolerance |
5% to 95% RH, non-condensing |
| Environmental Resistance |
EMI/RFI resistant, vibration-resistant |
| Certifications |
CE marked, UL and CSA compliant |
