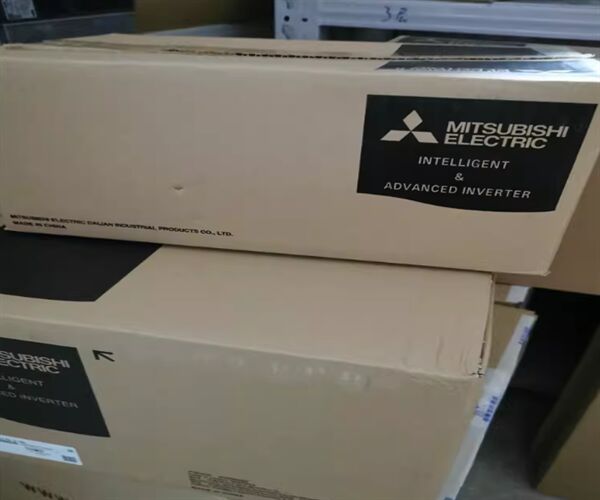

Mitsubishi FR-A840-00038-E2-60 Variable Frequency Drive
Description of FR-A840-00038-E2-60
Mitsubishi FR-A800 E Series AC Inverter for 0.75kW (1HP) 400V 3 Ph motor to 2.5A at high overload, or 1.5kW (2HP) to 3.8A when Fan/Pump rated. Operates in VxF, Sensorless Vector or Full Closed-loop Flux Vector (when the optional Encoder Feedback card is fitted). Simple set-up and ready to run from its default settings.
Size 1 - 150mm Wide x 140mm Deep x 260mm High. IP20 Weight: 2.8kg
Overload - 150% x 60 seconds, 200% x 3 seconds (High Overload)
Overload - 110% x 60 seconds, 120% x 3 seconds (Fan/Pump Rated)
Speed Control Range - 0.5Hz to 400Hz.
Braking – None (option via external brake unit).
Terminal CA Equipped Model.
3 Analogue Inputs, 12 Digital Inputs, 2 Analogue Outputs, 5 Digital Outputs, 2 Relay Contact Sets, integrated PLC functions and RS485 Modbus-RTU,
Includes Built-in Ethernet Board (FR-A8ETH).
Control Logic - Source Version.
Circuit Board Coated (Conforming to IEC60721-3-3 3C2/3S2).
'Safe Torque Off' (STO) function to SIL 2.
Specification of FR-A840-00038-E2-60
| Specification |
Value |
| Series |
FR-A SERIES |
| Type |
FR-A800-E INVERTER |
| Minimum Rated Voltage (V) |
380 |
| Min. Permissible Voltage (V) |
323 |
| Maximum Rated Voltage (V) |
500 |
| Max. Permissible Voltage (V) |
550 |
| Current Type |
AC |
| Phases |
3 |
| Rated Output Current ND (A) |
2,5 |
| Rated Motor Capacity ND (kW) |
0,75 |
| Frequency Range (Hz) |
0,2–590 |
| Control Method |
VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type |
INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) |
100 |
| Integrated EMC Filter |
YES |
| Safe Torque Off (STO) |
YES |
| Regenerative (4Q) |
NO |
| Integrated DC Choke |
NO |
| Display |
FR-DU08 |
| Display Type |
5 DIGITS LED (12 SEGMENT) |
| PLC Function |
YES |
| Program Memory |
6K |
| Program Memory Unit |
STEPS |
| Integrated Digital Inputs |
12 |
| Digital Outputs (Transistor) |
5 |
| Digital Outputs (Relay) |
2 |
| Integrated Analogue Inputs |
3 |
| Integrated Analogue Outputs |
2 |
| IO Type of Terminal Block |
SPRING CLAMP |
| Expandable |
YES |
| RS-485 |
OPTIONAL |
| USB |
1+1 MINI |
| Ethernet Port |
1 |
| Built-In Network |
CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC |
| Leakage Current (mA) |
35(DELTA) / 2(STAR) |
| Power Loss ND (W) |
55 |
| Protection Class |
IP20 |
| Depth (mm) |
140 |
| Weight (kg) |
2,8 |
| Width (mm) |
150 |
| Height (mm) |
260 |
