Redundant Power Supply Module
>

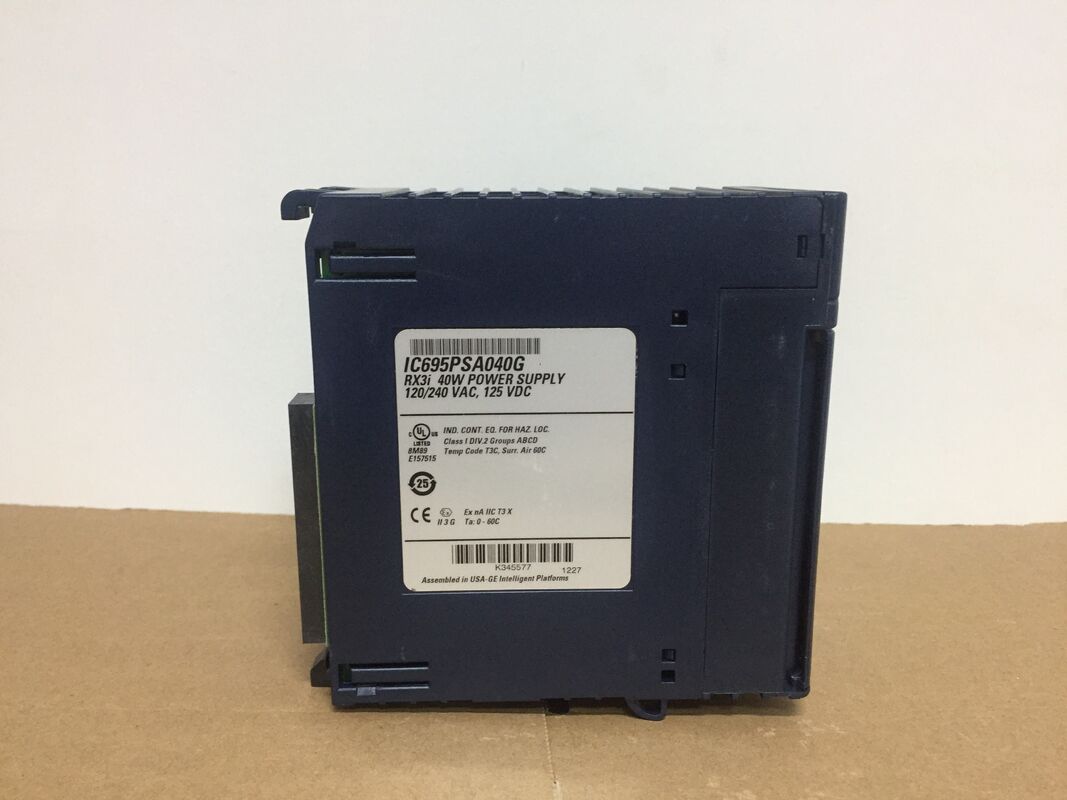

GE PACSystems RX3i power supply IC695PSA040 40Watt supply 120/240VAC or 125VDC

GE PACSystems RX3i power supply IC695PSA040 40Watt supply 120/240VAC or 125VDC

Product Details:
Place of Origin: Japan
Brand Name: GE
Model Number: IC695PSA040
Detail Information
Place of Origin:
Japan
Brand Name:
GE
Model Number:
IC695PSA040
Brand:
GE
Model:
IC695PSA040
System:
PAC
Type:
Power Supply
Volatge:
120/240VAC Or 125VDC
Category:
PLCs
Product:
Discontinued
Power:
40Watt
Trading Information
Minimum Order Quantity:
1
Price:
negotiable
Packaging Details:
New in original box
Delivery Time:
2-3 work days
Payment Terms:
T/T, Western Union
Supply Ability:
100
Product Description

GE PACSystems RX3i power supply IC695PSA040 40Watt supply 120/240VAC or 125VDC







SPECIFITIONS

Nominal Rated Voltage
Input Voltage Range
120/240 VAC or 125 VDC
85 to 264 VAC
100 to 300 VDC
Input Power
(Maximum with Full Load) 70 Watts maximum
Inrush Current 4 Amps, 250 milliseconds maximum *
Output Power 40 Watts maximum total
5.1 VDC = 30 Watts maximum
3.3 VDC = 30 Watts maximum
The maximum total output power available depends on the surrounding air temperature, as
shown.
Output Voltage 24 VDC: 19.2 VDC to 28.8 VDC
5.1 VDC: 5.0 VDC to 5.2 VDC (5.1 VDC nominal)
3.3 VDC: 3.1 VDC to 3.5 VDC (3.3 VDC nominal)
Output Current 24 VDC: 0 to 1.6 Amps
5.1 VDC: 0 to 6 Amps
3.3 VDC: 0 to 9 Amps
Isolation (input to backplane): 250 VAC continuous; 1500 VAC for 1 minute
Ripple (all outputs) 150 mV
Noise (all outputs) 150 mV
Ride-through time 20 ms. This is the length of time the Power Supply maintains valid outputs if the power source
is interrupted
Wiring Terminals Each terminal accepts one 14 AWG to 22 AWG wire.
Current per Terminal 6 Amps
Number of Daisy-Chained PSA040
Supplies
Up to 4



Introduction
The PACSystems RX3i power supply IC695PSA040 is a 40-Watt supply that operates from an input voltage source in the
range of 85 to 264 VAC or 100 VDC to 300 VDC.
This power supply provides three outputs:
+5.1 VDC output.
+24 VDC relay output that can be used to power circuits on Output Relay modules.
+3.3 VDC. This output is used internally by RX3i modules with IC695 catalog numbers.

Power Supply version IC695PSA040C and earlier may cause equipment damage if inadvertently installed in the same backplane as another RX3i power supply.

If the number of modules required exceeds the capacity of the Power Supply, the additional modules must be installed in Expansion or Remote backplanes or power supplies capable of increased capacity mode operation must be used.

The Power Supply indicates when an internal fault occurs so the CPU can detect loss of power or log the appropriate fault code.



Revision History
Module Revision Date Description
IC695PSA040M Nov 2020 Manufacturing update. No change to fit, form, or function.
IC695PSA040L Sep 2019
Following Emerson’s acquisition of this product, changes have been made to apply
appropriate branding and registration of the product with required certification
agencies. No changes to material, process, form, fit or functionality.
IC695PSA040K Jan 2016 Updated modules are RoHS converted product with applicable exemptions. No change
in form-fit-functionality
IC695PSA040J May 2013 Increases the margin of the 5V and 3.3V under voltage detectors to prevent PS faults
during power-up.
IC695PSA040H Aug. 2012 Resolves an issue with powering up under light loads.
IC695PSA040G Jun. 2011
Hardware modification improves radiated RF susceptibility and removes the
requirement to install control systems that use this product in a grounded metal
enclosure to meet the EU EMC Directive.
IC695PSA040F Sep. 2006
Hardware modification. Previous versions of this Power Supply occasionally failed to
power up when installed in a 16-Slot Universal Backplane, IC695CHS016. This update
resolves the issue.
IC695PSA040E Mar. 2006
The D version of this Power Supply (IC695PSA040D) incorrectly reported that it was a
PSA140 power supply, causing a Configuration Mismatch error.
The E version and versions prior to D report their identification correctly.
IC695PSA040A Oct. 2005 Initial release
