L22BA452BG17G61 NUMATICS Servo Motor Encoder 24VDC 50(KHz) 0.45kW
L22BA452BG17G61 Description

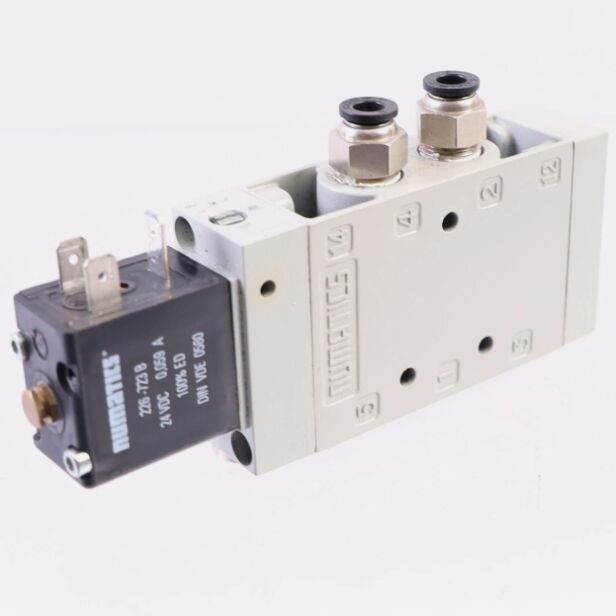

The L22BA452BG17G61 is a single solenoid-pilot, spring-return pneumatic directional control valve from Numatics (now part of Emerson/Aventics) L2 Series. It features a 4/2 (5-port, 2-position) spool-and-sleeve configuration, designed for factory automation and motion control. Converting electrical signals to pneumatic actuation, it controls double-acting cylinders via CC-Link or hardwired signals. With a compact 1" body width and inline/manifold mounting capability, it suits dense control cabinets and multi-station manifolds (2–12 stations). Rated for high flow and broad pressure ranges, it ensures reliable performance in harsh industrial environments.
L22BA452BG17G61 Key Features
- 4/2 High-Flow Control: 5-port, 2-position spool-and-sleeve design for double-acting cylinder actuation.
- 7olenoid-Pilot & Spring Return: Single 24 VDC solenoid pilot with spring return; flush locking override for manual intervention.
- Space-Saving Form Factor: 1" narrow body for dense inline or manifold mounting (2–12 stations).
- Broad Pressure Range: Main valve: 28" Hg vacuum to 150 PSIG (10 bar); pilot: 14.5–150 PSIG (1–10 bar).
- High Flow Capacity: Up to 79 SCFM @ 80 PSIG (1674 NI/min @ 6 bar) for fast cylinder response.
- 1/4" G Porting: Universal thread for easy integration with pneumatic lines.
- Low Power Coil: 24 VDC, 1.42 W efficient coil with DIN plug-in connection for quick replacement.
- Unlubricated Service: Compatible with unlubricated air systems, reducing maintenance.
- Integrated Diagnostics: Onboard LED indicators for power/actuation status; visible manifold mounting for visibility.
- Robust Construction: Resists vibration, shock, and EMI for reliable long-term operation.
L22BA452BG17G61 Materials & Applications
Materials
- Body: Zinc-aluminum die-cast for strength, corrosion resistance, and thermal stability.
- Spool/Sleeve: Hardened steel/steel alloy for wear resistance and precise sealing.
- Seals: Nitrile rubber (NBR) for air compatibility, low friction, and long service life.
- Terminals/Connectors: Nickel-plated brass screw terminals + DIN 43650 solenoid connector for secure, corrosion-proof wiring.
- Housing/Enclosure: Glass-reinforced engineering plastic (UL94 V-0) for flame resistance and mechanical durability.
- Mounting Hardware: Stainless steel screws for manifold attachment, ensuring vibration resistance.
Typical Applications
- Factory Automation: Assembly lines, packaging machinery, and conveying systems for cylinder control.
- Machine Tools & Robotics: CNC machining centers, robotic arms, and clamping stations.
- Material Handling: Palletizers, lifts, and sorting systems for high-cycle pneumatic actuation.
- Process & General Industry: Food & beverage, pharmaceutical, and chemical plants requiring unlubricated air and broad pressure tolerance.
- Automotive Manufacturing: Body shop automation, engine assembly, and press lines.
L22BA452BG17G61 Important Parameters
| Parameter |
Specification |
| Part Number |
L22BA452BG17G61 |
| Brand |
Numatics (Emerson/Aventics) |
| Product Type |
L2 Series 4/2 Solenoid-Pilot Directional Control Valve |
| Valve Configuration |
4-way, 2-position (5-port), spool-and-sleeve |
| Actuation |
Single solenoid-pilot + spring return; flush locking override (manual) |
| Port Size |
1/4" G (thread) |
| Flow Capacity |
79 SCFM @ 80 PSIG (1674 NI/min @ 6 bar); Cv factor ~1.70 |
| Main Operating Pressure |
28" Hg vacuum to 150 PSIG (1–10 bar) |
| Pilot Pressure (Internal/External) |
14.5–150 PSIG (1–10 bar) |
| Solenoid Coil |
24 VDC, 1.42 W; DIN 43650 plug-in connector |
| Ambient Temperature |
-23 °C to +66 °C (-10 °F to +115 °F) |
| Media |
Compressed air (lubricated or unlubricated) |
| Mounting |
Inline or manifold (2–12 stations); common supply/exhaust options |
| Body Material |
Zinc-aluminum die-cast |
| Seal Material |
Nitrile (NBR) |
| Weight |
Approx. 0.86 lbs (390 g) |
| Dimensions (W×H×D) |
Approx. 2.89 × 5.99 × 2.00" (73.4 × 152.2 × 50.8 mm) |
| Certifications |
CE, RoHS; compliant with ISO 12238 (pneumatic valves) |
| Compliance |
NEMA 0 (indoor cabinet); IP20 protection |
