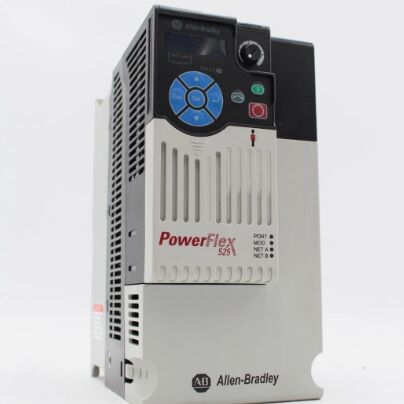

25B-D017N114 Allen-Bradley Variable Frequency Inverter 3~400 V AC 50Hz/60Hz

25B-D017N114 Allen-Bradley Variable Frequency Inverter 3~400 V AC 50Hz/60Hz

25B-D017N114 Description

25B-D017N114 Key Features

• Embedded Communication & Safety: Built‑in EtherNet/IP for real‑time network control, USB programming port for fast configuration, and Safe Torque‑Off (STO, SIL 2 / PL d) for safe motor shutdown without disconnecting main power.
• Modular & Compact Design: Removable control core allows parallel installation and software setup; slim frame C size supports dense panel/DIN‑rail mounting without derating.
• High‑Performance Motor Control: Advanced sensorless vector control (SLVC) and V/f control for precise speed/torque regulation; output frequency up to 500 Hz for high‑speed applications.
• Integrated EMC Filter: On‑board RFI filter reduces electromagnetic interference, simplifying installation and compliance with global EMC standards.
• Wide Ambient & Thermal Performance: Operates up to 50 °C (122 °F) without derating, up to 70 °C (158 °F) with current derating; built‑in cooling fan for sustained full‑load operation.
• Comprehensive Protection: Overcurrent, overvoltage, undervoltage, overload, overheat, short‑circuit, and motor stall protection; automatic fault diagnostics and history logging.
• Flexible Control Modes: Supports position, speed, torque control; compatible with standard PLC pulse/digital I/O and network control.
• Global Certifications: CE, cULus, RoHS, C‑Tick, ATEX, and marine certifications for worldwide industrial deployment.

25B-D017N114 Materials & Applications

Materials

• Enclosure & Frame: High‑strength, flame‑retardant UL94 V‑0 thermoplastic, impact‑resistant and heat‑stable for industrial environments.
• Heat Sink: Extruded aluminum alloy with optimized fin design for efficient heat dissipation, ensuring stable operation under continuous load.
• Power Components: High‑voltage IGBT modules, low‑ESR electrolytic capacitors, and high‑grade copper busbars for low loss and long service life.
• Terminals: Tin‑plated copper screw terminals for secure power/signal connections, anti‑oxidation and high current‑carrying capacity.
• Control Board: Industrial‑grade PCB with conformal coating, resistant to dust, humidity, and vibration in harsh factory conditions.

Typical Applications

• Material Handling: Conveyors, sorters, palletizers, and automated guided vehicles (AGVs).
• Pump & Fan Systems: Centrifugal pumps, fans, blowers, and HVAC systems for energy‑efficient flow control.
• Industrial Machinery: Mixers, grinders, extruders, packaging machines, and small machine tools.
• Food & Beverage: Filling, capping, labeling, and processing equipment requiring precise speed control.
• Water & Wastewater: Booster pumps, aeration systems, and filtration equipment.
• Textile & Printing: Yarn feeders, printing presses, and web tension control systems.

25B-D017N114 Important Parameters
