20 Bit Yaskawa Ac Servo Motor Encoder , Yaskawa Absolute Encoder UTTAH B20FL

Large Image :  20 Bit Yaskawa Ac Servo Motor Encoder , Yaskawa Absolute Encoder UTTAH B20FL

Product Details:

Brand Name: Yaskawa
Model Number: UTTAH-B20FL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Place Of Origin: Japan Brand: Yaskawa
Model: UTTAH-B20FL Product Name: Encoder
Apply: SGMGV-44A3A6C Resoultion: 20bit
Category: Internal Encoders Name Of Series: DG
High Light:

ac motor encoder

,

absolute rotary encoder

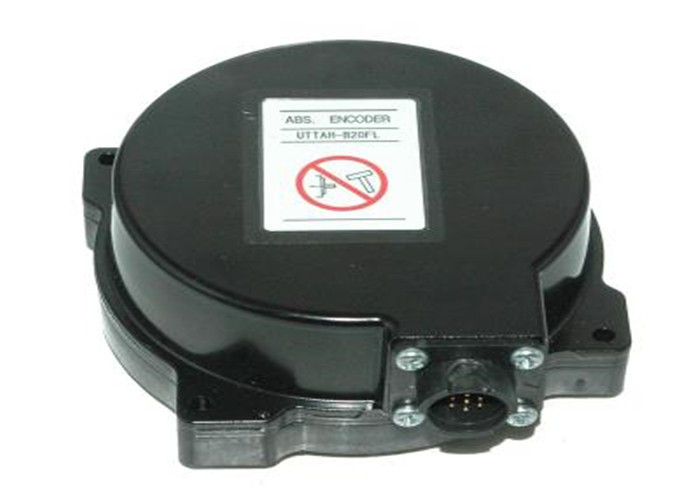

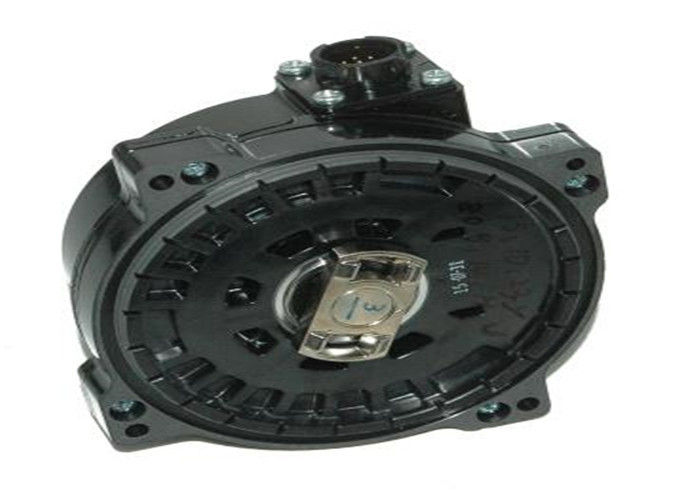

 Servo Motor Encoder Yaskawa Absolute Encoder UTTAH-B20FL For SGMGV-44A3A6C 20 Bit


QUICK DETAILS

  1. Brand :Yaskawa
  2. Model :UTTAH-B20FL
  3. Place of Origin :Japan


DESCRIPTION

  • Servo Motor Encoder
  • Yaskawa Electric
  • Absolute Encoder



SPECIFITIONS

Model Number UTTAH-B20FL
Category Internal encoders
Manufacturer Yaskawa
Series UT series Encoders for AC Servo and Spindle motors
Type Absolute Encoder
Name of series DG
Resolution 20 Bit




What is a differential line output?
Differential output refers to the fact that each channel has a complement channel, i.e. Channel A and Channel A not. A differential line driver is used to help increase noise immunity. It also allows you to sink or source more current than a Totem-pole output. A differential line driver will work with either a sinking or sourcing circuit. It can also help in increasing the distance that a signal is transmitted.


What is an open collector output?
An open collector output is an NPN transistor. An NPN transistor allows the sinking of current to common. It can be thought of as a switch that allows the circuit to be connected to common after the load. This means that a source is required for the output to work. A supply through a load must be connected to the output, otherwise the NPN transistor is simply creating a path to common, (i.e., a dry contact). Therefore, if you were to measure the voltage at the output of an open collector that is not connected to some supply, you would not see a change in voltage. The voltage should be measured across the output load to determine if the open collector is working properly


What is a Totem-pole output?
A Totem-pole output, sometimes referred to as a push-pull output, is a bipolar output with active devices that are controlled such that, as the resistance of one increases, the resistance of the other decreases; so that according to the relative states of the two active devices, the output voltage can swing between levels approaching the two supply voltages. The term ‘totem-pole output,’ as commonly used, does not include three-state outputs.


What is a quadrature output?
Quadrature output refers to the use of two output channels (A and B) separated by 90 degrees of phase shift. The fact that the signals are 90 degrees out of phase allows a controller to determine the direction of rotation, i.e. if channel A leads B then the encoder is spinning one direction, if B leads A then the other. See the channel timing charts for a graphical view of this concept. Remember that each channel provides the rated PPR for each encoder. For example: with a 100 PPR encoder, there are 100 pulses per revolution from channel A, and 100 pulses from channel B. This is a total of 200 pulses if your controller can count both channels (X2 logic). Some controllers can count the rising edge and the falling edge of each pulse (on both channels) thereby increasing the effective resolution by a factor of four (X4 logic), and counting 400 edges per revolution on a 100 PPR quadrature encoder. This doesn’t mean that there are 400 pulses coming from a 100 PPR quadrature encoder.








SIMILAR PRODUCTS
UTAAH-B20FL UTMAE-B12BE5U UTMAH-B12BBFA
UTMAE-B12BE5W UTMAE-B12DA UTMAH-B12BD11
UTMAE-B12DA4 UTMAE-B12DA-KIT UTMAH-B12BD5D
UTMAH-B12AD UTMAH-B12AD3A UTMAH-B12BDMB2
UTMAH-B12AF UTMAH-B12AF11 UTMAH-B12BDYR10
UTMAH-B12AF12 UTMAH-B12AFFJ UTMAH-B12BDYR11








OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-
