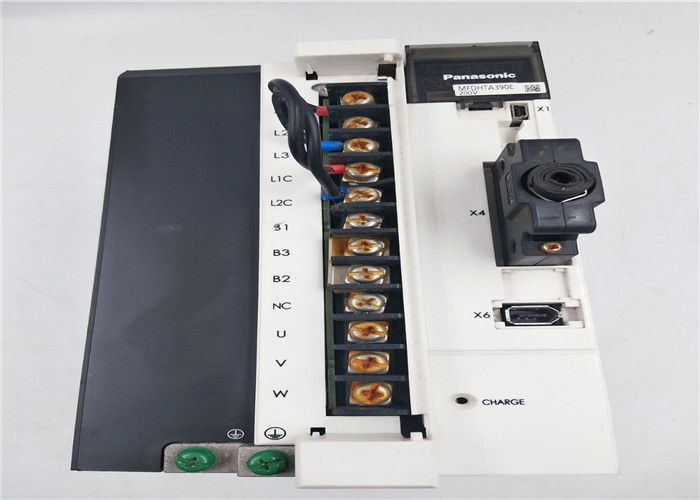

MFDHTA390E Panasonic Industrial Servo Drives 200 ~ 240VAC 240V 5kW 2.3 KHz

MFDHTA390E  Description

MFDHTA390E Features

• Dual-Axis Integrated Design:​ A single drive unit controls two independent servo axes, dramatically saving panel space, reducing wiring complexity, and lowering total system costs for coordinated two-axis applications.
• Wide Power Supply Voltage (200-480VAC):​ Accepts a broad 3-phase input voltage, allowing for flexible deployment worldwide and in facilities with high line voltage, eliminating the need for a step-down transformer in many cases.
• High Power & Performance:​ Delivers 3.0kW of continuous power per axis, with high overload capacity for handling peak loads, rapid acceleration, and driving large motors efficiently.
• Advanced Network & Synchronization:​ Supports high-speed real-time networks like EtherCAT​ and MECHATROLINK-4, enabling precise multi-axis synchronization, easy integration with PLCs, and central control of complex motion sequences.
• Sophisticated Control & Tuning:​ Incorporates advanced control algorithms, including Real Auto Gain Tuning, adaptive vibration suppression, and model-based control, ensuring optimal servo performance, stability, and high positioning accuracy for diverse mechanical systems.
• Intelligent Energy Saving:​ Features an integrated regenerative resistor and intelligent power management functions to minimize energy consumption and heat generation, improving overall system efficiency.

MFDHTA390E Material & Primary Applications

• Materials:​ The chassis is constructed from heavy-gauge, coated steel for robust EMI shielding and structural strength. It features high-efficiency aluminum heat sinks, industrial-grade multi-layer PCBs, and high-current power semiconductors (IGBTs). Connectors are durable, high-contact-grade materials.
• Primary Applications:
  • Large Industrial Robots and Gantry Systems
  • High-Power Material Handling & Logistics Systems
  • Large CNC Machining Centers (for auxiliary axes)
  • Printing, Packaging, and Converting Machinery
  • Large-scale Automated Assembly and Test Lines
  • Semiconductor/LCD Panel Manufacturing Equipment

MFDHTA390E Important Parameters
