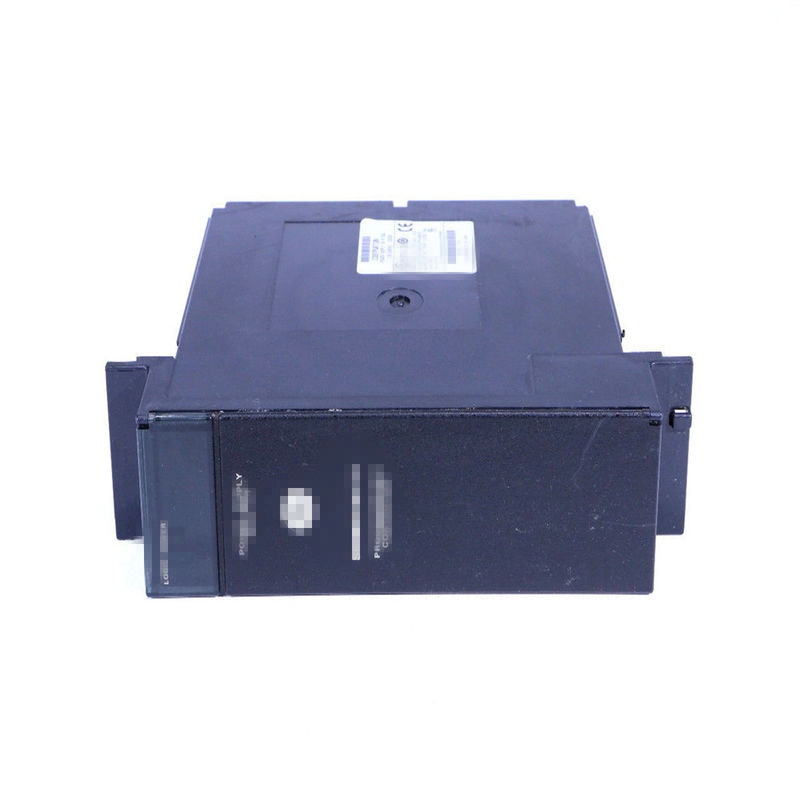

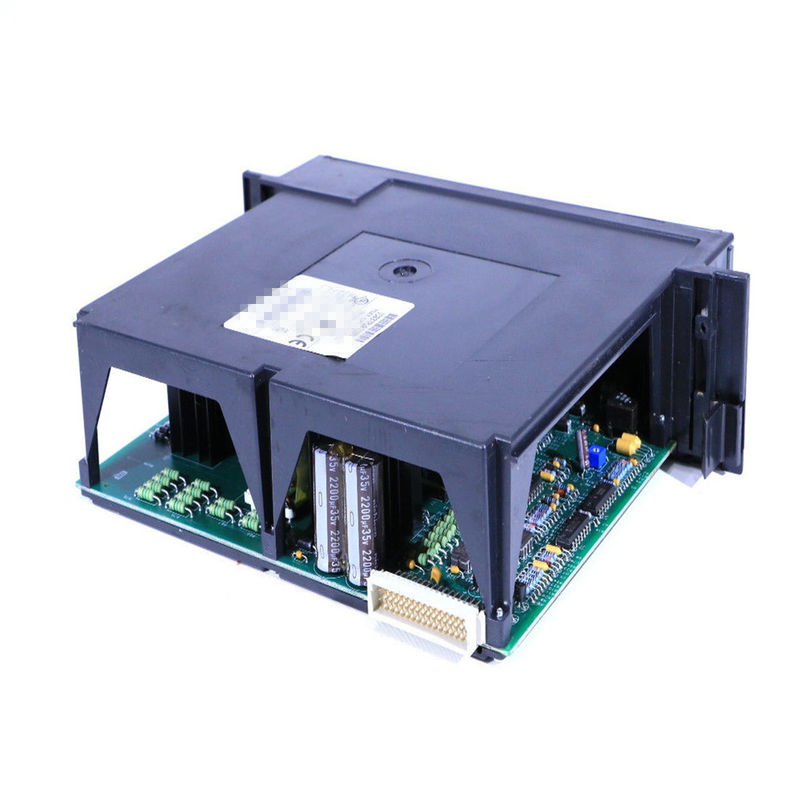

GE Fanuc Output Module IC200ALG320E IC200ALG320 Original and brand new
Product Describe:
| |
IC200ALG320 |
IC200ALG321 |
IC200ALG322 |
| Product Name |
VersaMax Analog Output Module,
12 Bit Current, 4 Channel |
VersaMax Analog Output Module,
12 Bit 0-10V Voltage, 4 Channel |
VersaMax Analog Output Module,
12 Bit ±10V Voltage, 4 Channel |
| Lifecycle Status |
Active |
Active |
Active |
| Output Range |
4-20 mA |
0-10 VDC |
±10 VDC |
| Number of Channels |
4 |
4 |
4 |
| External Power Supply |
Range: 18-30 VDC
including ripple;
Current consumption:
160 mA maximum
including load current |
Range: 18-30 VDC
including ripple;
Current consumption:
125 mA maximum |
Range: 18-30 VDC
including ripple;
Current consumption:
125 mA maximum |
| Resolution |
4 uA = 8 counts |
2 .5 mV = 8 counts |
5 mV = 16 counts |
| Update Rate |
0 .3 ms maximum |
0 .3 ms maximum |
0 .3 ms maximum |
| Accuracy at 25°C |
±0 .3% typical of full scale,
±0 .5% maximum of full scale |
±0 .3% typical of full scale,
±0 .5% maximum of full scale |
±0 .3% typical of full scale,
±0 .5% maximum of full scale |
5V Backplane Current
Consumption (mA) |
50 maximum |
50 maximum |
50 maximum |
3 .3V Backplane Current
Consumption (mA) |
N/A |
N/A |
N/A |
| LED Indicators |
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present . |
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present . |
FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present . |
| Dimensions (W x H x D) |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
50 mm (1 .956 in), not including the
height of the carrier or the
mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
50 mm (1 .956 in), not including the
height of the carrier or the
mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x
50 mm (1 .956 in), not including the
height of the carrier or the
mating connectors |
