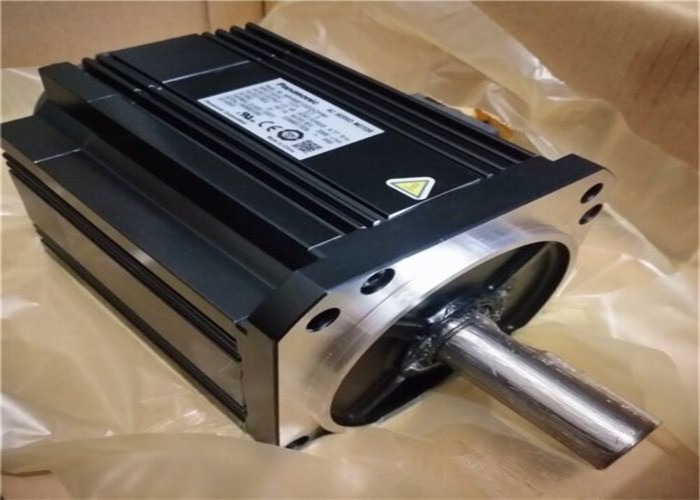

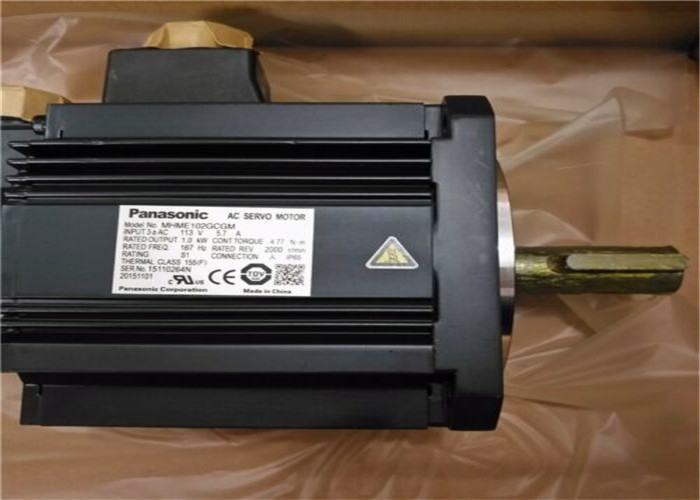

MHME102GCGM Industrial Servo Motor Panasonic PP CP 3 Phase 1000W 3000rpm

Panasonic MHME102GCGM  AC Servo Motor 3phase 1000W 50/60Hz 3000rpm

Description :

Input power: Main circuit Single/3-phase 200 to 240V +10% -15% 50/60 Hz
Input power: Control circuit Single phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback 23-bit (8388608 resolution) absolute encoder, 7-wire serial
About Encoder feedback * When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings).
Parallel I/O connector:
Control signal Input Each 8 input can be assigned by the parameter.
Parallel I/O connector:
Control signal Output Each 3 input can be assigned by the parameter.
Parallel I/O connector:
Analog signal Output 2 outputs (Analog monitor: 2 output)
Parallel I/O connector:
Pulse signal Output Line driver output for encoder pulses (A/B phase signal).
Communication function RTEX, USB
Communication function: USB USB interface to connect to computers for parameter setting or status monitoring.
Communication function: RTEX Communication for transmission of a real-time operation command, the parameter setting, or the status monitoring.
Regeneration Built-in regenerative resistor (external resistor is also enabled.)
Control mode Semi-closed control
Position control: Profile position control [PP], Cyclic position control [CP]
Velocity control: Cyclic velocity control [CV]
Torque control: Cyclic torque control [CT]
* Switch PP/CP/CV/CT mode according to the RTEX communication command.

Specifications
