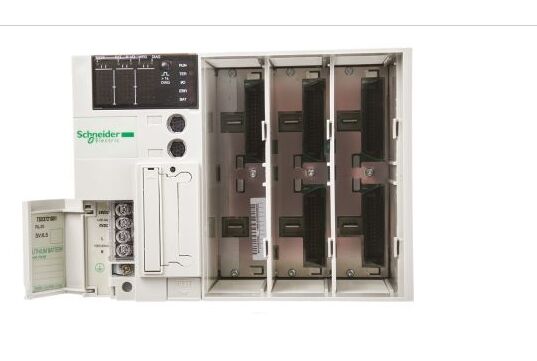

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001

Name: Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: TSX3721001
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	TSX3721001

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

TSX3721001

Brand:

Schneider

Model:

TSX3721001

Series:

TSX

Product Name:

Modular Base Controller

Micro:

TSX

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider TSX Micro 37 PLC

Modular base PLC controller

TSX3721001 programmable logic controller

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001

Specifications

Main
Range of product	Modicon TSX Micro automation platform
Product or component type	Modular base controller
Primary voltage	100...240 V 90…264 V AC
Input current	2 mA 60 A
Immunity to microbreaks	20 ms
Output current	0.5 A

Complementary
Number of slots	3
Integrated connection type	1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock	With
Memory description	Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage
Maximum size of object areas	128 %KWi constant words 256 %Mi 1 %MWi internal words
Execution time per instruction	0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card
Execution time for 1 Kinstruction	5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure	16 event tasks 1 master task 1 fast task
System overhead	1.6 ms for master task
Protection type	Overload protection Short-circuit
Total useful secondary power	16 W
Electromagnetic compatibility	Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2

Environment
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation 5…95 % without condensation for operation
Operating altitude	0...2000 m
Width	341.4 mm
Height	151 mm
Depth	152 mm
Net weight	1.72 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.0 cm
Package 1 Width	17.0 cm
Package 1 Length	24.0 cm
Package 1 Weight	1.824 kg

Contractual warranty
Warranty (in months)	18

TSX3721001 is a model of the TSX MICRO 37 series PLC produced by Schneider Electric. It is a small-sized programmable logic controller suitable for industrial automation control scenarios. This device supports various input and output configurations and has good environmental adaptability, often used in compact control systems. Its related technical documents include specification sheets, installation dimension diagrams, and environmental data, facilitating engineering deployment and maintenance. Additionally, refurbished versions are available on the market, offering relatively high cost performance.

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001 0

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001 1

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001 2

Schneider TSX Micro 37 21/22 PLC configurations Modular base controller TSX3721001 3
