Schneider Modicon Premium series Analog input module TSXAEY414

Name: Schneider Modicon Premium series Analog input module TSXAEY414
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: TSXAEY414
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Model Number:	TSXAEY414

Detail Information

Place of Origin:

France

Brand Name:

Schneider

Model Number:

TSXAEY414

Brand:

Schneider

Model:

TSXAEY414

Series:

TSX

Product Name:

Analog Input Module

Micro:

TSX

Condition:

New

Lead Time:

In Stock

Country Of Origin:

France

Highlight:

High Light

Highlight:

Schneider Modicon Premium analog input module

TSXAEY414 PLC analog module

Modicon Premium TSXAEY414 with warranty

Trading Information

Minimum Order Quantity:

Price:

negotiable

Packaging Details:

New in original box

Delivery Time:

2-3 work days

Payment Terms:

TT West Union

Supply Ability:

100

Product Description

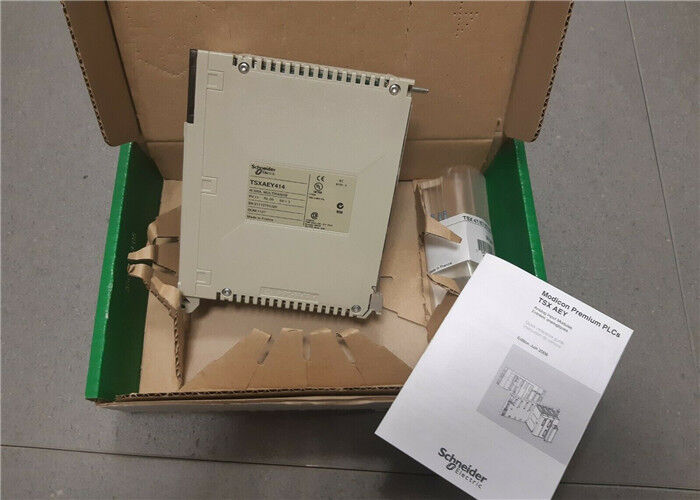

Schneider Modicon Premium series Analog input module TSXAEY414

Description

TSXAEY414 is a Modicon Premium series analog input module launched by Schneider Electric. It features 4 high-level input channels, supports 16-bit resolution, and enables high-precision data acquisition. The rated working current of this module is 660mA under 5VDC, and it is suitable for industrial automation environments. Currently, this model has been discontinued and only provides after-sales service support. Its design aims to meet the strict requirements for signal accuracy and stability, and is commonly used in process control and monitoring systems.

Specifications

Main
Range of Product	Modicon Premium Automation platform
Product or Component Type	Analog input module
Input level	Low level
Analogue input number	4
Analogue input type	Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V Thermocouple thermocouple B Thermocouple thermocouple E Thermocouple thermocouple J Thermocouple thermocouple K Thermocouple thermocouple L Thermocouple thermocouple N Thermocouple thermocouple R Thermocouple thermocouple S Thermocouple thermocouple T Thermocouple thermocouple U Resistor 0...3850 Ohm Resistor 0...400 Ohm Temperature probe Ni 1000 2 wires Temperature probe Ni 1000 4 wires Temperature probe Pt 100 2 wires Temperature probe Pt 100 4 wires Temperature probe Pt 1000 2 wires Temperature probe Pt 1000 4 wires Voltage - 13...63 mV Voltage +/- 5 V
Analog/digital conversion	16 bits

Complementary
Nominal read cycle time	550 ms
Measurement error	0.13 % of full scale 0...400 Ohm 25 °C 0.16 % of full scale 0...10 V 25 °C 0.19 % of full scale - 13...63 mV 25 °C 0.22 % of full scale 0...3850 Ohm 25 °C 0.22 % of full scale 0...5 V 25 °C 0.27 % of full scale +/- 10 V 25 °C 0.27 % of full scale +/- 5 V 25 °C 0.27 % of full scale 0...400 Ohm 0...60 °C 0.27 % of full scale 1...5 V 25 °C 0.39 % of full scale 0...10 V 0...60 °C 0.44 % of full scale - 13...63 mV 0...60 °C 0.45 % of full scale 0...5 V 0...60 °C 0.45 % of full scale 4...20 mA 25 °C 0.48 % of full scale 0...3850 Ohm 0...60 °C 0.5 % of full scale +/- 10 V 0...60 °C 0.5 % of full scale +/- 5 V 0...60 °C 0.56 % of full scale 1...5 V 0...60 °C 0.86 % of full scale 4...20 mA 0...60 °C 1.5 °C thermocouple B external 25 °C 1.5 °C thermocouple E external 25 °C 1.5 °C thermocouple T external 25 °C 1.5 °C thermocouple U external 25 °C 1.8 °C thermocouple J external 25 °C 10.5 °C thermocouple K internal 0...60 °C 11 °C thermocouple R internal 0...60 °C 12 °C thermocouple S internal 0...60 °C 2 °C thermocouple L external 25 °C 2 °C thermocouple N external 25 °C 2.3 °C thermocouple K external 25 °C 3.1 °C thermocouple U external 0...60 °C 3.2 °C thermocouple E external 0...60 °C 3.2 °C thermocouple R external 25 °C 3.2 °C thermocouple T external 0...60 °C 3.4 °C thermocouple S external 25 °C 3.5 °C thermocouple B external 0...60 °C 3.5 °C thermocouple B internal 25 °C 3.8 °C thermocouple J external 0...60 °C 4.1 °C thermocouple L external 0...60 °C 4.3 °C thermocouple N external 0...60 °C 4.7 °C thermocouple K external 0...60 °C 5.4 °C thermocouple U internal 25 °C 6 °C thermocouple N internal 25 °C 6 °C thermocouple R internal 25 °C 6.1 °C thermocouple E internal 25 °C 6.6 °C thermocouple S internal 25 °C 6.6 °C thermocouple T internal 25 °C 7.3 °C thermocouple J internal 25 °C 7.3 °C thermocouple U internal 0...60 °C 7.5 °C thermocouple L internal 25 °C 7.7 °C thermocouple R external 0...60 °C 7.8 °C thermocouple K internal 25 °C 8.1 °C thermocouple B internal 0...60 °C 8.1 °C thermocouple E internal 0...60 °C 8.5 °C thermocouple S external 0...60 °C 8.7 °C thermocouple N internal 0...60 °C 8.8 °C thermocouple T internal 0...60 °C 9.5 °C thermocouple J internal 0...60 °C 9.8 °C thermocouple L internal 0...60 °C 1 °C Ni 1000 25 °C 1.2 °C Pt 100 25 °C 2 °C Ni 1000 0...60 °C 2.4 °C Pt 100 0...60 °C 2.5 °C Pt 1000 25 °C 5 °C Pt 1000 0...60 °C
Isolation between channels and bus	1780 Vrms
Isolation between channels and ground	1780 Vrms
Isolation between channels	2830 Vrms
Common mode between channels	415 V AC or 200 V DC
Common mode between channels and earth	240 V AC or 110 V DC
Input overvoltage protection	-15…15 V at state 0 250 Ohm -30…30 V at state 1 250 Ohm
Electrical connection	Screw terminal block
Overcurrent	-30…30 mA at state 1 250 kOhm
Marking	CE
Current consumption	660 mA 5 V DC
Module format	Standard
Net Weight	0.71 lb(US) (0.32 kg)

Environment
Standards	DIN 43760 IEC 584 IEC 751 DIN 43710 NFC 42-330 IEC 1131
Product Certifications	DNV BV ABS RMRS RINA GL LR
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-13…158 °F (-25…70 °C)
Relative Humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
Operating altitude	0...6561.68 ft (0...2000 m)
Protective treatment	TC
IP Degree of Protection	IP20
Pollution degree	2

Ordering and shipping details
Category	22558-TSX PREMIUM, ATRIUM & PL7 PRO
Discount Schedule	PC22
GTIN	3389110756951
Returnability	No
Country of origin	FR

Packing Units
Unit Type of Package 1	PCE
Nbr. of units in pkg.	1
Package 1 Height	2.2 in (5.5 cm)
Package 1 Width	7.09 in (18.0 cm)
Package 1 Length	10.2 in (26.0 cm)
Package weight(Lbs)	16.05 oz (455.0 g)

Contractual warranty
Warranty (in months)	18

Schneider Modicon Premium series Analog input module TSXAEY414 0

Schneider Modicon Premium series Analog input module TSXAEY414 1

Compatible Products

Yaskawa Motor, Driver SG- Mitsubishi Motor HC-, HA-
Westinghouse Modules 1C-, 5X- Emerson VE-, KJ-
Honeywell TC-, TK- Fanuc Motor A0-
Rosemount Transmitter 3051- Yokogawa Transmitter EJA-

Contact Information

Person: Anna

Email: wisdomlongkeji@163.com

Phone: +0086-13534205279

Tags:

Schneider Modicon Premium series Analog input module TSXAEY414

High Light

Highlight:

Schneider Modicon Premium analog input module

TSXAEY414 PLC analog module

Modicon Premium TSXAEY414 with warranty

industrial automation using plc,

ethernet plc controllers,

industrial programmable controller
